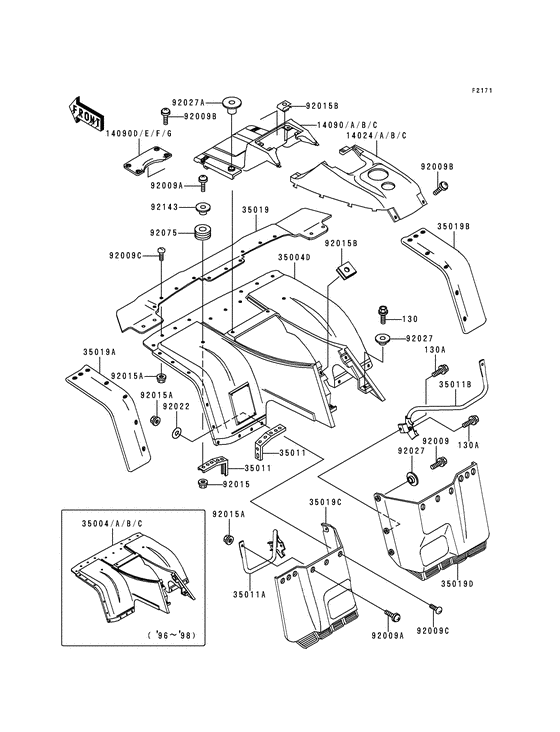

Front fender Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B6
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130C0616
BOLT-FLANGED
Bolt-flanged,6x16; |
130C0616 |
— | ||
| replacements | |||||
|
130
|
130
130AB0616 BOLT-FLANGEDBolt-flanged,6x16; |
130AB0616 |
from US $1 |
||
|
130
|
130
130BB0616 BOLT-FLANGED,6X16Bolt-flanged,6x16; |
130BB0616 |
from US $0.95 |
||
|
130A
|
130A
130J0618 BOLT-FLANGED,6X18Bolt-flanged,6x18; |
130J0618 |
from US $1.19 |
||
| replacement | |||||
|
130A
|
130A
130BB0618 BOLT-FLANGED,6X18Bolt-flanged,6x18; |
130BB0618 |
from US $1.11 |
||
|
14024B
|
14024B
14024-1657-6A COVER,FRONT FENDER,RRCover,front fender,rr,h.green; |
14024-1657-6A |
from US $44.06 |
||
|
14090B
|
14090B
14090-1143-6A COVER,FRONT FENDER,FRCover,front fender,fr,h.green; |
14090-1143-6A |
US $57.42 |
||
|
14090F
|
14090F
14090-1156-6A COVER,FRONT CAP,H.GRECover,front cap,h.green; |
14090-1156-6A |
US $28.98 |
||
|
35004A
|
35004A
35004-1293-6A FENDER-FRONT,H.GREENFender-front,h.green; |
35004-1293-6A |
US $212.80 |
||
| replacement | |||||
|
35004A
|
35004A
35004-1381-6A FENDER-FRONT,H.GREENFender-front,h.green; |
35004-1381-6A |
from US $247.21 |
||
|
35011
|
35011
35011-1420 STAY,FRONT FENDER,UPPStay,front fender,upp; |
35011-1420 |
from US $14.93 |
||
|
35011A
|
35011A
35011-1600 STAY,FR FENDER,LH,LWRStay,fr fender,lh,lwr flap; |
35011-1600 |
from US $29.09 |
||
|
35011B
|
35011B
35011-1601 STAY,FR FENDER,RH,LWRStay,fr fender,rh,lwr flap; |
35011-1601 |
from US $29.09 |
||
|
35019
|
35019
35019-1291-6Z
FLAP,FR,BLACK
Flap,fr,black; |
35019-1291-6Z |
— | ||
|
35019A
|
35019A
35019-1292-6Z
FLAP,FR,SIDE,LH,BLACK
Flap,fr,side,lh,black; |
35019-1292-6Z |
— | ||
|
35019B
|
35019B
35019-1293-6Z FLAP,FR,SIDE,RH,BLACKFlap,fr,side,rh,black; |
35019-1293-6Z |
from US $42.61 |
||
|
35019C
|
35019C
35019-1294-6Z FLAP,FR,LWR,LH,BLACKFlap,fr,lwr,lh,black; |
35019-1294-6Z |
from US $76.36 |
||
|
35019D
|
35019D
35019-1295-6Z FLAP,FR,LWR,RH,BLACKFlap,fr,lwr,rh,black; |
35019-1295-6Z |
from US $70.67 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92009A
|
92009A
92009-1256 SCREW,6X22,BLACKScrew,6x22,black; |
92009-1256 |
from US $1.74 |
||
|
92009B
|
92009B
92009-1288
SCREW
Screw,6x14; |
92009-1288 |
— | ||
| replacements | |||||
|
92009B
|
92009B
92009-1662 SCREWScrew,6x14; |
92009-1662 |
from US $2.53 |
||
|
92009B
|
92009B
92172-0004 SCREW,6X14Screw,6x14; |
92172-0004 |
from US $1.27 |
||
|
92009C
|
92009C
92009-1621
SCREW
Screw,6x16; |
92009-1621 |
— | ||
| replacement | |||||
|
92009C
|
92009C
92009-1694 SCREWScrew,6x16; |
92009-1694 |
from US $5.13 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMNut,flanged,6mm,black; |
92015-1233 |
from US $3.90 |
||
|
92015A
|
92015A
92015-1675 NUTNut,lock,flanged,6mm; |
92015-1675 |
from US $2.69 |
||
|
92015B
|
92015B
92015-1678 NUTNut,clamp,6mm; |
92015-1678 |
from US $3.17 |
||
|
92022
|
92022
92022-1093 WASHER,6.5X16X1.0Washer,6.5x16x1.0; |
92022-1093 |
from US $1.43 |
||
|
92027
|
92027
92027-122 COLLARCollar,l=4.7; |
92027-122 |
from US $5.07 |
||
|
92027A
|
92027A
92027-1929 COLLAR |
92027-1929 |
from US $3.80 |
||
|
92075
|
92075
92075-222 DAMPER RUBBER,CASEDamper,case; |
92075-222 |
from US $4.12 |
||
|
92143
|
92143
92143-1016 COLLAR,L=9.6Collar,l=9.6; |
92143-1016 |
from US $3.64 |
||
