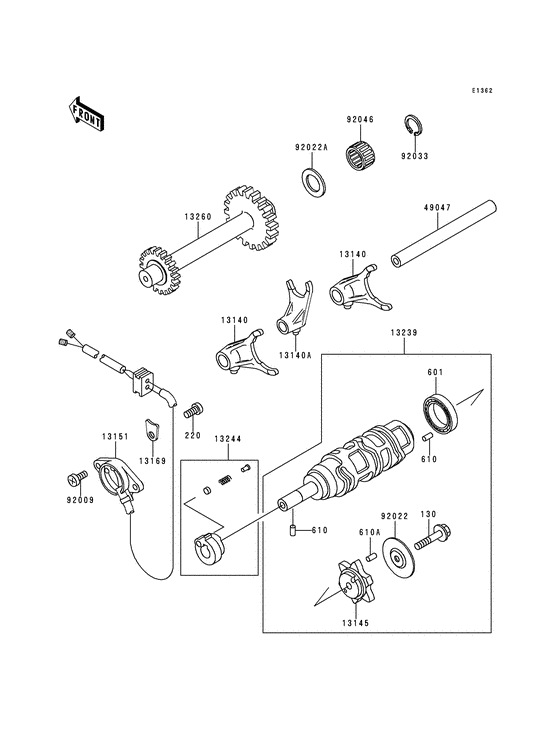

Gear change drum/shift fork Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B6
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0635
BOLT,FLANGED,6X35
Bolt-flanged,6x35; |
130G0635 |
— | ||
| replacement | |||||
|
130
|
130
130BA0635 BOLT,FLANGED,6X35Bolt-flanged,6x35; |
130BA0635 |
from US $1.11 |
||
|
220
|
220
220B0610 SCREW-PAN HEAD,6X10Screw-pan-cros,6x10; |
220B0610 |
US $1.27 |
||
| replacement | |||||
|
220
|
220
220AA0610 SCREW-PAN HEAD,6X10Screw-pan-cros,6x10; |
220AA0610 |
from US $0.95 |
||
|
601
|
601
601A6005 BEARING-BALL |
601A6005 |
from US $10.93 |
||
|
610
|
610
610A0406 PIN-DOWEL,4X6Roller,4x6; |
610A0406 |
from US $0.79 |
||
|
610A
|
610A
610A0412 PIN DOWEL 4X12Roller,4x12; |
610A0412 |
from US $7.04 |
||
|
13140
|
13140
13140-1210 FORK-SHIFT |
13140-1210 |
US $78.79 |
||
|
13140A
|
13140A
13140-1211
FORK-SHIFT
|
13140-1211 |
— | ||
|
13145
|
13145
13145-1064 CAM-CHANGE DRUM |
13145-1064 |
from US $30.01 |
||
|
13151
|
13151
13151-1077 SWITCH-COMP |
13151-1077 |
US $52.49 |
||
|
13169
|
13169
13169-1788 PLATE,HARNESSPlate,harness; |
13169-1788 |
from US $3.43 |
||
|
13239
|
13239
13239-1170 DRUM-ASSY-CHANGE |
13239-1170 |
US $174.01 |
||
|
13244
|
13244
13244-1055 STOPPER-ASSY,RELERSEStopper-assy,reverse; |
13244-1055 |
US $24.19 |
||
| replacement | |||||
|
13244
|
13244
13244-1056 STOPPER-ASSY,RELERSEStopper-assy,reverse; |
13244-1056 |
from US $17.11 |
||
|
13260
|
13260
13260-1220 GEAR,REVERSE,22T&30TGear,reverse,22t&30t; |
13260-1220 |
US $199.75 |
||
|
49047
|
49047
49047-1085 ROD-SHIFT |
49047-1085 |
US $21.78 |
||
|
92009
|
92009
92009-1341 SCREW,5X14Screw,5x14; |
92009-1341 |
from US $3.73 |
||
|
92022
|
92022
92022-1886 WASHER,CHANGE DRUMWasher,change drum; |
92022-1886 |
from US $4.82 |
||
|
92022A
|
92022A
92022-255 WASHER,17.3X28X1.0Washer,17.3x28x1; |
92022-255 |
from US $5.39 |
||
|
92033
|
92033
92033-032 CIRCLIP,16MM |
92033-032 |
from US $3.01 |
||
|
92046
|
92046
92046-1184 BEARING-NEEDLEBearing-needle,k17x23x13.8; |
92046-1184 |
from US $20 |
||
