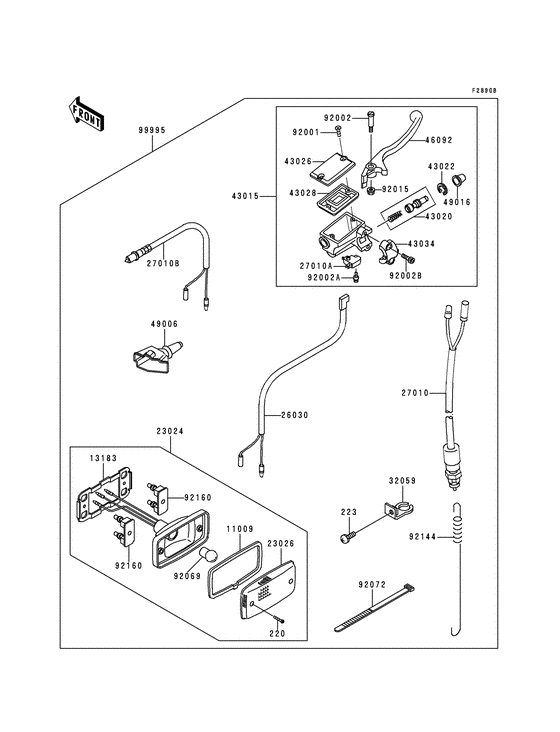

Optional parts (Brake switch) Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B6
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-4004 GASKETGasket,tail lamp; |
11009-4004 |
from US $4.67 |
||
|
13183
|
13183
13183-1261 PLATE,TAIL LAMPPlate,tail lamp; |
13183-1261 |
from US $12.12 |
||
|
23024
|
23024
23024-1124 LAMP-ASSY-TAIL |
23024-1124 |
US $109.93 |
||
| replacement | |||||
|
23024
|
23024
23024-1138 LAMP-ASSY-TAIL |
23024-1138 |
from US $74.81 |
||
|
23026
|
23026
23026-4003 LENS,TAIL LAMPLens,tail lamp; |
23026-4003 |
from US $13.84 |
||
|
26030
|
26030
26030-1058 HARNESS |
26030-1058 |
from US $12.12 |
||
|
27010
|
27010
27010025 SWITCH,BRAKE LIGHTSwitch,brake lamp; |
27010025 |
from US $19.64 |
||
|
27010A
|
27010A
27010-1170
SWITCH,BRAKE
Switch,brake; |
27010-1170 |
— | ||
| replacement | |||||
|
27010A
|
27010A
27010-0025 SWITCH,BRAKESwitch,brake; |
27010-0025 |
from US $23.19 |
||
|
27010B
|
27010B
27010-1294 Switch, engine stopSwitch,brake; |
27010-1294 |
from US $22.55 |
||
|
32059
|
32059
32059-1114 BRACKET-SWITCH,REAR BBracket-switch,rear brake; |
32059-1114 |
US $10.91 |
||
|
43015
|
43015
43015-1438 CYLINDER-ASSY-MASTER,Cylinder-assy-master,fr; |
43015-1438 |
US $332.15 |
||
|
43020
|
43020
43020-1056 PISTON-COMP-BRAKE,FRPiston-comp-brake,fr; |
43020-1056 |
from US $42.04 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPERStopper-brake,piston; |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1059 CAP-BRAKE,FR |
43026-1059 |
US $44.17 |
||
| replacement | |||||
|
43026
|
43026
43026-1055 CAP-BRAKE,FR |
43026-1055 |
from US $35.31 |
||
|
43028
|
43028
43028-1058 DIAPHRAGM,MASTER CYLIDiaphragm,master cylinder; |
43028-1058 |
from US $16.16 |
||
|
43034
|
43034
43034-1053 HOLDER-BRAKE,MASTER CHolder-brake,master cylinder; |
43034-1053 |
from US $24.24 |
||
|
46092
|
46092
46092-1167 LEVER-GRIP,FRONT BRAKLever-grip,front brake; |
46092-1167 |
US $21.06 |
||
|
49006
|
49006
49006-1261 BOOT |
49006-1261 |
from US $14.31 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDERCover-seal,master cylinder; |
49016-1044 |
from US $10.08 |
||
|
92001
|
92001
92001-1727 BOLT,MASTER CYLINDERScrew,5mm,black; |
92001-1727 |
from US $2.85 |
||
|
92002
|
92002
92002-1322 BOLT,LEVER SETBolt,lever set,black; |
92002-1322 |
from US $7.13 |
||
|
92002A
|
92002A
92002-1323 BOLTBolt,screw,4x12; |
92002-1323 |
from US $2.53 |
||
|
92002B
|
92002B
92002-1324 BOLT,SOCKET,6X20Bolt,socket,6x20,black; |
92002-1324 |
from US $6.02 |
||
| replacement | |||||
|
92002B
|
92002B
92153-0417 BOLT,SOCKET,6X20Bolt,socket,6x20,black; |
92153-0417 |
from US $3.80 |
||
|
220
|
220
220B0416
SCREW PAN HEAD 4X16
|
220B0416 |
— | ||
| replacement | |||||
|
220
|
220
220AA0416 SCREW-PAN-CROS |
220AA0416 |
from US $0.94 |
||
|
223
|
223
223B0612
SCREW-PAN-WS-CROS
|
223B0612 |
— | ||
| replacement | |||||
|
223
|
223
223AA0612 SCREW-PAN-WS-CROS |
223AA0612 |
from US $0.65 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMNut,flanged,6mm,black; |
92015-1233 |
from US $3.90 |
||
|
92069
|
92069
92069-059 BULB,12V 32/3CPBulb,12v 27/8w; |
92069-059 |
from US $5.70 |
||
|
92072
|
92072
92072-030 BAND,SHORTBand,l=123; |
92072-030 |
from US $3.01 |
||
|
92144
|
92144
92144-1191 SPRING,BRAKE LAMP SWISpring,brake lamp switch; |
92144-1191 |
from US $6.49 |
||
|
92160
|
92160
92160-1053 DAMPER,TAIL LAMPDamper,tail lamp; |
92160-1053 |
from US $5.13 |
||
|
99995
|
99995
99995-1443
キツト.，ブレ-キ スイツチ
Kit.,brake switch; |
99995-1443 |
— | ||
| replacements | |||||
|
99995
|
99995
23024-1138 LAMP-ASSY-TAILKit.,brake switch; |
23024-1138 |
from US $74.81 |
||
|
99995
|
99995
43015-1438 CYLINDER-ASSY-MASTER,Kit.,brake switch; |
43015-1438 |
US $332.15 |
||
|
99995
|
99995
99995-1451
キツト.，ブレ-キ スイツチ
Kit.,brake switch; |
99995-1451 |
— | ||
