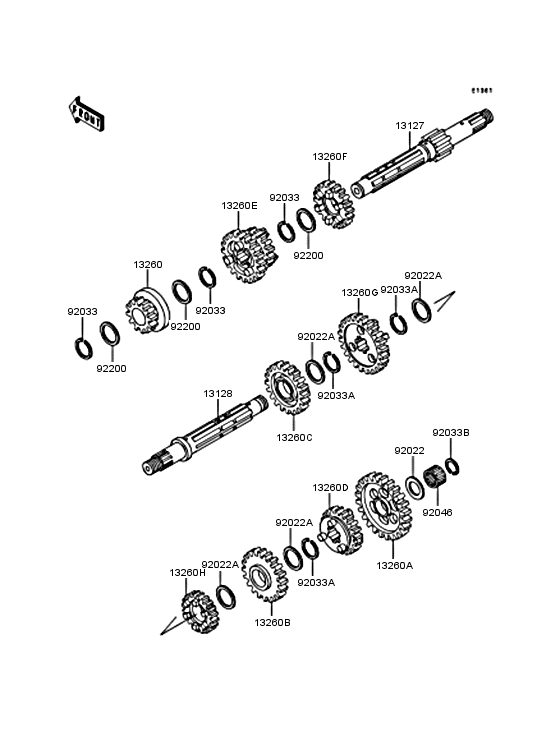

Transmission Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B6
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- Canada
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- LF400AE 500001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13127
|
13127
13127-1211 SHAFT-TRANSMISSION INシヤフト(トランスミツシヨンインプツト，11T |
13127-1211 |
US $190.87 |
||
|
13128
|
13128
13128-1185 SHAFT-TRANSMISSION OUシヤフト(トランスミツシヨンアウトプツ |
13128-1185 |
US $169.33 |
||
|
13260
|
13260
13260-1211 GEAR,INPUT 2ND,16Tギヤ，インプツト 2ND，16T |
13260-1211 |
from US $83.82 |
||
|
13260A
|
13260A
13260-1214 GEAR,OUTPUT LOW,42Tギヤ，アウトプツト LOW，42T |
13260-1214 |
US $131.53 |
||
|
13260B
|
13260B
13260-1216 GEAR,OUTPUT 3RD,32Tギヤ，アウトプツト 3RD，32T |
13260-1216 |
US $117.20 |
||
|
13260C
|
13260C
13260-1219 GEAR,REVERSE,31Tギヤ，リバ-ス，31T |
13260-1219 |
US $104.33 |
||
|
13260D
|
13260D
13260-1449 GEAR,OUTPUT 4TH,27Tギヤ，アウトプツト 4TH，27T |
13260-1449 |
US $109.53 |
||
|
13260E
|
13260E
13260-1522 GEAR,INPUT 3RD&TOP,21ギヤ，インプツト 3RDTOP，21T34T |
13260-1522 |
US $156.55 |
||
|
13260F
|
13260F
13260-1523 GEAR,INPUT 4TH,26Tギヤ，インプツト 4TH，26T |
13260-1523 |
US $117.20 |
||
|
13260G
|
13260G
13260-1524 GEAR,OUTPUT 2ND,36Tギヤ，アウトプツト 2ND，36T |
13260-1524 |
US $140.74 |
||
|
13260H
|
13260H
13260-1525 GEAR,PUTPUT TOP,26Tギア，アウトプツト トツプ，26T |
13260-1525 |
US $109.53 |
||
|
92022
|
92022
92022-112 WASHER THRUSTワツシヤ，20.5X30X1 |
92022-112 |
from US $5.54 |
||
|
92022A
|
92022A
92022-159 WASHER-PLAIN 25MMワツシヤ，25.3X30X0.5 |
92022-159 |
from US $5.39 |
||
|
92033
|
92033
92033-025 CIRCLIP,25MMリング(スナツプ)，20X25.5X1.2 |
92033-025 |
from US $3.73 |
||
|
92033A
|
92033A
92033-026 CIRCLIPリング(スナツプ)，24MM |
92033-026 |
from US $6.72 |
||
|
92033B
|
92033B
92033-029 CIRCLIP,18MMリング(スナツプ)，18MM |
92033-029 |
from US $6.34 |
||
|
92046
|
92046
92046-1170 BEARING-NEEDLE,KT2026ベアリング(ニ-ドル)，KT202614 |
92046-1170 |
from US $16.95 |
||
|
92200
|
92200
92200-1125 WASHER,22.3X29X1.0ワツシヤ，22.3X29X1.0 |
92200-1125 |
US $3.57 |
