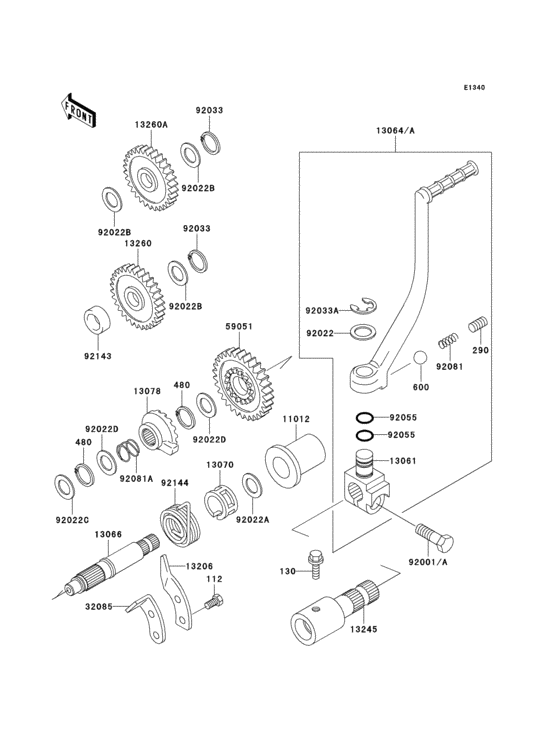

Kickstarter mechanism Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B6
- Engine Capacity
- 391
- Year
- 1998
- Colour
- Colored Plastic Hunter Green (6A)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112G0618
BOLT-UPSET
|
112G0618 |
— | ||
| replacement | |||||
|
112
|
112
112BA0618 BOLT-UPSET |
112BA0618 |
from US $0.95 |
||
|
130
|
130
130J0610
BOLT-FLANGED,6X10
|
130J0610 |
— | ||
| replacement | |||||
|
130
|
130
130BB0610 BOLT-FLANGED,6X10 |
130BB0610 |
from US $1.11 |
||
|
290
|
290
290Q0808 SCREW,8X8 |
290Q0808 |
from US $3.17 |
||
|
480
|
480
480J1600 CIRCLIP 16MM |
480J1600 |
from US $1.43 |
||
|
600
|
600
600A0800 BALL,6.35MM |
600A0800 |
from US $0.91 |
||
|
11012
|
11012
11012-1801
CAP,KICKSTARTER
|
11012-1801 |
— | ||
|
13061
|
13061
13061-1189 BOSS,KICK PEDAL |
13061-1189 |
from US $50.23 |
||
|
13064A
|
13064A
13064-1127 LEVER-ASSY-KICK |
13064-1127 |
from US $114.59 |
||
|
13066
|
13066
13066-1079
SHAFT-KICK
|
13066-1079 |
— | ||
|
13070
|
13070
13070011 GUID,KICKSTARTER SPRG |
13070011 |
from US $7.29 |
||
|
13078
|
13078
13078-1053 RATCHET |
13078-1053 |
from US $47.43 |
||
|
13206
|
13206
13206-1056 GUIDE-KICK |
13206-1056 |
US $7.94 |
||
|
13245
|
13245
13245-1051
SHAFT-COMP-KICK
|
13245-1051 |
— | ||
|
13260
|
13260
13260-1221 GEAR,KICKSTARTER,IDLE |
13260-1221 |
US $109.53 |
||
|
13260A
|
13260A
13260-1222 GEAR,KICKSTARTER,IDLE |
13260-1222 |
US $59.92 |
||
|
32085
|
32085
32085-1237 STOPPER |
32085-1237 |
US $4.91 |
||
|
59051
|
59051
59051-1253
GEAR-SPUR,KICKSTARTER
|
59051-1253 |
— | ||
|
92001A
|
92001A
92001-1042 BOLT,HEX HEAD,8X28 |
92001-1042 |
US $4.59 |
||
|
92022
|
92022
92022-1019 WASHER,PLAIN |
92022-1019 |
from US $3.48 |
||
|
92022A
|
92022A
92022-118 WASHER THRUST |
92022-118 |
from US $2.85 |
||
|
92022B
|
92022B
92022-1799 WASHER,17.3X22X0.5 |
92022-1799 |
from US $2.53 |
||
|
92022C
|
92022C
92022-269 WASHER,PLAIN |
92022-269 |
from US $1.72 |
||
|
92022D
|
92022D
92022-315 WASHER,PLAIN |
92022-315 |
from US $3.48 |
||
|
92033
|
92033
92033-032 CIRCLIP,16MM |
92033-032 |
from US $3.01 |
||
|
92033A
|
92033A
92033-1166 RING-SNAP,10MM |
92033-1166 |
from US $2.53 |
||
|
92055
|
92055
92055-061 O RING |
92055-061 |
from US $3.33 |
||
|
92081
|
92081
92081-020 SPRING, KICK PEDAL |
92081-020 |
from US $2.85 |
||
|
92081A
|
92081A
92081-122 SPRING,RATCHET |
92081-122 |
from US $5.70 |
||
|
92143
|
92143
92143-1525 COLLAR,17X23X5 |
92143-1525 |
US $7.96 |
||
|
92144
|
92144
92144-1001 SPRING,KICKSTARTER |
92144-1001 |
from US $17.11 |
||
