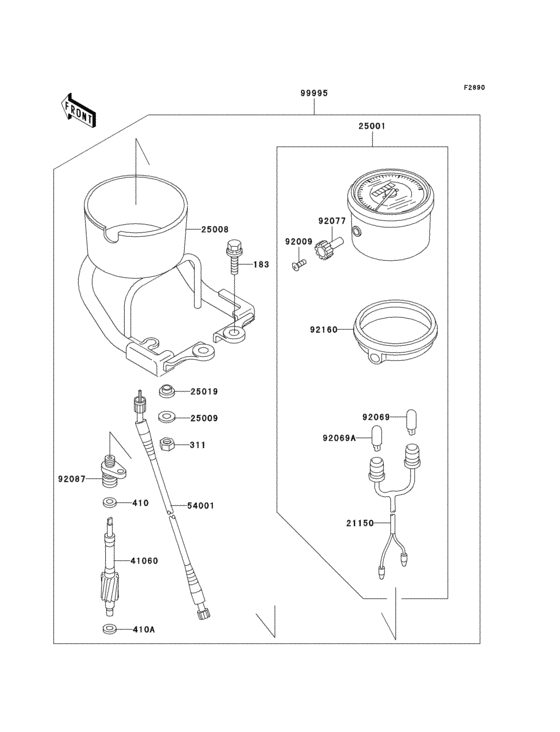

Optional parts(1/2)(meter) Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B6
- Engine Capacity
- 391
- Year
- 1998
- Colour
- Colored Plastic Hunter Green (6A)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
183
|
183
183J0814 BOLT-UPSET-WS-SMALL |
183J0814 |
US $3.71 |
||
| replacement | |||||
|
183
|
183
183BB0814 BOLT-UPSET-WS-SMALL |
183BB0814 |
from US $1.24 |
||
|
311
|
311
311C0500 NUT-HEX |
311C0500 |
from US $0.61 |
||
| replacement | |||||
|
311
|
311
311AB0500 NUT-HEX |
311AB0500 |
from US $0.75 |
||
|
410
|
410
410B0500
W-PLAIN-S
|
410B0500 |
— | ||
| replacement | |||||
|
410
|
410
410AA0500 W-PLAIN-S |
410AA0500 |
from US $0.78 |
||
|
410A
|
410A
410B0600
WASHER-PLAIN-SMALL
|
410B0600 |
— | ||
| replacement | |||||
|
410A
|
410A
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
21150
|
21150
21150-1056 CORD-ASSY,SPEEDOMETER |
21150-1056 |
US $24.44 |
||
|
25001
|
25001
25001-1895 METER-ASSY,SPEED,MPH |
25001-1895 |
US $361.51 |
||
|
25008
|
25008
25008-1191 BRACKET-METER |
25008-1191 |
US $83.92 |
||
|
25009
|
25009
25009-004
WASHER,5.2X16X16X1.2T
|
25009-004 |
— | ||
| replacement | |||||
|
25009
|
25009
92200-2276
Washer,5.2X16X1.2
|
92200-2276 |
— | ||
|
25019
|
25019
25019023 DAMPER RUBBER,MET FIT |
25019023 |
from US $3.64 |
||
|
41060
|
41060
41060-1126 GEAR-METER SCREW |
41060-1126 |
from US $36.40 |
||
|
54001
|
54001
54001-1211
CABLE-SPEEDOMETER
|
54001-1211 |
— | ||
|
92009
|
92009
92009-1172 SCREW,2X6,BLACK |
92009-1172 |
from US $2.53 |
||
|
92069
|
92069
92069-1059 BULB,12V 1.7W |
92069-1059 |
from US $3.33 |
||
|
92069A
|
92069A
92069-1070 BULB,12V 1.7W,T6.5 |
92069-1070 |
from US $4.44 |
||
|
92077
|
92077
92077-1073 KNOB,METER |
92077-1073 |
from US $3.80 |
||
|
92087
|
92087
92087-1057 BUSHING-METER GEAR |
92087-1057 |
from US $13.38 |
||
|
92160
|
92160
92160-1064 DAMPER,SPEEDOMETER |
92160-1064 |
from US $18.37 |
||
|
99995
|
99995
99995-1340 KIT.,SPEEDOMETER,MPH |
99995-1340 |
US $448.69 |
||
