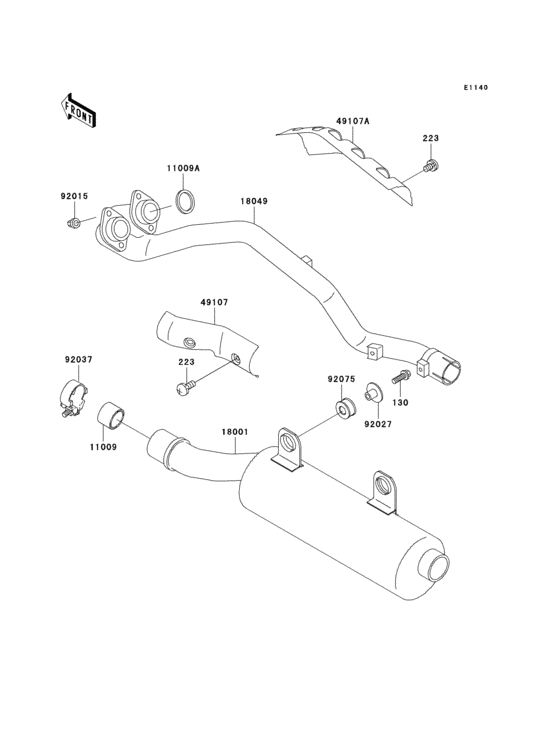

Muffler(s) Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B6
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- Europe
- Frame
- LF400B 603401 - 604100
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0830 BOLT-FLANGE,8X30 |
130BB0830 |
from US $1.13 |
||
|
223
|
223
223AB0610 SCREW-PAN-WS-CROS |
223AB0610 |
from US $1.11 |
||
|
11009
|
11009
11009-1667 GASKET,EXHAUST PIPE C |
11009-1667 |
from US $19.11 |
||
|
11009A
|
11009A
11009-1866 GASKET,EXHAUST PIPE H |
11009-1866 |
from US $4.91 |
||
|
18001
|
18001
18001-1895 MUFFLER |
18001-1895 |
US $247.97 |
||
|
18049
|
18049
18049-1580 PIPE-EXHAUST |
18049-1580 |
US $303.52 |
||
|
49107
|
49107
49107-1087 COVER-EXHAUST PIPE,RR |
49107-1087 |
US $23.26 |
||
|
49107A
|
49107A
49107-1088 COVER-EXHAUST PIPE,FR |
49107-1088 |
from US $18.45 |
||
|
92015
|
92015
92015-1402 NUT,8MM |
92015-1402 |
from US $2.85 |
||
|
92027
|
92027
92027-1981 COLLAR,MUFFLER |
92027-1981 |
from US $6.54 |
||
|
92037
|
92037
92037-1349 CLAMP,42MM |
92037-1349 |
from US $10.09 |
||
|
92075
|
92075
92075-1809 DAMPER,MUFFLER |
92075-1809 |
from US $4.98 |
