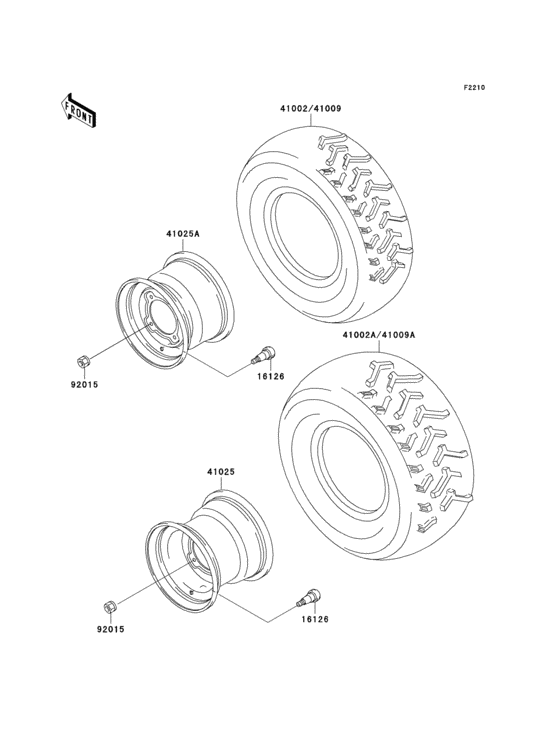

Tires Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B6
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- Europe
- Frame
- LF400B 603401 - 604100
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16126
|
16126
16126-4001 VALVE,TIRE |
16126-4001 |
from US $12.48 |
||
|
41002
|
41002
41009-1163
TIRE,FR
|
41009-1163 |
— | ||
|
41002A
|
41002A
41009-1164 TIRE,RR |
41009-1164 |
US $134.37 |
||
|
41009
|
41009
41009-1163
TIRE,FR
|
41009-1163 |
— | ||
|
41009A
|
41009A
41009-1164 TIRE,RR |
41009-1164 |
US $134.37 |
||
|
41025
|
41025
41025-1334-5A
RIM,RR,11X8.0,SILVER
|
41025-1334-5A |
— | ||
|
41025A
|
41025A
41025-1342-5A RIM,FR,11X6.5,SILVER |
41025-1342-5A |
from US $157 |
||
|
92015
|
92015
92210-1204 NUT,LOCK,10MM |
92210-1204 |
from US $5.59 |
