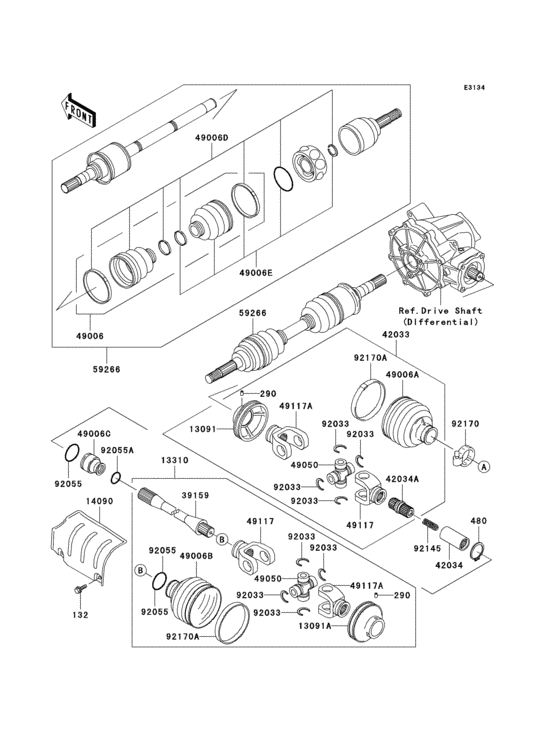

Drive shaft(front) Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B6
- Engine Capacity
- 391
- Year
- 1998
- Frame
- LF400B 603401 - 604100
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
92002-1569
BOLT-FLANGED-SMALL,6X
|
92002-1569 |
— | ||
| replacement | |||||
|
132
|
132
132BB0612 BOLT-FLANGED-SMALL,6X |
132BB0612 |
from US $0.95 |
||
|
290
|
290
290Q0508 SCREW-SET-SOCKET |
290Q0508 |
from US $1.71 |
||
|
480
|
480
480J2200 CIRCLIP,22MM |
480J2200 |
from US $1.27 |
||
|
13091
|
13091
13091-1863 HOLDER |
13091-1863 |
US $124.56 |
||
|
13091A
|
13091A
13091-1892 HOLDER |
13091-1892 |
US $83.97 |
||
|
13310
|
13310
13310-1018
SHAFT-ASSY,DRIVE
|
13310-1018 |
— | ||
|
14090
|
14090
14090-1515 COVER |
14090-1515 |
US $18.13 |
||
|
39159
|
39159
39159-1080 SHAFT-DRIVE |
39159-1080 |
US $145.89 |
||
|
42033
|
42033
42033-1188
COUPLING ASSY
|
42033-1188 |
— | ||
|
42034
|
42034
42034-1103 COUPLING |
42034-1103 |
from US $30.95 |
||
|
42034A
|
42034A
42034-1127 COUPLING |
42034-1127 |
from US $36.55 |
||
|
49006
|
49006
49006-1252 BOOT,DRIVE SHAFT |
49006-1252 |
from US $148.20 |
||
|
49006A
|
49006A
49006-1293 BOOT,COUPLING |
49006-1293 |
from US $25.34 |
||
|
49006B
|
49006B
49006-1294 BOOT,DRIVE SHAFT |
49006-1294 |
from US $16.95 |
||
|
49006C
|
49006C
49006-1295 BOOT,DRIVE SHAFT |
49006-1295 |
from US $10.11 |
||
|
49006D
|
49006D
49006-0054 BOOT,BJ |
49006-0054 |
from US $55.90 |
||
|
49006E
|
49006E
49006-0055 BOOT,DOJ |
49006-0055 |
from US $45.15 |
||
|
49050
|
49050
49050-1057 SPIDER |
49050-1057 |
from US $65.23 |
||
|
49117
|
49117
49117-1083
YOKE,DRIVE
|
49117-1083 |
— | ||
|
49117A
|
49117A
49117-1084
YOKE,DRIVE
|
49117-1084 |
— | ||
|
59266
|
59266
59266-1103 JOINT-BALL |
59266-1103 |
from US $596.91 |
||
|
92033
|
92033
92033-1283 RING-SNAP |
92033-1283 |
from US $3.74 |
||
|
92055
|
92055
92055-1451 RING-O,19.5X3.0 |
92055-1451 |
from US $2.65 |
||
|
92055A
|
92055A
92055-1531 RING-O,15X3.0 |
92055-1531 |
from US $5.44 |
||
|
92145
|
92145
92145-1055 SPRING |
92145-1055 |
from US $3.11 |
||
|
92170
|
92170
92171-0179 CLAMP |
92171-0179 |
from US $6.49 |
||
|
92170A
|
92170A
92170-1727 CLAMP |
92170-1727 |
from US $13.27 |
||
