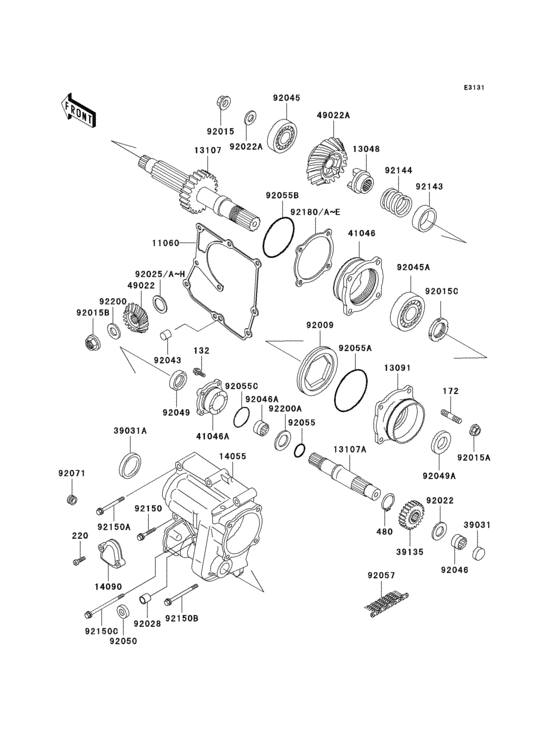

Front bevel gear(1/2) Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B6
- Engine Capacity
- 391
- Year
- 1998
- Frame
- LF400B 603401 - 604100
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BA0620 BOLT-FLANGED-SMALL,6X20 |
132BA0620 |
from US $1.43 |
||
|
172
|
172
92004-1214 STUD |
92004-1214 |
from US $3.17 |
||
| replacement | |||||
|
172
|
172
172BA0825 STUD |
172BA0825 |
from US $2.95 |
||
|
220
|
220
220AB0620 SCREW-PAN-CROSS |
220AB0620 |
from US $1.15 |
||
|
480
|
480
480J2500 CIRCLIP-TYPE-C,25MM |
480J2500 |
from US $1.27 |
||
|
11060
|
11060
11060-1708
GASKET,GEAR CASE
|
11060-1708 |
— | ||
|
13048
|
13048
13048-1078 CAM-DAMPER |
13048-1078 |
US $36.61 |
||
|
13091
|
13091
13091-1764 HOLDER,GEAR CASE |
13091-1764 |
US $50.42 |
||
|
13107
|
13107
13107-1323 SHAFT,FRONT BEVEL,23T |
13107-1323 |
US $315.52 |
||
|
13107A
|
13107A
13107-1332 SHAFT,FRONT BEVEL |
13107-1332 |
US $124.97 |
||
|
14055
|
14055
14055-1122
CASE-GEAR,FRONT BEVEL
|
14055-1122 |
— | ||
|
14090
|
14090
14090-1135 COVER |
14090-1135 |
US $7.65 |
||
|
39031
|
39031
39031-1061 CAP-END |
39031-1061 |
from US $6.18 |
||
|
39031A
|
39031A
39031-1062
CAP-END
|
39031-1062 |
— | ||
|
39135
|
39135
39135-1054 SPROCKET-DRIVEN,23T |
39135-1054 |
US $114.26 |
||
|
41046
|
41046
41046-1094 HOUSING-BEARING |
41046-1094 |
US $172.10 |
||
|
41046A
|
41046A
41046-1095 HOUSING-BEARING |
41046-1095 |
US $100.06 |
||
|
49022
|
49022
49022-1126 GEAR-BEVEL |
49022-1126 |
US $147.85 |
||
|
49022A
|
49022A
49022-1127 GEAR-BEVEL |
49022-1127 |
US $186.59 |
||
|
92009
|
92009
92172-0341 SCREW,SET,75X10 |
92172-0341 |
from US $50.86 |
||
|
92015
|
92015
92015-1341 NUT,FLANGED,14MM |
92015-1341 |
from US $12.12 |
||
|
92015A
|
92015A
92015-1402 NUT,8MM |
92015-1402 |
from US $2.85 |
||
|
92015B
|
92015B
92015-1581 NUT |
92015-1581 |
from US $12.20 |
||
|
92015C
|
92015C
92015-1858 NUT,30MM |
92015-1858 |
from US $18.98 |
||
|
92022
|
92022
92022-1489 WASHER,20.3X36X1.5 |
92022-1489 |
from US $3.48 |
||
|
92022A
|
92022A
92022-1688 WASHER,14.2X28X2.6 |
92022-1688 |
from US $3.89 |
||
|
92025
|
92025
92025-1688 SHIM,25.3X36X0.15 |
92025-1688 |
from US $5.54 |
||
|
92025A
|
92025A
92025-1689 SHIM,25.3X36X0.50 |
92025-1689 |
from US $5.54 |
||
|
92025B
|
92025B
92025-1690 SHIM,25.3X36X0.60 |
92025-1690 |
from US $5.54 |
||
|
92025C
|
92025C
92025-1691 SHIM,25.3X36X0.70 |
92025-1691 |
from US $5.54 |
||
|
92025D
|
92025D
92025-1692 SHIM,25.3X36X0.80 |
92025-1692 |
from US $5.54 |
||
|
92025E
|
92025E
92025-1693 SHIM,25.3X36X0.90 |
92025-1693 |
from US $5.54 |
||
|
92025F
|
92025F
92025-1694 SHIM,25.3X36X1.0 |
92025-1694 |
from US $5.54 |
||
|
92025G
|
92025G
92025-1695 SHIM,25.3X36X1.1 |
92025-1695 |
from US $5.54 |
||
|
92025H
|
92025H
92025-1696 SHIM,25.3X36X1.2 |
92025-1696 |
from US $5.54 |
||
|
92028
|
92028
92028-1347 BUSHING |
92028-1347 |
from US $5.54 |
||
|
92043
|
92043
92043-1037 PIN,DOWEL,10X8.2X14 |
92043-1037 |
from US $0.97 |
||
|
92045
|
92045
92045-1155 BEARING-BALL,6206CM |
92045-1155 |
from US $18.50 |
||
|
92045A
|
92045A
92045-1190 BEARING-BALL,6306SH2 |
92045-1190 |
from US $30.82 |
||
|
92046
|
92046
92046-1211 BEARING-NEEDLE,NK20/2 |
92046-1211 |
US $27.72 |
||
|
92046A
|
92046A
92046-1212 BEARING-NEEDLE,NK24/2 |
92046-1212 |
US $28.22 |
||
|
92049
|
92049
92049-1395 SEAL-OIL,AE1252E0 |
92049-1395 |
from US $6.22 |
||
|
92049A
|
92049A
92049-1400 SEAL-OIL,AE1265E0 |
92049-1400 |
from US $11.46 |
||
|
92050
|
92050
92050-082 OIL SEAL,CHANGE SHAFT |
92050-082 |
from US $5.54 |
||
|
92055
|
92055
92055-055 O RING |
92055-055 |
from US $3.37 |
||
|
92055A
|
92055A
92055-081 O RING |
92055-081 |
from US $10.27 |
||
|
92055B
|
92055B
92055-1230 RING-O,79.5MM |
92055-1230 |
from US $4.59 |
||
|
92055C
|
92055C
92055-1401 RING-O,43.7X1.9 |
92055-1401 |
from US $8.55 |
||
|
92057
|
92057
92057-1351
CHAIN,BEVEL,63HV303-4
|
92057-1351 |
— | ||
|
92071
|
92071
92071-1203 GROMMET |
92071-1203 |
US $4.23 |
||
|
92143
|
92143
92143-1657 COLLAR |
92143-1657 |
US $15.80 |
||
|
92144
|
92144
92144-1599 SPRING,BEVEL |
92144-1599 |
US $20.05 |
||
|
92150
|
92150
92150-1585 BOLT,8X35 |
92150-1585 |
US $3.67 |
||
| replacement | |||||
|
92150
|
92150
132BA0835 BOLT,8X35 |
132BA0835 |
from US $3.01 |
||
|
92150A
|
92150A
92150-1586 BOLT,8X60 |
92150-1586 |
US $3.76 |
||
|
92150B
|
92150B
92150-1587 BOLT,8X75 |
92150-1587 |
US $5.35 |
||
|
92150C
|
92150C
92150-1588 BOLT,8X90 |
92150-1588 |
US $5.74 |
||
|
92180
|
92180
92180-1126 SHIM,T=1.00 |
92180-1126 |
from US $4.98 |
||
|
92180A
|
92180A
92180-1127 SHIM,T=0.10 |
92180-1127 |
US $6.19 |
||
|
92180B
|
92180B
92180-1128 SHIM,T=0.15 |
92180-1128 |
US $6.82 |
||
|
92180C
|
92180C
92180-1129 SHIM,T=0.50 |
92180-1129 |
US $6.19 |
||
|
92180D
|
92180D
92180-1130 SHIM,T=0.80 |
92180-1130 |
US $6.19 |
||
|
92180E
|
92180E
92180-1131 SHIM,T=1.20 |
92180-1131 |
US $6.19 |
||
|
92200
|
92200
92200-1104 WASHER,16.3X31X3.2 |
92200-1104 |
US $4.55 |
||
|
92200A
|
92200A
92200-1118 WASHER,24.2X40X2.0 |
92200-1118 |
US $3.96 |
||
