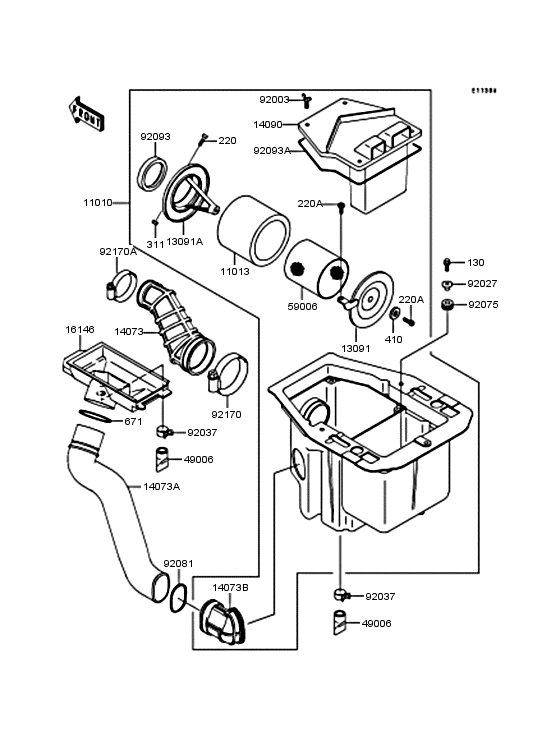

Air cleaner (KLF400-B7) Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B7
- Engine Capacity
- 391
- Year
- 1999
- Sales region
- Canada
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- LF400AE 500001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0618
Bolt,flanged,6x18
ボルト(ツバツキ)，6X18 |
130B0618 |
— | ||
| replacements | |||||
|
130
|
130
130BA0618 BOLT-FLANGED,6X18ボルト(ツバツキ)，6X18 |
130BA0618 |
from US $0.79 |
||
|
130
|
130
130AA0618 Bolt-flanged,6x18ボルト(ツバツキ)，6X18 |
130AA0618 |
US $0.88 |
||
|
130
|
130
130G0618 BOLT-FLANGED,6X18ボルト(ツバツキ)，6X18 |
130G0618 |
from US $1.01 |
||
|
220
|
220
220B0516 SCREW-PAN-CROSナベコネジ(+ジアナ) |
220B0516 |
from US $1.11 |
||
| replacement | |||||
|
220
|
220
220AA0516 SCREW-PAN-CROSナベコネジ(+ジアナ) |
220AA0516 |
from US $0.79 |
||
|
220A
|
220A
220B0614
SCREW-PAN-CROS,6X14
ナベコネジ(+ジアナ)，6X14 |
220B0614 |
— | ||
| replacement | |||||
|
220A
|
220A
220AA0614 SCREW-PAN-CROS,6X14ナベコネジ(+ジアナ)，6X14 |
220AA0614 |
from US $0.95 |
||
|
311
|
311
311B0500
NUT-HEX,5MM
ロツカク ナツト |
311B0500 |
— | ||
| replacement | |||||
|
311
|
311
311AA0500 NUT-HEX,5MMロツカク ナツト |
311AA0500 |
from US $0.78 |
||
|
410
|
410
410B0600
WASHER-PLAIN-SMALL
ヒラザガネ(コガタマル)，6MM |
410B0600 |
— | ||
| replacement | |||||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALLヒラザガネ(コガタマル)，6MM |
410AA0600 |
from US $0.79 |
||
|
671
|
671
671B2550 O RINGO リング(コテイヨウ)，50MM |
671B2550 |
from US $2.92 |
||
|
11010
|
11010
11010-1656 FILTER-ASSY-AIRフイルタアツシ(エア) |
11010-1656 |
US $254.39 |
||
|
11013
|
11013
11013-1277 Element-air filterエレメント(エアフイルタ) |
11013-1277 |
from US $11.04 |
||
|
13091
|
13091
13091-1488 HOLDER,ELEMENTホルダ，エレメント |
13091-1488 |
from US $13.06 |
||
|
13091A
|
13091A
13091-1565 HOLDER,AIR FILTER ELEホルダ，エア フイルタ エレメント |
13091-1565 |
from US $11.51 |
||
|
14073
|
14073
14073-1497 DUCT,AIR FILTERダクト，エア フイルタ |
14073-1497 |
from US $55.44 |
||
|
14073A
|
14073A
14073-1638 DUCT,SNORKELダクト，シユノ-ケル |
14073-1638 |
US $49.91 |
||
|
14073B
|
14073B
14073-1666
DUCT,AIR FILTER
ダクト，エア フイルタ |
14073-1666 |
— | ||
|
14090
|
14090
14090-1637
COVER,AIR FILTER
カバ-，エア フイルタ |
14090-1637 |
— | ||
|
16146
|
16146
16146-1179 COVER-ASSYカバ-アツシ |
16146-1179 |
US $77.42 |
||
|
49006
|
49006
49006-1292 BOOTブ-ツ |
49006-1292 |
from US $5.13 |
||
|
59006
|
59006
59006-1052 ARRESTER-FLAMEアレスタ(フレ-ム) |
59006-1052 |
from US $24.42 |
||
|
92003
|
92003
92003-199
BOLT,CLNR ELEMENT
ボルト，ウイング |
92003-199 |
— | ||
|
92027
|
92027
92027-1651 COLLAR,FLANGED,L=12.1カラ-，フランジ，L=12.1 |
92027-1651 |
from US $6.02 |
||
|
92037
|
92037
92037-1860
CLAMP
クランプ |
92037-1860 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-0329 CLAMPクランプ |
92171-0329 |
from US $5.39 |
||
|
92075
|
92075
92075-222 DAMPER RUBBER,CASEダンパ |
92075-222 |
from US $4.12 |
||
|
92081
|
92081
92081-1638 SPRING,DUCTスプリング，ダクト |
92081-1638 |
from US $6.81 |
||
|
92093
|
92093
92093-1322 SEAL,DUSTシ-ル，ダスト |
92093-1322 |
from US $5.90 |
||
|
92093A
|
92093A
92093-1331 SEAL,AIR FILTER CASEシ-ル，エア フイルタ ケ-ス |
92093-1331 |
US $3.76 |
||
|
92170
|
92170
92170-1675 CLAMP,RESERVE TANKクランプ |
92170-1675 |
US $11.27 |
||
| replacement | |||||
|
92170
|
92170
92037-1586 CLAMP,RESERVE TANKクランプ |
92037-1586 |
from US $9.19 |
||
|
92170A
|
92170A
92170-1679 CLAMPクランプ |
92170-1679 |
from US $8.45 |
||
| replacement | |||||
|
92170A
|
92170A
92170-1307 CLAMPクランプ |
92170-1307 |
from US $11.98 |
||
