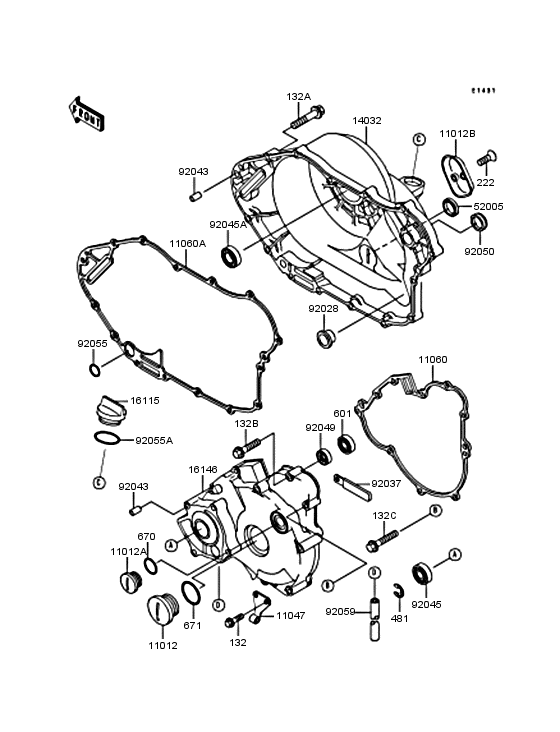

Engine cover Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B7
- Engine Capacity
- 391
- Year
- 1999
- Sales region
- Canada
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- LF400AE 500001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0612
BOLT-FLANGED-SMALL,6X
ボルト(コガタツバツキ) |
132G0612 |
— | ||
| replacement | |||||
|
132
|
132
132BA0612 BOLT-FLANGED-SMALL,6Xボルト(コガタツバツキ) |
132BA0612 |
from US $0.79 |
||
|
132A
|
132A
132V0630 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132V0630 |
from US $1.74 |
||
| replacement | |||||
|
132A
|
132A
132BA0630 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132BA0630 |
from US $1.27 |
||
|
132B
|
132B
132V0635 BOLT-FLANGED-SMALL,6Xボルト(コガタツバツキ) |
132V0635 |
from US $1.74 |
||
| replacement | |||||
|
132B
|
132B
132BA0635 BOLT-FLANGED-SMALL,6X35ボルト(コガタツバツキ) |
132BA0635 |
from US $1.25 |
||
|
132C
|
132C
132V0650 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132V0650 |
from US $1.74 |
||
| replacement | |||||
|
132C
|
132C
132BA0650 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132BA0650 |
from US $1.27 |
||
|
222
|
222
222C0512 SCREW-CSK-RD-CROSマルサラコネジ(+ジアナ) |
222C0512 |
US $2.88 |
||
| replacement | |||||
|
222
|
222
222AB0512 SCREW-CSK-RD-CROSマルサラコネジ(+ジアナ) |
222AB0512 |
from US $0.94 |
||
|
481
|
481
481J2200 CIRCLIP-TYPE-C,22MMトメワ(アナヨウ) |
481J2200 |
from US $1.27 |
||
|
601
|
601
601A6000 BEARING-BALLボ-ル ベアリング |
601A6000 |
from US $7.13 |
||
|
670
|
670
670B2018 0 RING,18MMO リング(ウンドウヨウ)，18MM |
670B2018 |
from US $1.77 |
||
|
671
|
671
671B2540 0 RING,40MMO リング(コテイヨウ)，40MM |
671B2540 |
from US $3.48 |
||
|
11012
|
11012
11012-1362 CAPキヤツプ |
11012-1362 |
from US $6.34 |
||
|
11012A
|
11012A
11012-1363 CAP,TOP MARKキヤツプ |
11012-1363 |
from US $4.75 |
||
|
11012B
|
11012B
11012-1644 CAP,CLUTCH RELEASEキヤツプ，クラツチ リリ-ス |
11012-1644 |
from US $13.54 |
||
|
11047
|
11047
11047-1494 BRACKET,CABLEブラケツト，ケ-ブル |
11047-1494 |
US $6.59 |
||
|
11060
|
11060
11060-1711 GASKET,GENERATORガスケツト，ジエネレ-タ |
11060-1711 |
from US $18.35 |
||
|
11060A
|
11060A
11060-1712 GASKET,CLUTCH COVERガスケツト，クラツチ カバ- |
11060-1712 |
from US $20.88 |
||
|
14032
|
14032
14032-5021 COVER-CLUTCHカバ-(クラツチ) |
14032-5021 |
US $218.52 |
||
|
16115
|
16115
16115-1009 CAP-OIL FILLERキヤツプ(オイルフイラ) |
16115-1009 |
from US $10.14 |
||
|
16146
|
16146
16146-1155
COVER-ASSY
カバ-アツシ，ゼネレ-タ |
16146-1155 |
— | ||
|
52005
|
52005
52005-1009 GAUGE,OIL LEVELゲ-ジ，オイル レベル |
52005-1009 |
from US $13.15 |
||
|
92028
|
92028
92028-1544 BUSHINGブツシング |
92028-1544 |
from US $8.55 |
||
|
92037
|
92037
92037-1539 CLAMP,WIRING HARNESSクランプ，L=45 |
92037-1539 |
from US $3.17 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14ピン，6.2X8X14 |
92043-1263 |
from US $0.75 |
||
|
92045
|
92045
92045-1206
BEARING-BALL
ベアリング(ボ-ル) |
92045-1206 |
— | ||
|
92045A
|
92045A
92045-1256
BEARING-BALL,6303RUED
ベアリング(ボ-ル)，6303RUED2C3 |
92045-1256 |
— | ||
|
92049
|
92049
92049-1157 SEAL-OIL,SC10227シ-ル(オイル)，SC10227 |
92049-1157 |
from US $6.34 |
||
|
92050
|
92050
92050-078 OIL SEALオイル シ-ル |
92050-078 |
from US $5.54 |
||
|
92055
|
92055
92055-048 O RING,0.D=18MMリング(0)，OD=18 |
92055-048 |
from US $3.33 |
||
|
92055A
|
92055A
92055-049 O-RING,31MMリング(0)，31.5X2.6 |
92055-049 |
from US $3.37 |
||
|
92059
|
92059
92059-080 PIPE-FUELチユ-ブ，4.5X9X190 |
92059-080 |
from US $3.89 |
||
