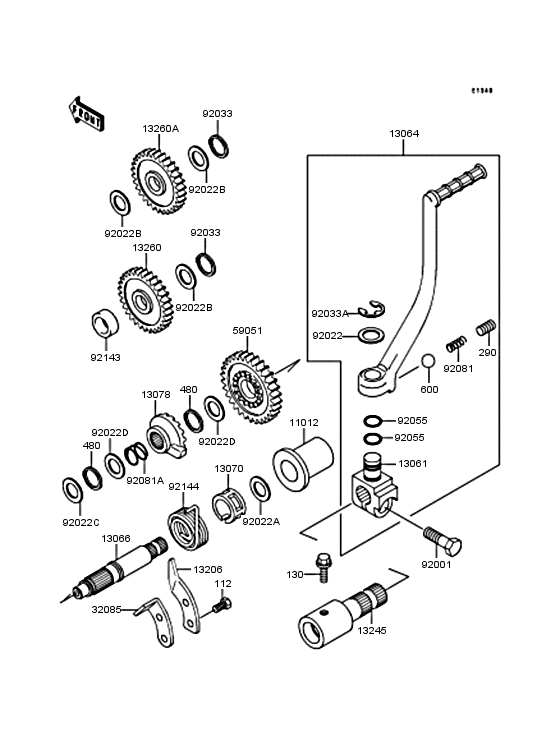

Kickstarter mechanism Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B7
- Engine Capacity
- 391
- Year
- 1999
- Sales region
- Canada
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- LF400AE 500001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112G0618
BOLT-UPSET
ボルト(アプセツト) |
112G0618 |
— | ||
| replacement | |||||
|
112
|
112
112BA0618 BOLT-UPSETボルト(アプセツト) |
112BA0618 |
from US $0.95 |
||
|
130
|
130
130J0610
BOLT-FLANGED,6X10
ボルト(ツバツキ) |
130J0610 |
— | ||
| replacement | |||||
|
130
|
130
130BB0610 BOLT-FLANGED,6X10ボルト(ツバツキ) |
130BB0610 |
from US $1.11 |
||
|
290
|
290
290Q0808 SCREW,8X8トメネジ(ロツカクアナ)，8X8 |
290Q0808 |
from US $3.17 |
||
|
480
|
480
480J1600 CIRCLIP 16MMトメワ(ジクヨウ)，16MM |
480J1600 |
from US $1.43 |
||
|
600
|
600
600A0800 BALL,6.35MMコウキユウ，1/4" |
600A0800 |
from US $0.91 |
||
|
11012
|
11012
11012-1801
CAP,KICKSTARTER
キヤツプ，キツクスタ-タ |
11012-1801 |
— | ||
|
13061
|
13061
13061-1189 BOSS,KICK PEDALボス，キツク ペダル |
13061-1189 |
from US $50.23 |
||
|
13064
|
13064
13064-1127 LEVER-ASSY-KICKレバ-アツシ(キツク) |
13064-1127 |
from US $114.59 |
||
|
13066
|
13066
13066-1079
SHAFT-KICK
シヤフト(キツク) |
13066-1079 |
— | ||
|
13070
|
13070
13070011 GUID,KICKSTARTER SPRGガイド，キツク スプリング |
13070011 |
from US $7.29 |
||
|
13078
|
13078
13078-1053 RATCHETラチエツト |
13078-1053 |
from US $47.43 |
||
|
13206
|
13206
13206-1056 GUIDE-KICKガイド(キツク) |
13206-1056 |
US $7.94 |
||
|
13245
|
13245
13245-1051
SHAFT-COMP-KICK
シヤフトコンプ(キツク) |
13245-1051 |
— | ||
|
13260
|
13260
13260-1221 GEAR,KICKSTARTER,IDLEギヤ，キツクスタ-タ，アイドル，23T |
13260-1221 |
US $109.53 |
||
|
13260A
|
13260A
13260-1222 GEAR,KICKSTARTER,IDLEギヤ，キツクスタ-タ，アイドル，29T |
13260-1222 |
US $59.92 |
||
|
32085
|
32085
32085-1237 STOPPERストツパ |
32085-1237 |
US $4.91 |
||
|
59051
|
59051
59051-1253
GEAR-SPUR,KICKSTARTER
ギヤ(スパ-)，キツクスタ-タ，31T |
59051-1253 |
— | ||
|
92001
|
92001
92001-1042 BOLT,HEX HEAD,8X28ボルト，8X28 |
92001-1042 |
US $4.59 |
||
|
92022
|
92022
92022-1019 WASHER,PLAINワツシヤ，15.2X20X1 |
92022-1019 |
from US $3.48 |
||
|
92022A
|
92022A
92022-118 WASHER THRUSTワツシヤ，18.5X23X1.2 |
92022-118 |
from US $2.85 |
||
|
92022B
|
92022B
92022-1799 WASHER,17.3X22X0.5ワツシヤ，17.3X22X0.5 |
92022-1799 |
from US $2.53 |
||
|
92022C
|
92022C
92022-269 WASHER,PLAINワツシヤ，12.3X20X0.5 |
92022-269 |
from US $1.72 |
||
|
92022D
|
92022D
92022-315 WASHER,PLAINワツシヤ，16.8X22X0.5 |
92022-315 |
from US $3.48 |
||
|
92033
|
92033
92033-032 CIRCLIP,16MMリング(スナツプ) |
92033-032 |
from US $3.01 |
||
|
92033A
|
92033A
92033-1166 RING-SNAP,10MMリング(スナツプ)，10MM |
92033-1166 |
from US $2.53 |
||
|
92055
|
92055
92055-061 O RINGリング(0)，10X1.5 |
92055-061 |
from US $3.33 |
||
|
92081
|
92081
92081-020 SPRING, KICK PEDALスプリング，キツク ペダル |
92081-020 |
from US $2.85 |
||
|
92081A
|
92081A
92081-122 SPRING,RATCHETスプリング |
92081-122 |
from US $5.70 |
||
|
92143
|
92143
92143-1525 COLLAR,17X23X5カラ-，17X23X5 |
92143-1525 |
US $7.96 |
||
|
92144
|
92144
92144-1001 SPRING,KICKSTARTERスプリング，キツクスタ-タ |
92144-1001 |
from US $17.11 |
||
