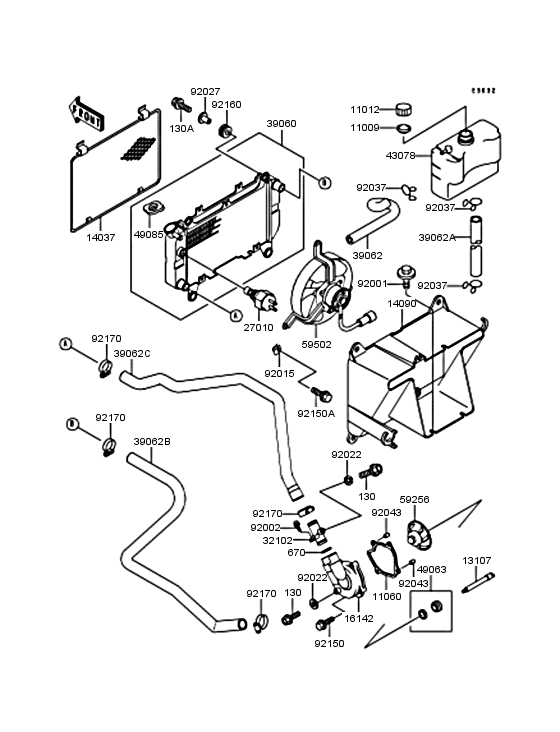

Radiator (- LF400AE532917) Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B7
- Engine Capacity
- 391
- Year
- 1999
- Sales region
- Canada
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- LF400AE 500001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0610
BOLT-FLANGED,6X10
ボルト(ツバツキ) |
130J0610 |
— | ||
| replacement | |||||
|
130
|
130
130BB0610 BOLT-FLANGED,6X10ボルト(ツバツキ) |
130BB0610 |
from US $1.11 |
||
|
130A
|
130A
130J0830
BOLT-FLANGE,8X30
ボルト(ツバツキ)，8X30 |
130J0830 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0830 BOLT-FLANGE,8X30ボルト(ツバツキ)，8X30 |
130BB0830 |
from US $1.13 |
||
|
670
|
670
670B2018 0 RING,18MMO リング(ウンドウヨウ)，18MM |
670B2018 |
from US $1.77 |
||
|
11009
|
11009
11009-1145 GASKET,RESERVE TANKガスケツト，リザ-バ タンク キヤツプ |
11009-1145 |
from US $1.79 |
||
|
11012
|
11012
11012-1084 CAP,RESERVE TANKキヤツプ |
11012-1084 |
from US $2.14 |
||
|
11060
|
11060
11060-1308 GASKET,PUMP COVERガスケツト，ポンプ カバ- |
11060-1308 |
from US $7.16 |
||
|
13107
|
13107
13107-1287
SHAFT,WATER PUMP
シヤフト，ウオ-タ ポﾝﾟフ |
13107-1287 |
— | ||
|
14037
|
14037
14037-1153 SCREENスクリ-ン |
14037-1153 |
US $89.30 |
||
|
14090
|
14090
14090-1491 COVER,RADIATORカバ-，ラジエ-タ |
14090-1491 |
US $111.69 |
||
|
16142
|
16142
16142-1083 COVER-PUMPカバ-(ポンプ) |
16142-1083 |
US $63.83 |
||
|
27010
|
27010
27010-1202 SWITCH,FANスイツチ，フアン |
27010-1202 |
from US $70.46 |
||
|
32102
|
32102
32102-1719
PIPE,CYLINDER
パイプ，シリンダ |
32102-1719 |
— | ||
|
39060
|
39060
39060-1110 Radiatorラジエ-タ |
39060-1110 |
US $520 |
||
|
39062
|
39062
39062-1257 HOSE-COOLINGホ-ス(ク-リング) |
39062-1257 |
from US $23.94 |
||
|
39062A
|
39062A
39062-1586 HOSE-COOLING,5.5X10.5ホ-ス(ク-リング)，5.5X10.5X420 |
39062-1586 |
US $2.75 |
||
|
39062B
|
39062B
39062-1587
HOSE-COOLING,HEAD-RAD
ホ-ス(ク-リング)，ヘツド - ラジエ-タ |
39062-1587 |
— | ||
|
39062C
|
39062C
39062-1588
HOSE-COOLING,RADIATOR
ホ-ス(ク-リング)，ラジエ-タ - ポンプ |
39062-1588 |
— | ||
|
43078
|
43078
43078-1146
RESERVOIR
リザ-バ |
43078-1146 |
— | ||
|
49063
|
49063
49063-1054
SEAL-MECHANICAL
シ-ル(メカニカル) |
49063-1054 |
— | ||
| replacements | |||||
|
49063
|
49063
49063-1056
SEAL-MECHANICAL
シ-ル(メカニカル) |
49063-1056 |
— | ||
|
49063
|
49063
49063-0002 SEAL-MECHANICALシ-ル(メカニカル) |
49063-0002 |
from US $16.66 |
||
|
49085
|
49085
49085-1066 CAP-ASSY-PRESSUREキヤツプアツシ(プレツシヤ) |
49085-1066 |
from US $33.96 |
||
|
59256
|
59256
59256-1060 IMPELLERインペラ |
59256-1060 |
from US $26.18 |
||
|
59502
|
59502
59502-1102 FAN-ASSYフアンアツシ |
59502-1102 |
from US $574.99 |
||
|
92001
|
92001
92001-1950 BOLT,6X16ボルト，6X16 |
92001-1950 |
from US $2.69 |
||
|
92002
|
92002
92002-1569
BOLT-FLANGED-SMALL,6X
ボルト，6X12 |
92002-1569 |
— | ||
| replacement | |||||
|
92002
|
92002
132BB0612 BOLT-FLANGED-SMALL,6Xボルト，6X12 |
132BB0612 |
from US $0.95 |
||
|
92015
|
92015
92015-1487 NUTナツト |
92015-1487 |
from US $4.25 |
||
|
92022
|
92022
92022-304 WASHER,PLAINワツシヤ，6.2X11X1 |
92022-304 |
from US $2.53 |
||
|
92027
|
92027
92027-1956 COLLARカラ- |
92027-1956 |
US $6.32 |
||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILERクランプ，チユ-ブ |
92037-147 |
from US $4.95 |
||
|
92043
|
92043
92043-1302 PIN,DOWEL,8X10ピン，ドウエル，8X10 |
92043-1302 |
from US $1.45 |
||
|
92150
|
92150
92150-1021 BOLT,6X30ボルト，6X30 |
92150-1021 |
from US $3.37 |
||
| replacement | |||||
|
92150
|
92150
132BB0630 BOLT,6X30ボルト，6X30 |
132BB0630 |
from US $2.69 |
||
|
92150A
|
92150A
92150-1186 BOLT,6X12ボルト，6X12 |
92150-1186 |
from US $2.85 |
||
|
92160
|
92160
92160-1007 DAMPERダンパ |
92160-1007 |
from US $4.09 |
||
|
92170
|
92170
92170-1497 Clamp, cooling hoseクランプ |
92170-1497 |
US $13.27 |
||
| replacement | |||||
|
92170
|
92170
92171-0261 CLAMPクランプ |
92171-0261 |
from US $11.88 |
||
