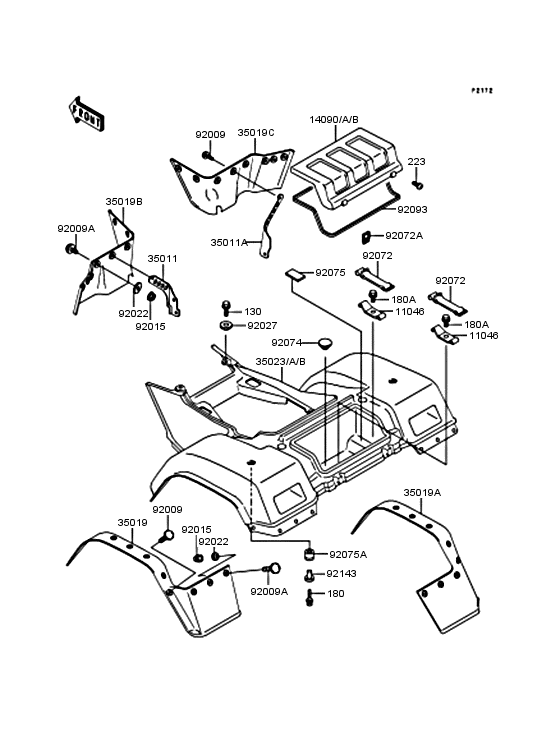

Rear fender Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B7
- Engine Capacity
- 391
- Year
- 1999
- Sales region
- Canada
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- LF400AE 500001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130C0618 BOLT-FLANGED,6X18ボルト(ツバツキ) |
130C0618 |
US $11.90 |
||
| replacement | |||||
|
130
|
130
130BB0618 BOLT-FLANGED,6X18ボルト(ツバツキ) |
130BB0618 |
from US $1.11 |
||
|
180
|
180
180C0635 BOLT-UPSET-WS,6X35ボルト(アプセツトバネツキ)，6X35 |
180C0635 |
US $2.86 |
||
|
180A
|
180A
180D0614
BOLT-UPSET-WS
ボルト(アプセツトバネツキ) |
180D0614 |
— | ||
| replacement | |||||
|
180A
|
180A
180AA0614 BOLT-UPSET-WSボルト(アプセツトバネツキ) |
180AA0614 |
from US $1.09 |
||
|
223
|
223
223C0406 SCREW-PAN-WS-CROS,4X6ナベコネジ(バネツキ+ジアナ)，4X6 |
223C0406 |
from US $1.27 |
||
| replacement | |||||
|
223
|
223
223AB0406 SCREW-PAN-WS-CROS,4X6ナベコネジ(バネツキ+ジアナ)，4X6 |
223AB0406 |
from US $1.09 |
||
|
11046
|
11046
11046-1319 BRACKET,BANDブラケツト，バンド |
11046-1319 |
from US $5.28 |
||
|
14090
|
14090
14090-1160-59 COVER,REAR FENDER,F.Gカバ-，リヤ フエンダ，グリ-ン |
14090-1160-59 |
US $34.07 |
||
|
14090A
|
14090A
14090-1160-6A COVER,REAR FENDER,H.Gカバ-，リヤ フエンダ，グリ-ン |
14090-1160-6A |
from US $50.08 |
||
|
14090B
|
14090B
14090-1160-6L COVER,REAR FENDER,F.REDカバ-，リヤ フエンダ，レツド |
14090-1160-6L |
from US $50.08 |
||
|
35011
|
35011
35011-1618 STAY,RR FENDER,LHステ-，RR フエンダ，LH |
35011-1618 |
US $22.43 |
||
|
35011A
|
35011A
35011-1619 STAY,RR FENDER,RHステ-，RR フエンダ，RH |
35011-1619 |
US $20.95 |
||
|
35019
|
35019
35019-1298-6Z FLAP,RR,LH,BLACKフラツプ，RR，LH，ブラツク |
35019-1298-6Z |
from US $46.65 |
||
|
35019A
|
35019A
35019-1299-6Z FLAP,RR,RH,BLACKフラツプ，RR，RH，ブラツク |
35019-1299-6Z |
from US $51.39 |
||
|
35019B
|
35019B
35019-1325-6Z FLAP,RR,LWR,LH,F.BLACフラツプ，RR，LWR，LH，ブラツク |
35019-1325-6Z |
from US $35.13 |
||
|
35019C
|
35019C
35019-1326-6Z
FLAP,RR,LWR,RH,F.BLAC
フラツプ，RR，LWR，RH，ブラツク |
35019-1326-6Z |
— | ||
|
35023
|
35023
35023-1332-59
FENDER-REAR,F.GREEN
フエンダ(リヤ)，グリ-ン |
35023-1332-59 |
— | ||
|
35023A
|
35023A
35023-1332-6A FENDER-REAR,H.GREENフエンダ(リヤ)，グリ-ン |
35023-1332-6A |
from US $289.02 |
||
|
35023B
|
35023B
35023-1332-6L FENDER-REAR,F.C.REDフエンダ(リヤ)，レツド |
35023-1332-6L |
US $229.68 |
||
|
92009
|
92009
92009-1256 SCREW,6X22,BLACKスクリユ-，6X22，ブラツク |
92009-1256 |
from US $1.74 |
||
|
92009A
|
92009A
92009-1621
SCREW
スクリユ-，6X16 |
92009-1621 |
— | ||
| replacement | |||||
|
92009A
|
92009A
92009-1694 SCREWスクリユ-，6X16 |
92009-1694 |
from US $5.13 |
||
|
92015
|
92015
92015-1675 NUTナツト，ロツク，フランジ，6MM |
92015-1675 |
from US $2.69 |
||
|
92022
|
92022
92022-1093 WASHER,6.5X16X1.0ワツシヤ，6.5X16X1.0 |
92022-1093 |
from US $1.43 |
||
|
92027
|
92027
92027-122 COLLARカラ-，L=4.7 |
92027-122 |
from US $5.07 |
||
|
92072
|
92072
92072-1085 BAND,RESERVE TANKバンド |
92072-1085 |
from US $11.25 |
||
|
92072A
|
92072A
92072-1291 BAND,REAR FENDER COVEバンド，リヤ フエンダ カバ- |
92072-1291 |
from US $9.49 |
||
|
92074
|
92074
92074-038 RUBBER PLUGラバ- プラグ，11X3.2 |
92074-038 |
from US $3.89 |
||
|
92075
|
92075
92075-1830 DAMPERダンパ |
92075-1830 |
from US $3.80 |
||
|
92075A
|
92075A
92075-1936 DAMPERダンパ |
92075-1936 |
from US $2.95 |
||
|
92093
|
92093
92093-1262 SEAL,REAR FENDER COVEシ-ル，リヤ フエンダ カバ- |
92093-1262 |
from US $9.01 |
||
|
92143
|
92143
92143-1100 COLLAR,L=19.6カラ-，L=19.6 |
92143-1100 |
from US $4.82 |
||
