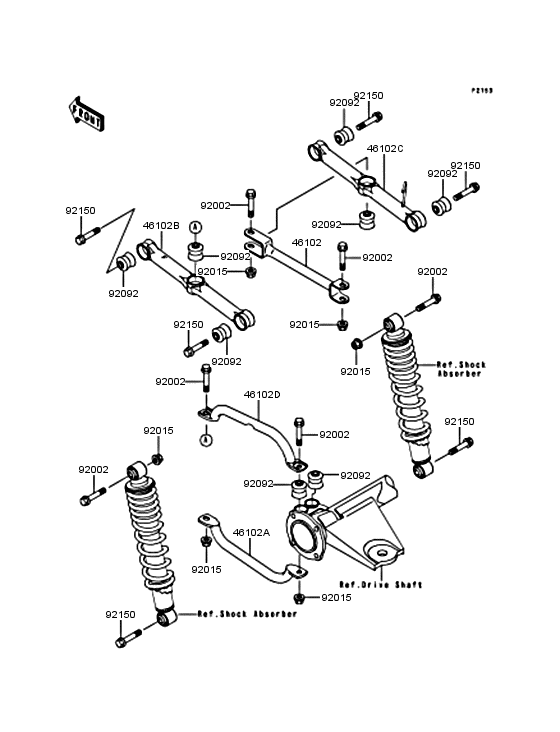

Rear suspension Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B7
- Engine Capacity
- 391
- Year
- 1999
- Sales region
- Canada
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- LF400AE 500001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46102
|
46102
46102-1213 ROD,SUSPENSION,R.CROSロツド，サスペンシヨン，ライト クロス |
46102-1213 |
from US $24.17 |
||
|
46102A
|
46102A
46102-1242 ROD,SUSP,RR,LH INSIDEロツド，サスペンシヨン，RR，LH，インサイド |
46102-1242 |
from US $21.31 |
||
|
46102B
|
46102B
46102-1320 ROD,SUSPENSION,RR,LH,ロツド，サスペンシヨン，RR，LH，アウトサイド |
46102-1320 |
US $29.59 |
||
|
46102C
|
46102C
46102-1321 ROD,SUSPENSION,RR,RH,ロツド，サスペンシヨン，RR，RH，アウトサイド |
46102-1321 |
US $29.59 |
||
|
46102D
|
46102D
46102-1330 ROD,SUSPENSION LF.CRSロツド，サスペンシヨン，レフト クロス |
46102-1330 |
from US $20.06 |
||
|
92002
|
92002
92002-1529 BOLT,FLANGED,10X53.5ボルト，フランジ，10X53.5 |
92002-1529 |
from US $5.70 |
||
|
92015
|
92015
92015-1597 NUT,LOCK,10MMナツト，ロツク，10MM |
92015-1597 |
from US $7.04 |
||
|
92092
|
92092
92092-1064 BUSHING-RUBBERブツシング(ラバ-) |
92092-1064 |
from US $16.13 |
||
|
92150
|
92150
92150-1048 BOLT,FLANGED,10X49ボルト，フランジ，10X49 |
92150-1048 |
from US $4.05 |
