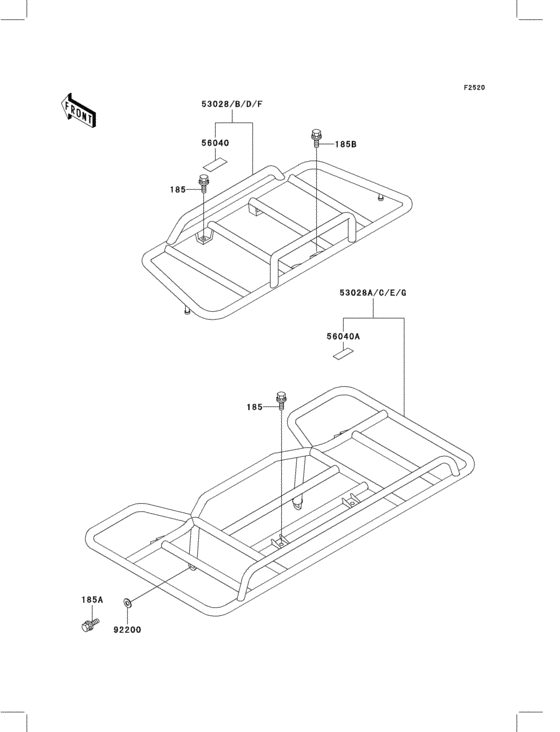

Carrier(s) Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B7
- Engine Capacity
- 391
- Year
- 1999
- Sales region
- Canada
- Frame
- JKALFKB1 XB530201 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
185
|
185
185AB0816 BOLT-UPSET-WSP-SMALL |
185AB0816 |
from US $1.24 |
||
|
185A
|
185A
185J0820 BOLT-UPSET-WSP-SMALL, |
185J0820 |
US $4.12 |
||
| replacement | |||||
|
185A
|
185A
185BB0820 BOLT-UPSET-WSP-SMALL, |
185BB0820 |
from US $1.24 |
||
|
185B
|
185B
185BB0835 BOLT-UPSET-WSP-SMALL, |
185BB0835 |
from US $1.40 |
||
|
56040
|
56040
56040-1321 LABEL-WARNING,MAXIMUM |
56040-1321 |
from US $4.35 |
||
|
56040A
|
56040A
56040-1322 LABEL-WARNING,MAXIMUM |
56040-1322 |
from US $2.47 |
||
|
92200
|
92200
92200-1055 WASHER,8.5X20X2.3 |
92200-1055 |
from US $2.38 |
||
