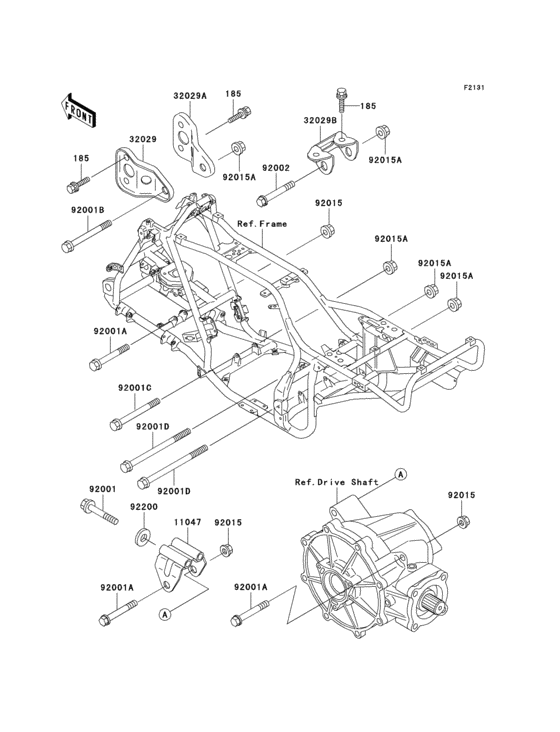

Frame fittings Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B7
- Engine Capacity
- 391
- Year
- 1999
- Sales region
- Canada
- Frame
- JKALFKB1 XB530201 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
185
|
185
185J0816 BOLT-UPSET-WSP-SMALL |
185J0816 |
US $2.93 |
||
|
11047
|
11047
11047-1571 BRACKET,DIFF FITTING |
11047-1571 |
US $27.36 |
||
|
32029
|
32029
32029-1806 BRACKET-ENGINE,FR,UPP |
32029-1806 |
US $11.84 |
||
|
32029A
|
32029A
32029-1807 BRACKET-ENGINE,FR,UPP |
32029-1807 |
US $11.29 |
||
|
32029B
|
32029B
32029-1808 BRACKET-ENGINE,HEAD |
32029-1808 |
US $17.30 |
||
|
92001
|
92001
92002-1349 BOLT,FLANGED,8X70 |
92002-1349 |
from US $3.17 |
||
|
92001A
|
92001A
92001-1618 BOLT,FLANGED,10X70 |
92001-1618 |
from US $6.49 |
||
|
92001B
|
92001B
92001-1720 BOLT,FLANGED,10X125 |
92001-1720 |
from US $6.97 |
||
|
92001C
|
92001C
92001-1780 BOLT,FLANGED,10X115,B |
92001-1780 |
from US $8.71 |
||
|
92001D
|
92001D
92001-1953 BOLT,FLANGED,10X160,B |
92001-1953 |
from US $13.62 |
||
|
92002
|
92002
92002-1738 BOLT,FLANGED,10X61 |
92002-1738 |
US $4.05 |
||
|
92015
|
92015
92210-0276 NUT,LOCK,FLANGED,10MM |
92210-0276 |
from US $1.43 |
||
|
92015A
|
92015A
92015-1727 NUT |
92015-1727 |
from US $2.69 |
||
|
92200
|
92200
92200-1055 WASHER,8.5X20X2.3 |
92200-1055 |
from US $2.38 |
