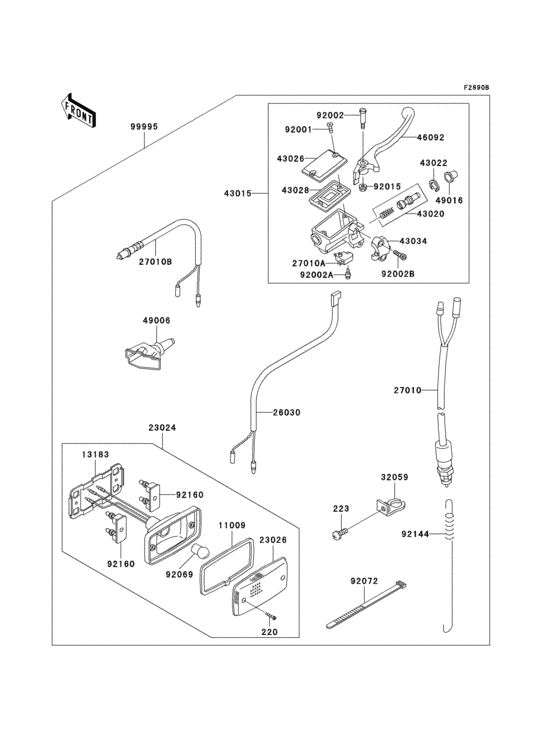

Optional parts(1/2)(brake switch) Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B7
- Engine Capacity
- 391
- Year
- 1999
- Sales region
- Canada
- Frame
- JKALFKB1 XB530201 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220AA0416 SCREW-PAN-CROS |
220AA0416 |
from US $0.94 |
||
|
223
|
223
223AA0612 SCREW-PAN-WS-CROS |
223AA0612 |
from US $0.65 |
||
|
11009
|
11009
11009-4004 GASKET |
11009-4004 |
from US $4.67 |
||
|
13183
|
13183
13183-1261 PLATE,TAIL LAMP |
13183-1261 |
from US $12.12 |
||
|
23024
|
23024
23024-1138 LAMP-ASSY-TAIL |
23024-1138 |
from US $74.81 |
||
|
23026
|
23026
23026-4003 LENS,TAIL LAMP |
23026-4003 |
from US $13.84 |
||
|
26030
|
26030
26030-1058 HARNESS |
26030-1058 |
from US $12.12 |
||
|
27010
|
27010
27010025 SWITCH,BRAKE LIGHT |
27010025 |
from US $19.64 |
||
|
27010A
|
27010A
27010-0025 SWITCH,BRAKE |
27010-0025 |
from US $23.19 |
||
|
27010B
|
27010B
27010-1294 Switch, engine stop |
27010-1294 |
from US $22.55 |
||
|
43015
|
43015
43015-1438 CYLINDER-ASSY-MASTER, |
43015-1438 |
US $332.15 |
||
|
43020
|
43020
43020-1056 PISTON-COMP-BRAKE,FR |
43020-1056 |
from US $42.04 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPER |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1055 CAP-BRAKE,FR |
43026-1055 |
from US $35.31 |
||
|
43028
|
43028
43028-1058 DIAPHRAGM,MASTER CYLI |
43028-1058 |
from US $16.16 |
||
|
43034
|
43034
43034-1053 HOLDER-BRAKE,MASTER C |
43034-1053 |
from US $24.24 |
||
|
46092
|
46092
46092-1167 LEVER-GRIP,FRONT BRAK |
46092-1167 |
US $21.06 |
||
|
49006
|
49006
49006-1261 BOOT |
49006-1261 |
from US $14.31 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDER |
49016-1044 |
from US $10.08 |
||
|
92001
|
92001
92001-1727 BOLT,MASTER CYLINDER |
92001-1727 |
from US $2.85 |
||
|
92002
|
92002
92002-1322 BOLT,LEVER SET |
92002-1322 |
from US $7.13 |
||
|
92002A
|
92002A
92002-1323 BOLT |
92002-1323 |
from US $2.53 |
||
|
92002B
|
92002B
92153-0417 BOLT,SOCKET,6X20 |
92153-0417 |
from US $3.80 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MM |
92015-1233 |
from US $3.90 |
||
|
92069
|
92069
92069-059 BULB,12V 32/3CP |
92069-059 |
from US $5.70 |
||
|
92072
|
92072
92072-030 BAND,SHORT |
92072-030 |
from US $3.01 |
||
|
92144
|
92144
92144-1191 SPRING,BRAKE LAMP SWI |
92144-1191 |
from US $6.49 |
||
|
92160
|
92160
92160-1053 DAMPER,TAIL LAMP |
92160-1053 |
from US $5.13 |
