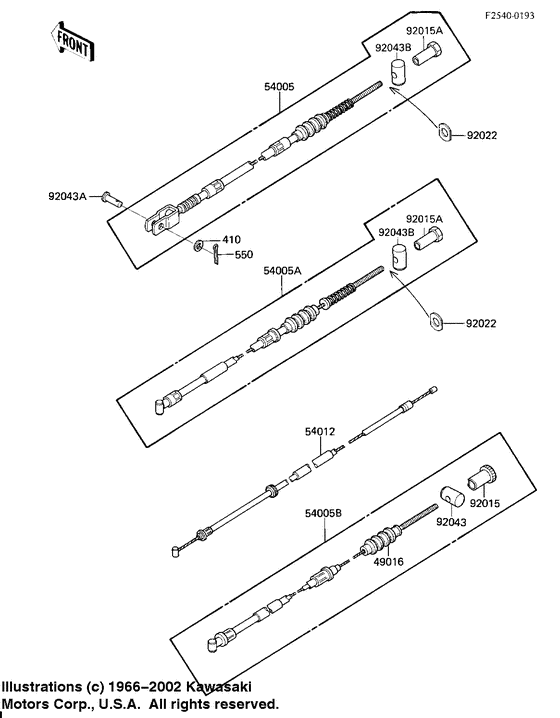

Cables (Klt110-a1) Diagram Kawasaki KLT 110
- Model code
- KLT110-A1
- Engine Capacity
- 110
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4-х таткный
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
410
|
410
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; |
550AA2015 |
from US $0.63 |
||
|
49016
|
49016
54009008 DUST COVER-BRKE CABLEDust cover-brke cable; |
54009008 |
from US $3.43 |
||
|
54005
|
54005
54005-4011 CABLE-BRAKE,RR,LWRCable-brake,rr,lwr; |
54005-4011 |
US $61.16 |
||
|
54005A
|
54005A
54005-4012 CABLE-BRAKE,RR,UPPCable-brake,rr,upp; |
54005-4012 |
US $61.16 |
||
|
54005B
|
54005B
54005-4014 CABLE-BRAKE,FRCable-brake,fr; |
54005-4014 |
US $48.24 |
||
|
54012
|
54012
54012-4003 CABLE-THROTTLE |
54012-4003 |
US $29.95 |
||
|
92015
|
92015
92015-052 NUT-BRAKE ROD ADJUSTNut-brake rod adjust; |
92015-052 |
from US $7 |
||
|
92015A
|
92015A
92015-4026 NUT,CABLE ADJUST LOCKNut,cable adjust lock; |
92015-4026 |
US $7.90 |
||
|
92022
|
92022
92022-4003 WASHER, BRAKE RODWasher, brake rod; |
92022-4003 |
US $0.38 |
||
|
92043
|
92043
92043-082 JOINT-BRAKE RODJoint-brake rod; |
92043-082 |
from US $3.11 |
||
|
92043B
|
92043B
92043-4010 PIN,BRAKE CABLEPin,brake cable; |
92043-4010 |
US $2.84 |
||
