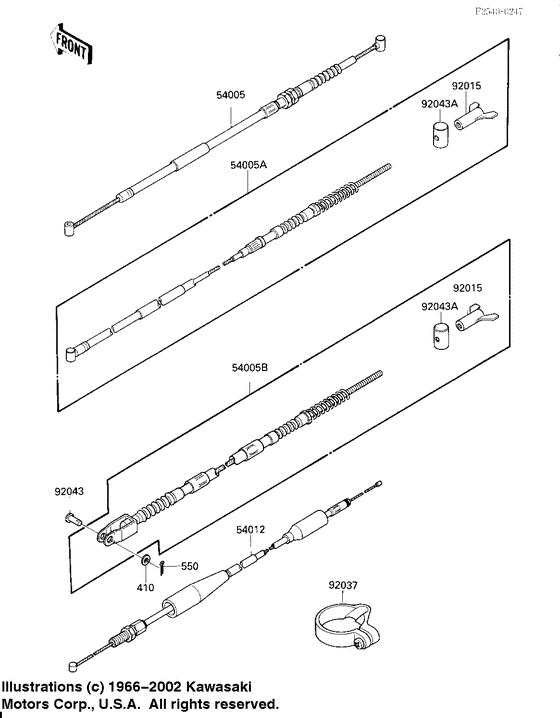

Cables (Klt110-a3) Diagram Kawasaki KLT 110
- Model code
- KLT110-A1
- Engine Capacity
- 110
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4-х таткный
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
410
|
410
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; |
550AA2015 |
from US $0.63 |
||
|
54005
|
54005
54005-1107
CABLE-BRAKE,FR
Cable-brake,fr; |
54005-1107 |
— | ||
|
54005A
|
54005A
54005-1120 CABLE-BRAKE,RR,UPPCable-brake,rr,upp; |
54005-1120 |
US $59.96 |
||
|
54005B
|
54005B
54005-1121 CABLE-BRAKE,RR,LWRCable-brake,rr,lwr; |
54005-1121 |
US $59.96 |
||
|
54012
|
54012
54012-1269 CABLE-THROTTLE |
54012-1269 |
US $32.06 |
||
|
92015
|
92015
92015-1497
NUT,WING,6MM
Nut,wing,6mm; |
92015-1497 |
— | ||
|
92037
|
92037
92037-1548
CLAMP,CABLE
Clamp,cable; |
92037-1548 |
— | ||
|
92043
|
92043
92043-125 PIN |
92043-125 |
from US $3.96 |
||
|
92043A
|
92043A
92043-1280
PIN,12X20
Pin,12x20; |
92043-1280 |
— | ||
