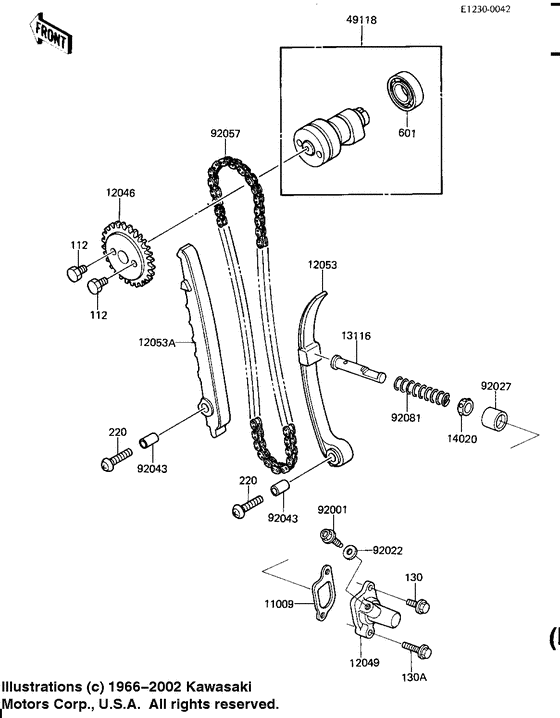

Camshaft/chain/tensioner (Klt110-a1/a2) Diagram Kawasaki KLT 110
- Model code
- KLT110-A1
- Engine Capacity
- 110
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4-х таткный
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112G0610
BOLT,6X10
Bolt,6x10; |
112G0610 |
— | ||
| replacement | |||||
|
112
|
112
112BA0610 BOLT-UPSETBolt,6x10; |
112BA0610 |
from US $0.92 |
||
|
130
|
130
130Y0616 BOLT-FLANGED,6X16 |
130Y0616 |
US $2.95 |
||
| replacement | |||||
|
130
|
130
130BD0616 BOLT-FLANGED,6X16 |
130BD0616 |
from US $1.09 |
||
|
130A
|
130A
130Y0625 BOLT-FLANGED |
130Y0625 |
from US $1.74 |
||
| replacement | |||||
|
130A
|
130A
130BD0625 BOLT-FLANGED |
130BD0625 |
from US $1.40 |
||
|
220
|
220
220B0625
SCREW-PAN-CROSS,6X25
Screw pan head 6x25; |
220B0625 |
— | ||
| replacement | |||||
|
220
|
220
220AA0625 SCREW-PAN-CROSS,6X25Screw pan head 6x25; |
220AA0625 |
from US $0.95 |
||
|
601
|
601
601A6002Z BEARING-BALL |
601A6002Z |
from US $9.49 |
||
|
11009
|
11009
11009-1225 GASKET,CHAIN TENSIONRGasket,chain tensione; |
11009-1225 |
US $3.35 |
||
| replacement | |||||
|
11009
|
11009
11060-1500 GASKET,CHAIN TENSIONRGasket,chain tensione; |
11060-1500 |
from US $3.35 |
||
|
12046
|
12046
12046-1035 SPROCKET,CAM CHAINSprocket,cam chain; |
12046-1035 |
from US $21.74 |
||
|
12049
|
12049
12049-1051 TENSIONER,CAM CHAINTensioner,cam chain; |
12049-1051 |
US $31.66 |
||
| replacement | |||||
|
12049
|
12049
12049-1059 TENSIONER,CAM CHAINTensioner,cam chain; |
12049-1059 |
from US $27.99 |
||
|
12053
|
12053
12053-1082 GUIDE-CHAIN,RRGuide-chain,rr; |
12053-1082 |
from US $24.88 |
||
|
12053A
|
12053A
12053-1087 GUIDE-CHAIN,FRGuide-chain,fr; |
12053-1087 |
from US $23.64 |
||
|
13116
|
13116
13116-1019 ROD,PUSH,CAM CHAINRod,push,cam chain; |
13116-1019 |
from US $10.51 |
||
|
14020
|
14020
14020-1002 RETAINER |
14020-1002 |
US $15.21 |
||
|
49118
|
49118
49118-1005
CAMSHAFT-COMP
|
49118-1005 |
— | ||
|
92001
|
92001
92001-1155 BOLT,TENSIONER ADJUSTBelt,tensioner adjust; |
92001-1155 |
from US $3.48 |
||
|
92022
|
92022
92022-077 WASHER,6.1X12X1Washer oil pump banjo; |
92022-077 |
from US $2.53 |
||
|
92027
|
92027
92027-1733 COLLAR,TENSIONERCollar,tensioner; |
92027-1733 |
from US $8.71 |
||
|
92043
|
92043
92042-007 PIN-DOWELPin-dowel; |
92042-007 |
from US $4.44 |
||
|
92057
|
92057
92057-1116 CHAIN,CAMChain,cam,bf25h,88l; |
92057-1116 |
from US $21.60 |
||
| replacement | |||||
|
92057
|
92057
92057-1448 CHAIN,CAMChain,cam,bf25h,88l; |
92057-1448 |
from US $21.60 |
||
|
92081
|
92081
92081-1105 SPRING,TENSIONERSpring,tensioner; |
92081-1105 |
from US $3.02 |
||
