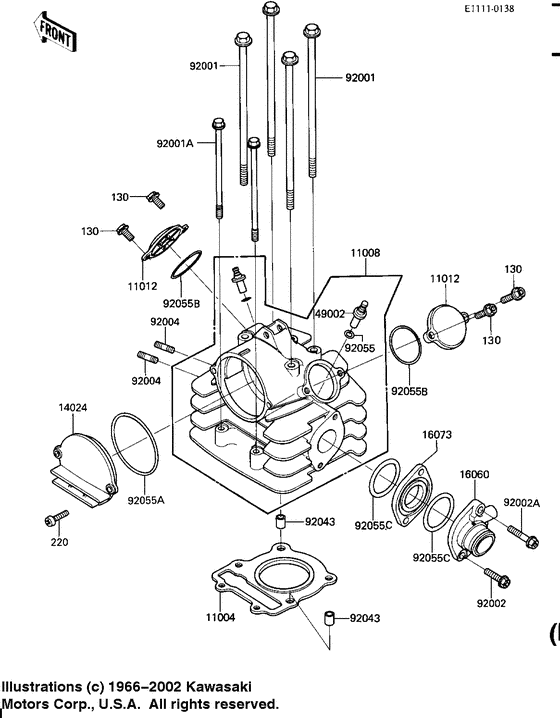

Cylinder head (Klt110-a1/a2) Diagram Kawasaki KLT 110
- Model code
- KLT110-A1
- Engine Capacity
- 110
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4-х таткный
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130Y0620
BOLT-FLNAGED
|
130Y0620 |
— | ||
| replacement | |||||
|
130
|
130
130BD0620 BOLT-FLNAGED |
130BD0620 |
from US $1.24 |
||
|
220
|
220
220X0620 SCREW-PAN-CROS |
220X0620 |
from US $1.27 |
||
| replacement | |||||
|
220
|
220
220AD0620 SCREW-PAN-CROS |
220AD0620 |
from US $1.09 |
||
|
11004
|
11004
11004-1163
GASKET, HEAD
|
11004-1163 |
— | ||
| replacement | |||||
|
11004
|
11004
11004-1293
GASKET, HEAD
|
11004-1293 |
— | ||
|
11008
|
11008
11008-1088 HEAD-COMP-CYLINDER |
11008-1088 |
US $249.59 |
||
|
11012
|
11012
11012-1303 CAP,VALVE ADJUSTINGCap,valve adjusting; |
11012-1303 |
from US $19.96 |
||
| replacement | |||||
|
11012
|
11012
11065-1177 CAP,VALVE ADJUSTINGCap,valve adjusting; |
11065-1177 |
from US $15.68 |
||
|
14024
|
14024
14025-1696 COVER,CAMSHAFTCover,camshaft; |
14025-1696 |
US $19.64 |
||
|
16060
|
16060
16060-1009 PIPE-INTAKE |
16060-1009 |
US $71.14 |
||
|
16073
|
16073
16073-1016 INSULATOR,INTAKE PIPEInsulator,intake pipe; |
16073-1016 |
US $6.21 |
||
|
49002
|
49002
49002-1056 GUIDE-VALVE |
49002-1056 |
from US $18.04 |
||
|
92001
|
92001
92001-1838 BOLT,FLANGED,8X196Bolt,flanged,8x196; |
92001-1838 |
US $10.01 |
||
|
92001A
|
92001A
92001-1839 BOLT,6X106Bolt,flanged,6x106; |
92001-1839 |
US $6.57 |
||
| replacement | |||||
|
92001A
|
92001A
92154-2693 BOLT,6X106Bolt,flanged,6x106; |
92154-2693 |
from US $5.23 |
||
|
92002
|
92002
92002-1235 BOLT,FLANGED,6X25Bolt,6x25; |
92002-1235 |
US $2.56 |
||
| replacement | |||||
|
92002
|
92002
92153-0514 BOLT,FLANGED,6X25Bolt,6x25; |
92153-0514 |
from US $1.25 |
||
|
92002A
|
92002A
92002-1295 BOLT,6X30Bolt,6x30; |
92002-1295 |
US $3.53 |
||
|
92004
|
92004
92004-1127 STUD,6X18Stud,6x18; |
92004-1127 |
from US $3.17 |
||
|
92043
|
92043
92043-1264 PIN,DOWEL,8.2X10X14Pin,dowel,8.2x10x14; |
92043-1264 |
from US $1 |
||
|
92055
|
92055
92055-1177 RING-O,VALVE GUIDERing-o,valve guide; |
92055-1177 |
from US $5.86 |
||
|
92055A
|
92055A
92055-1178 RING-O,68.6MMRing-o,68.6mm; |
92055-1178 |
from US $5.28 |
||
|
92055B
|
92055B
92055-1231 RING-O,ADJUST CAPRing-o,adjust cap; |
92055-1231 |
from US $6.65 |
||
|
92055C
|
92055C
92055-1232 RING-O,30MMRing-o,30mm; |
92055-1232 |
US $9.22 |
||
