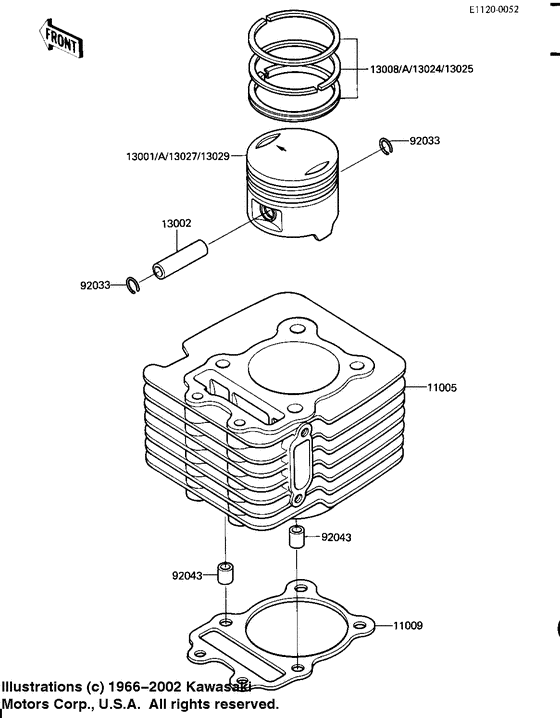

Cylinder/piston (Klt110-a1/a2) Diagram Kawasaki KLT 110
- Model code
- KLT110-A1
- Engine Capacity
- 110
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4-х таткный
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11005
|
11005
11005-1242 CYLINDER-ENGINE |
11005-1242 |
US $262.94 |
||
|
11009
|
11009
11009-1431 GASKET,CYLINDER BASEGasket,cylinder; |
11009-1431 |
from US $6.05 |
||
| replacement | |||||
|
11009
|
11009
11060-1506 GASKET,CYLINDER BASEGasket,cylinder; |
11060-1506 |
from US $6.05 |
||
|
13001
|
13001
13001-1110 PISTON-ENGINE,STDPiston-engine,std; |
13001-1110 |
US $71.75 |
||
|
13002
|
13002
13002-1061 PIN-PISTON |
13002-1061 |
from US $11.05 |
||
|
13008A
|
13008A
13008-5058
RING-SET-PISTON,STD
Ring-set-piston,std; |
13008-5058 |
— | ||
| replacement | |||||
|
13008A
|
13008A
13008-1052
RING-SET-PISTON,STD
Ring-set-piston,std; |
13008-1052 |
— | ||
|
13024
|
13024
13024-1011 RING-SET PISTON LL,0/Ring-set piston ll,0/; |
13024-1011 |
US $35.28 |
||
|
13025
|
13025
13025-1011
RING-SET PISTON L,0/S
Ring-set piston l,0/s; |
13025-1011 |
— | ||
|
13027
|
13027
13027-1057 PISTON-ENGINE LL |
13027-1057 |
US $61.97 |
||
|
13029
|
13029
13029-1060 PISTON-ENGINE L |
13029-1060 |
US $80.62 |
||
|
92033
|
92033
92033-1072 RING-SNAP |
92033-1072 |
from US $2.53 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14Pin,dowel,6.2x8x14; |
92043-1263 |
from US $0.75 |
||
