Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
113	113 113J1225 BOLT-SMALL-FINE,12X25 Bolt-small-fine,12x25;	113J1225	US $3.55
180	180 180B0612 BOLT-UPSET-WS Bolt 6x12;	180B0612	from US $1.11
	replacement
180	180 180AA0612 BOLT-UPSET-WS Bolt 6x12;	180AA0612	from US $1.24
184	184 184J0820 BOLT-UPSET-WP-SMALL	184J0820	from US $1.74
187	187 187B0616 BOLT-UPSET-WSP	187B0616	—
	replacement
187	187 187AA0616 BOLT-UPSET-WSP	187AA0616	from US $1.70
600	600 600A0600 BALL STEEL 3/16' Ball steel 3/16';	600A0600	from US $0.79
600A	600A 600A0800 BALL,6.35MM Ball steel 1/4';	600A0800	from US $0.91
11012	11012 46098-012 CAP,STEERING STEM Cap,steering stem;	46098-012	US $6.59
32002A	32002A 32002-4017 FRAME	32002-4017	US $690.46
32065A	32065A 32065-4011 BRACKET,FENDER-RR Bracket,fender-rr;	32065-4011	US $2.93
55020	55020 55020-4017 GUARD	55020-4017	US $36.67
55020A	55020A 55020-4035 GUARD,CHAIN-CASE Guard,chain-case;	55020-4035	US $42.30
92015	92015 92015-4007 NUT,STEERING STEM Nut,steering stem;	92015-4007	US $21.11
92022	92022 92022-4028 WASHER,10.5X35X4,BLAC Washer,10.5x35x4,blac;	92022-4028	US $6.46
92048	92048 92047-014 CONE,STRG STM BRG,UP Cone,strg stm brg,up;	92047-014	from US $10.61
	replacement
92048	92048 92048-0035 Race,steering Stem Be Cone,strg stm brg,up;	92048-0035	from US $10.61
92048A	92048A 92048-005 RACE STEERING BEARING Race steering bearing;	92048-005	from US $10.77
92048B	92048B 92048-009 RACE,STRG STM BEARING Race,strg stm bearing;	92048-009	from US $11.88
	replacement
92048B	92048B 92048-0038 Race,steering Stem Be Race,strg stm bearing;	92048-0038	from US $11.88
92075	92075 92075-281 DAMPER RUBBER Damper rubber;	92075-281	from US $3.64

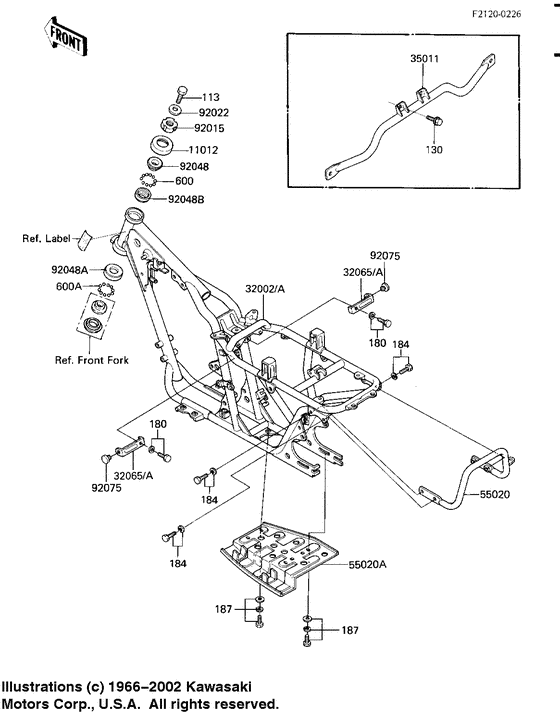

Frame Diagram Kawasaki KLT 110 USA 10391534-683467

Frame Diagram Kawasaki KLT 110 USA 10391534-683467
