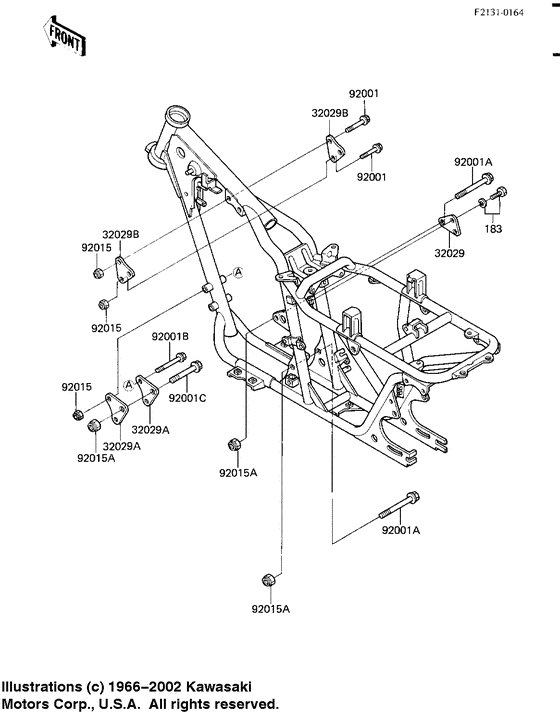

Frame fittings Diagram Kawasaki KLT 110
- Model code
- KLT110-A1
- Engine Capacity
- 110
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4-х таткный
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
183
|
183
183B0818
BOLT-UPSET-WS-SMALL
|
183B0818 |
— | ||
| replacement | |||||
|
183
|
183
183AA0818
BOLT-UPSET-WS-SMALL
|
183AA0818 |
— | ||
|
32029
|
32029
32029-4028 BRACKET-ENGINE |
32029-4028 |
US $14.94 |
||
|
32029A
|
32029A
32029-4037 BRACKET,ENGINE,FRONTBracket,engine,front; |
32029-4037 |
US $14.22 |
||
|
32029B
|
32029B
32029-4038 BRACKET,ENGINE,TOPBracket,engine,top; |
32029-4038 |
US $15.77 |
||
|
92001
|
92001
92001-1641 BOLT,FLANGED,8X55,BLABolt,flanged,8x55,bla; |
92001-1641 |
from US $3.96 |
||
|
92001A
|
92001A
92001-1651 BOLT,FLANGED,10X105Bolt,flanged,10x105; |
92001-1651 |
US $8.59 |
||
| replacement | |||||
|
92001A
|
92001A
92002-1491 BOLT,FLANGED,10X105Bolt,flanged,10x105; |
92002-1491 |
from US $7.76 |
||
|
92001B
|
92001B
92002-1481 BOLT,FLANGED,8X75Bolt,flanged,8x75; |
92002-1481 |
from US $6.02 |
||
|
92001C
|
92001C
92001-4021 BOLT,10X75Bolt,10x75; |
92001-4021 |
from US $5.54 |
||
|
92015
|
92015
92015-1124 NUT,LOCK,8MMNut,lock,8mm; |
92015-1124 |
from US $3.17 |
||
|
92015A
|
92015A
92019-021
Nut,lock,10m/m
Nut,lock,10mm; |
92019-021 |
— | ||
| replacements | |||||
|
92015A
|
92015A
92210-1184 NUTNut,lock,10mm; |
92210-1184 |
from US $4.09 |
||
|
92015A
|
92015A
92015-1962 NUTNut,lock,10mm; |
92015-1962 |
from US $3.33 |
||
