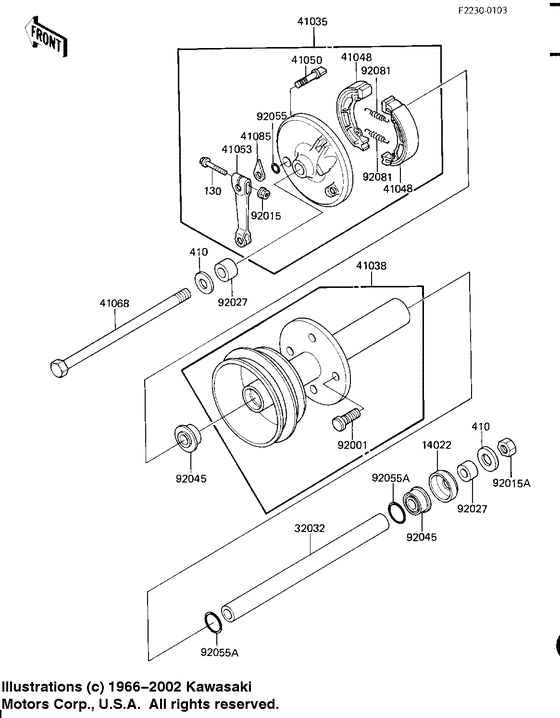

Front hub/brake (Klt110-a1) Diagram Kawasaki KLT 110
- Model code
- KLT110-A1
- Engine Capacity
- 110
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4-х таткный
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0625
BOLT-FLANGED,6X25
Bolt,flanged,6x25; |
130G0625 |
— | ||
| replacement | |||||
|
130
|
130
130BA0625 BOLT-FLANGED,6X25Bolt,flanged,6x25; |
130BA0625 |
from US $0.79 |
||
|
410
|
410
410B1600 WASHER PLAIN 16MM |
410B1600 |
US $7.20 |
||
|
14022
|
14022
14022-4003 CAP-BEARING |
14022-4003 |
US $6.80 |
||
|
32032
|
32032
32032-4109 PIPE,SPACERPipe,spacer; |
32032-4109 |
US $9.23 |
||
|
41035
|
41035
41035-1164 PANEL-ASSY-BRAKE,FRPanel-assy-brake,fr; |
41035-1164 |
US $315.16 |
||
|
41038
|
41038
41038-4013 DRUM ASSY,FRONTDrum assy,front; |
41038-4013 |
US $70.56 |
||
|
41048
|
41048
41048-1085 SHOE-BRAKE |
41048-1085 |
from US $35.72 |
||
|
41050
|
41050
41050018 CAM SHAFT-FRONT BRAKECam shaft-front brake; |
41050018 |
from US $19.76 |
||
|
41053
|
41053
41053005 LEVER FRONT BRAKE CAMLever front brake cam; |
41053005 |
from US $10.27 |
||
|
41068
|
41068
41068-4003 AXLE,FRONTAxle,front; |
41068-4003 |
US $78.61 |
||
|
41085
|
41085
41085013 INDICATOR,FR BK SHOEIndicator,fr bk shoe; |
41085013 |
from US $10.45 |
||
|
92001
|
92001
92001-4006 BOLT,LUGBolt,lug; |
92001-4006 |
US $2.09 |
||
|
92015
|
92015
41072007 NUT,6MMNut,6mm; |
41072007 |
from US $2.85 |
||
|
92015A
|
92015A
92015-1122 NUT,LOCK 14M/MNut,lock 14m/m; |
92015-1122 |
US $6.46 |
||
|
92027
|
92027
92027-4009 COLLAR |
92027-4009 |
US $3.15 |
||
|
92045
|
92045
92045-4005 BEARING BALL HUB-ASSY |
92045-4005 |
US $21.42 |
||
|
92055
|
92055
92055-004 0 RING,11MM"0" ring,11mm; |
92055-004 |
from US $3.17 |
||
|
92055A
|
92055A
92055-4001 0 RING |
92055-4001 |
US $1.28 |
||
|
92081
|
92081
92081-1766 SPRING,BRAKE SHOESpring,brake shoe; |
92081-1766 |
from US $5.39 |
||
