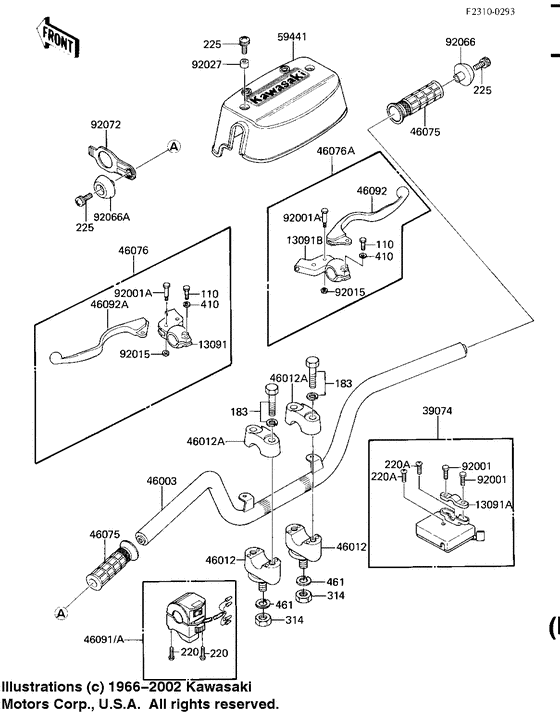

Handlebar (Klt110-a1) Diagram Kawasaki KLT 110
- Model code
- KLT110-A1
- Engine Capacity
- 110
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4-х таткный
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
110
|
110
110N0625 BOLT-UPSET |
110N0625 |
US $35.80 |
||
| replacement | |||||
|
110
|
110
112N0625 BOLT-UPSET |
112N0625 |
from US $1.09 |
||
|
183
|
183
183B0835 BOLT-UPSET-WS-SMALL |
183B0835 |
US $0.79 |
||
| replacement | |||||
|
183
|
183
183AA0835 BOLT-UPSET-WS-SMALL |
183AA0835 |
US $0.79 |
||
|
220
|
220
220B0535 SCREW-PAN-CROS |
220B0535 |
US $1.11 |
||
| replacement | |||||
|
220
|
220
220AA0535 SCREW-PAN-CROS |
220AA0535 |
from US $0.95 |
||
|
220A
|
220A
220C0610 SCREW-PAN-CROSSScrew-pan-cros,6x10,b; |
220C0610 |
from US $1.27 |
||
| replacement | |||||
|
220A
|
220A
220AB0610 SCREW-PAN-CROSSScrew-pan-cros,6x10,b; |
220AB0610 |
from US $0.94 |
||
|
225
|
225
225C0620
SCREW-PAN-WSP-CROS,6X
Screw-pan-wsp-cros,6x; |
225C0620 |
— | ||
| replacement | |||||
|
225
|
225
225AB0620 SCREW-PAN-WSP-CROS,6XScrew-pan-wsp-cros,6x; |
225AB0620 |
from US $1.09 |
||
|
314
|
314
314B1000
NUT-HEX-FINE
Nut,10mm; |
314B1000 |
— | ||
| replacement | |||||
|
314
|
314
314AA1000 NUT-HEX-FINENut,10mm; |
314AA1000 |
from US $1.01 |
||
|
410
|
410
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
461
|
461
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
461
|
461
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
13091
|
13091
13091-4015 HOLDER |
13091-4015 |
US $21.46 |
||
|
13091A
|
13091A
13091-4017 HOLDER,THROTTLE LEVERHolder,throttle lever; |
13091-4017 |
US $8.41 |
||
|
13091B
|
13091B
13091-4018 HOLDER,FRONT BRAKE LEHolder,front brake le; |
13091-4018 |
US $24.39 |
||
|
39074
|
39074
39074-4002 LEVER-ASSY-THROTTLE |
39074-4002 |
US $50.90 |
||
|
46003
|
46003
46003-4006 HANDLEBAR,BLACKHandlebar,black; |
46003-4006 |
US $34.38 |
||
|
46012
|
46012
46012-002-80
HOLDER,HANDLEBAR,BUFF
Holder,handlebar,buff; |
46012-002-80 |
— | ||
|
46012A
|
46012A
46012-004
HOLDER UPPER HANDLBAR
Holder upper handlbar; |
46012-004 |
— | ||
| replacement | |||||
|
46012A
|
46012A
46012-1252 HOLDER-HANDLE,UPPHolder upper handlbar; |
46012-1252 |
US $15.36 |
||
|
46075
|
46075
46075-4003
GRIP
Grip,rh; |
46075-4003 |
— | ||
| replacement | |||||
|
46075
|
46075
46075-1056 GRIPGrip,rh; |
46075-1056 |
from US $22.75 |
||
|
46076
|
46076
46076-4001 LEVER-ASSY-GRIP |
46076-4001 |
US $24.32 |
||
|
46076A
|
46076A
46076-4003 LEVER-ASSY-GRIP |
46076-4003 |
US $22.23 |
||
|
46091
|
46091
46091-1392 HOUSING-ASSY-CONTROL,Housing-assy-control,; |
46091-1392 |
US $128.74 |
||
|
46091A
|
46091A
46091-1392 HOUSING-ASSY-CONTROL,Housing-assy-control,; (substitutes 46091-1392) |
46091-1392 |
US $128.74 |
||
|
46092
|
46092
46092-1014
LEVER,FRONT BRAKE
Lever,front brake; |
46092-1014 |
— | ||
|
46092A
|
46092A
46092-1015 LEVER,CLUTCHLever,clutch; |
46092-1015 |
US $18.32 |
||
|
59441
|
59441
59441-4001
COVER-HANDLEBAR
|
59441-4001 |
— | ||
|
92001
|
92001
92001-4024 BOLT |
92001-4024 |
US $2.50 |
||
|
92001A
|
92001A
92007-046 BOLT,HEX HEAD,5X22Bolt,hex head,5x22; |
92007-046 |
from US $4.59 |
||
|
92015
|
92015
92019-014 NUT-LOCK,5MMNut-lock,5mm; |
92019-014 |
from US $3.01 |
||
|
92027
|
92027
92027-129 COLLAR,6.8X10X8.5Collar,6.8x10x8.5; |
92027-129 |
from US $3.17 |
||
|
92066
|
92066
92066-1191
PLUG,HANDLE
Plug,handle; |
92066-1191 |
— | ||
|
92066A
|
92066A
92066-4005 PLUG,BRAKE LEVERPlug,brake lever; |
92066-4005 |
US $1.64 |
||
|
92072
|
92072
92072-4007 BAND-BRAKE LEVER |
92072-4007 |
US $1.10 |
||
