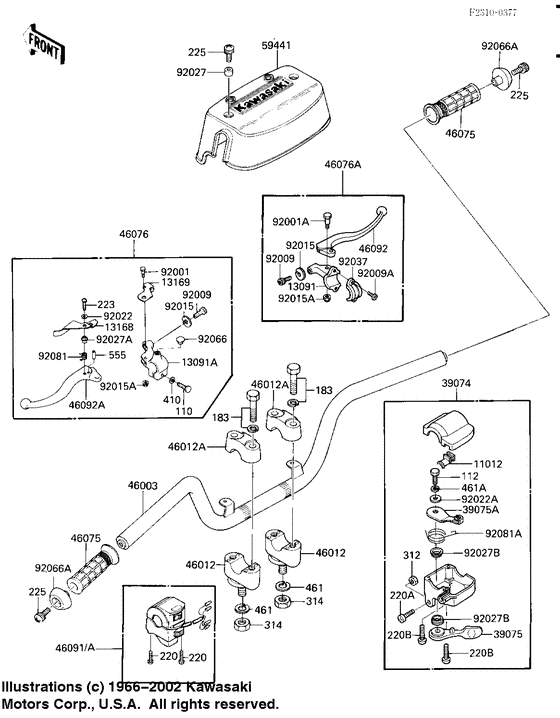

Handlebar (Klt110-a3) Diagram Kawasaki KLT 110
- Model code
- KLT110-A1
- Engine Capacity
- 110
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4-х таткный
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
110
|
110
110N0625 BOLT-UPSET |
110N0625 |
US $35.80 |
||
| replacement | |||||
|
110
|
110
112N0625 BOLT-UPSET |
112N0625 |
from US $1.09 |
||
|
112
|
112
112D0614 BOLT-UPSET |
112D0614 |
US $2.59 |
||
| replacement | |||||
|
112
|
112
112AA0614 BOLT-UPSET |
112AA0614 |
from US $0.82 |
||
|
183
|
183
183B0835 BOLT-UPSET-WS-SMALL |
183B0835 |
US $0.79 |
||
| replacement | |||||
|
183
|
183
183AA0835 BOLT-UPSET-WS-SMALL |
183AA0835 |
US $0.79 |
||
|
220
|
220
220B0535 SCREW-PAN-CROS |
220B0535 |
US $1.11 |
||
| replacement | |||||
|
220
|
220
220AA0535 SCREW-PAN-CROS |
220AA0535 |
from US $0.95 |
||
|
220A
|
220A
220C0525
SCREW-PAN-CROS
|
220C0525 |
— | ||
| replacement | |||||
|
220A
|
220A
220AB0525 SCREW-PAN-CROS |
220AB0525 |
from US $0.95 |
||
|
220B
|
220B
220C0530
SCREW-PAN-CROSS
|
220C0530 |
— | ||
| replacement | |||||
|
220B
|
220B
220AB0530 SCREW-PAN-CROSS |
220AB0530 |
from US $0.95 |
||
|
223
|
223
223B0420 SCREW-PAN-WS-CROS |
223B0420 |
US $0.34 |
||
|
225
|
225
225C0620
SCREW-PAN-WSP-CROS,6X
Screw-pan-wsp-cros,6x; |
225C0620 |
— | ||
| replacement | |||||
|
225
|
225
225AB0620 SCREW-PAN-WSP-CROS,6XScrew-pan-wsp-cros,6x; |
225AB0620 |
from US $1.09 |
||
|
312
|
312
312C0500
Nut-hex
|
312C0500 |
— | ||
| replacement | |||||
|
312
|
312
312AB0500
Nut-hex,5mm
|
312AB0500 |
— | ||
|
314
|
314
314B1000
NUT-HEX-FINE
Nut,10mm; |
314B1000 |
— | ||
| replacement | |||||
|
314
|
314
314AA1000 NUT-HEX-FINENut,10mm; |
314AA1000 |
from US $1.01 |
||
|
410
|
410
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
461
|
461
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
461
|
461
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
461A
|
461A
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
461A
|
461A
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
555
|
555
555A0316 PIN-SPRING,3X16Pin-spring,3x16; |
555A0316 |
from US $1.58 |
||
|
11012
|
11012
11012-1425 LEVER-ASSY-THROTTLE |
11012-1425 |
US $66.80 |
||
| replacements | |||||
|
11012
|
11012
39074-1055 LEVER-ASSY-THROTTLE |
39074-1055 |
from US $48.99 |
||
|
11012
|
11012
39074-0012 Lever-Assy-Throttle |
39074-0012 |
US $89.18 |
||
|
13091
|
13091
13091-1418
HOLDER,RH
Holder,rh; |
13091-1418 |
— | ||
|
13091A
|
13091A
4609401121 HOLDER,F.BLACKHolder-clutch lev,blk; |
4609401121 |
from US $23.64 |
||
|
13168
|
13168
13168-1224
LEVER,LOCK
Lever,lock; |
13168-1224 |
— | ||
|
13169
|
13169
13169-1398
PLATE,CLUTCH LOCK
Plate,clutch lock; |
13169-1398 |
— | ||
|
39074
|
39074
39074-1052 LEVER-ASSY-THROTTLE |
39074-1052 |
US $66.80 |
||
| replacements | |||||
|
39074
|
39074
39074-1055 LEVER-ASSY-THROTTLE |
39074-1055 |
from US $48.99 |
||
|
39074
|
39074
39074-0012 Lever-Assy-Throttle |
39074-0012 |
US $89.18 |
||
|
39075
|
39075
39075-1053 LEVER-THROTTLE |
39075-1053 |
US $25.27 |
||
| replacement | |||||
|
39075
|
39075
39075-1059 LEVER-THROTTLE |
39075-1059 |
from US $18.82 |
||
|
39075A
|
39075A
39075-1054 LEVER-THROTTLE,ARMLever-throttle,arm; |
39075-1054 |
from US $6.84 |
||
|
46003
|
46003
46003-1209 HANDLE |
46003-1209 |
US $34.74 |
||
|
46012
|
46012
46012-002-80
HOLDER,HANDLEBAR,BUFF
Holder,handlebar,buff; |
46012-002-80 |
— | ||
|
46012A
|
46012A
46012-004
HOLDER UPPER HANDLBAR
Holder upper handlbar; |
46012-004 |
— | ||
| replacement | |||||
|
46012A
|
46012A
46012-1252 HOLDER-HANDLE,UPPHolder upper handlbar; |
46012-1252 |
US $15.36 |
||
|
46075
|
46075
46075-4003
GRIP
Grip,rh; |
46075-4003 |
— | ||
| replacement | |||||
|
46075
|
46075
46075-1056 GRIPGrip,rh; |
46075-1056 |
from US $22.75 |
||
|
46076
|
46076
46076-1115
Superceded
Lever-assy-grip,clutc; |
46076-1115 |
— | ||
| replacements | |||||
|
46076
|
46076
46076-1225 LEVER-ASSY-GRIP,LHLever-assy-grip,clutc; |
46076-1225 |
from US $38.92 |
||
|
46076
|
46076
46076-1143
LEVER-ASSY-GRIP,LH
Lever-assy-grip,clutc; |
46076-1143 |
— | ||
|
46076
|
46076
46076-0179 Lever-Assy-Grip,LhLever-assy-grip,clutc; |
46076-0179 |
US $49.69 |
||
|
46076
|
46076
46076-0179 Lever-Assy-Grip,LhLever-assy-grip,clutc; |
46076-0179 |
US $49.69 |
||
|
46076A
|
46076A
46076-1134 LEVER-ASSY-GRIP,RHLever-assy-grip,rh; |
46076-1134 |
US $35.71 |
||
|
46091
|
46091
46091-1392 HOUSING-ASSY-CONTROL,Housing-assy-control,; |
46091-1392 |
US $128.74 |
||
|
46091A
|
46091A
46091-1392 HOUSING-ASSY-CONTROL,Housing-assy-control,; (substitutes 46091-1392) |
46091-1392 |
US $128.74 |
||
|
46092
|
46092
46092-1014
LEVER,FRONT BRAKE
Lever,front brake; |
46092-1014 |
— | ||
|
46092A
|
46092A
46092-1107 LEVER-GRIP,CLUTCHLever-grip,clutch; |
46092-1107 |
US $15.50 |
||
|
59441
|
59441
59441-4001
COVER-HANDLEBAR
|
59441-4001 |
— | ||
|
92001
|
92001
92007-039
BOLT,5MM
Bolt,5mm; |
92007-039 |
— | ||
|
92001A
|
92001A
92007-046 BOLT,HEX HEAD,5X22Bolt,hex head,5x22; |
92007-046 |
from US $4.59 |
||
|
92009
|
92009
46055003 SCREW CABLE ADJUSTScrew cable adjust; |
46055003 |
from US $11.09 |
||
|
92009A
|
92009A
92009-1367 SCREW,5X18Screw,5x18; |
92009-1367 |
from US $2.65 |
||
|
92015
|
92015
46056005 NUT-LOCKNut-lock; |
46056005 |
from US $6.02 |
||
|
92015A
|
92015A
92019-014 NUT-LOCK,5MMNut-lock,5mm; |
92019-014 |
from US $3.01 |
||
|
92022
|
92022
92022-1245
WASHER,4X12X1
Washer,4x12x1; |
92022-1245 |
— | ||
|
92022A
|
92022A
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
92022A
|
92022A
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
92027
|
92027
92027-129 COLLAR,6.8X10X8.5Collar,6.8x10x8.5; |
92027-129 |
from US $3.17 |
||
|
92027A
|
92027A
92027-1336
COLLAR,RETURN SPRING
Collar,return spring; |
92027-1336 |
— | ||
|
92027B
|
92027B
92027-1982
COLLAR
|
92027-1982 |
— | ||
| replacement | |||||
|
92027B
|
92027B
92143-1138 COLLAR |
92143-1138 |
from US $1.71 |
||
|
92037
|
92037
92037-1621 CLAMP,LEVER HOLDERClamp,lever holder; |
92037-1621 |
from US $16.95 |
||
|
92066
|
92066
92066-1077 PLUG,9.5X8Plug,9.5x8; |
92066-1077 |
from US $3.01 |
||
|
92066A
|
92066A
92066-1191
PLUG,HANDLE
Plug,handle; |
92066-1191 |
— | ||
|
92081
|
92081
92081-1358 SPRING,CLUTCH LOCK RESpring,clutch lock re; |
92081-1358 |
from US $2.95 |
||
|
92081A
|
92081A
92081-1685
LEVER-ASSY-THROTTLE
|
92081-1685 |
— | ||
| replacements | |||||
|
92081A
|
92081A
39074-1055 LEVER-ASSY-THROTTLE |
39074-1055 |
from US $48.99 |
||
|
92081A
|
92081A
39074-0012 Lever-Assy-Throttle |
39074-0012 |
US $89.18 |
||
