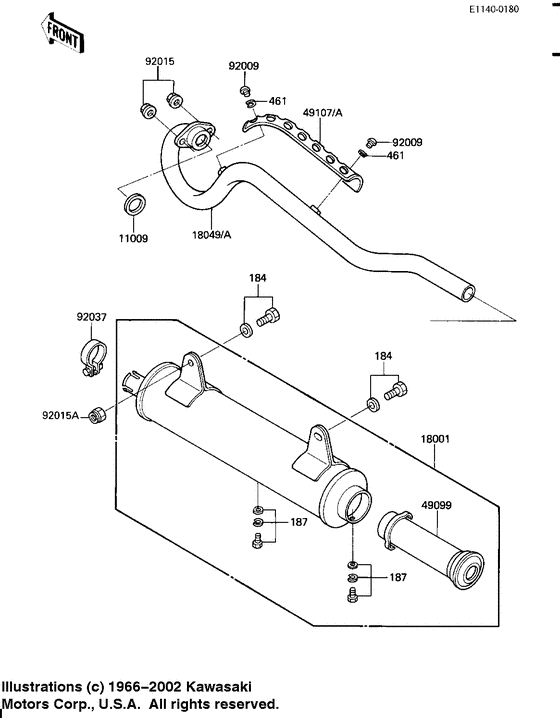

Muffler Diagram Kawasaki KLT 110
- Model code
- KLT110-A1
- Engine Capacity
- 110
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4-х таткный
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
184
|
184
184J0820 BOLT-UPSET-WP-SMALL |
184J0820 |
from US $1.74 |
||
|
187
|
187
187B0612
BOLT-UPSET-WSP
Bolt 6x12; |
187B0612 |
— | ||
| replacement | |||||
|
187
|
187
187AA0612 BOLT-UPSET-WSPBolt 6x12; |
187AA0612 |
from US $1.11 |
||
|
461
|
461
461K0600
WASHER-SPRING
Washer-spring,6mm,bla; |
461K0600 |
— | ||
| replacement | |||||
|
461
|
461
461DB0600 WASHER-SPRINGWasher-spring,6mm,bla; |
461DB0600 |
from US $0.79 |
||
|
11009
|
11009
11009-1380 GASKET,EXHAUST PIPEGasket,exhaust pipe; |
11009-1380 |
US $6.82 |
||
| replacement | |||||
|
11009
|
11009
11060-1488 GASKET,EXHAUST PIPEGasket,exhaust pipe; |
11060-1488 |
from US $7.78 |
||
|
18001
|
18001
18001-1480
MUFFLER,F.BLACK
Muffler,f.black; |
18001-1480 |
— | ||
|
18049
|
18049
18049-1202 PIPE,EXHAUSTPipe,exhaust; |
18049-1202 |
US $93.74 |
||
|
49099
|
49099
49099-1223 BAFFLE-PIPE MUFFLER |
49099-1223 |
US $63.65 |
||
|
49107
|
49107
49107-1059 COVER-EXHAUST-PIPECover-exhaust-pipe; |
49107-1059 |
US $17.10 |
||
|
92009
|
92009
92009-1285 SCREW,6X6.7,BLACKScrew,6x6.7,black; |
92009-1285 |
US $2.09 |
||
| replacement | |||||
|
92009
|
92009
92172-0104 SCREW,6X6.7Screw,6x6.7,black; |
92172-0104 |
from US $1.40 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
92015A
|
92015A
92015-1205 NUT,U,8MM,BLACKNut,u,8mm,black; |
92015-1205 |
from US $3.47 |
||
|
92037
|
92037
92037-1035
CLAMP,MUFFLER FITTING
Clamp,muffler fitting; |
92037-1035 |
— | ||
