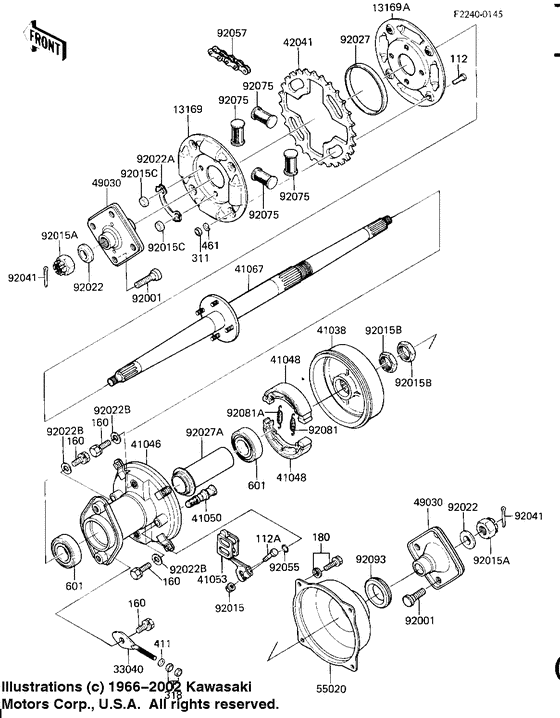

Rear hub/axle/brake/chain (Klt110-a3) Diagram Kawasaki KLT 110
- Model code
- KLT110-A3
- Engine Capacity
- 110
- Year
- 1986
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4-х таткный
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
112
|
112
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
112A
|
112A
112H0640 BOLT-UPSET |
112H0640 |
US $3.04 |
||
| replacement | |||||
|
112A
|
112A
112BA0640 BOLT-UPSET |
112BA0640 |
from US $1.09 |
||
|
160
|
160
160H1225 BOLT-FINE-WS |
160H1225 |
US $4.77 |
||
|
180
|
180
180D0612 BOLT-UPSET-WS |
180D0612 |
US $2.81 |
||
| replacement | |||||
|
180
|
180
180AA0612 BOLT-UPSET-WS |
180AA0612 |
from US $1.24 |
||
|
311
|
311
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
311
|
311
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
318
|
318
318G0800
NUT-HEX-SMALL,8MM
Nut 8mm; |
318G0800 |
— | ||
| replacement | |||||
|
318
|
318
318BA0800 NUT-HEX-SMALL,8MMNut 8mm; |
318BA0800 |
from US $0.63 |
||
|
411
|
411
411B0800
WASHER PLAIN 8MM
Washer plain 8mm; |
411B0800 |
— | ||
| replacement | |||||
|
411
|
411
411AA0800 WASHER-PLAINWasher plain 8mm; |
411AA0800 |
from US $0.72 |
||
|
461
|
461
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
461
|
461
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
601
|
601
601A6007UU BEARING-BALL |
601A6007UU |
US $33.41 |
||
|
13169
|
13169
13169-1754 PLATE,RR SPROCKETTPlate,rr sprockett; |
13169-1754 |
US $43.58 |
||
|
13169A
|
13169A
13169-4021 PLATE-SPROCKET GUIDE |
13169-4021 |
US $47.11 |
||
|
33040
|
33040
33040-4006
ADJUSTER-CHAIN
|
33040-4006 |
— | ||
|
41038
|
41038
41038-1162 DRUM,RR BRAKEDrum,rr brake; |
41038-1162 |
US $162.81 |
||
|
41046
|
41046
41046-4006 HOUSING,BEARINGHousing,bearing; |
41046-4006 |
US $84.62 |
||
|
41048
|
41048
41048-1025 SHOE-BRAKEShoe-brake,rr; |
41048-1025 |
US $70.74 |
||
| replacement | |||||
|
41048
|
41048
41048-1076 SHOE-BRAKEShoe-brake,rr; |
41048-1076 |
from US $30.75 |
||
|
41050
|
41050
42026026 CAM SHAFT,REAR BRAKECam shaft,rear brake; |
42026026 |
US $21.54 |
||
|
41053
|
41053
41053-4004 LEVER-BRAKE CAM |
41053-4004 |
US $30.87 |
||
|
41067
|
41067
41067-1287 AXLE-ASSY,RRAxle-assy,rr; |
41067-1287 |
US $445.52 |
||
|
42041
|
42041
42041-4006 SPROCKET-HUB |
42041-4006 |
US $86.67 |
||
|
49030
|
49030
49030-1075-F2 HUB-RR.G.SILVER |
49030-1075-F2 |
US $41.53 |
||
|
55020
|
55020
55020-4036 GUARD,RR-BRAKE-DRUMGuard,rr-brake-drum; |
55020-4036 |
US $16.45 |
||
|
92001
|
92001
92001-4006 BOLT,LUGBolt,lug; |
92001-4006 |
US $2.09 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
92015A
|
92015A
42045018 NUT CASTLE,18MMNut castle,18mm; |
42045018 |
from US $7.76 |
||
|
92015B
|
92015B
92015-1493 NUT,LOCK,32MMNut,lock,32mm; |
92015-1493 |
US $12.29 |
||
|
92015C
|
92015C
92015-1429 NUT,LOCK,10MMNut,10mm; |
92015-1429 |
from US $4.12 |
||
|
92022
|
92022
92022-1658 WASHER,18.3X34X4.5Washer,18.3x34x4.5; |
92022-1658 |
from US $3.17 |
||
|
92022A
|
92022A
92022-4025 WASHER,LOCKWasher,lock; |
92022-4025 |
US $2.21 |
||
|
92022B
|
92022B
92022-4037 WASHER,12.5X28X4.5Washer,12.5x28x4.5; |
92022-4037 |
US $8.42 |
||
|
92027
|
92027
92027-1731 COLLAR,102X109X9Collar,102x109x9; |
92027-1731 |
US $26.48 |
||
|
92027A
|
92027A
92027-4025 COLLAR |
92027-4025 |
US $16.83 |
||
|
92041
|
92041
92041-1053 COTTER,4.0X35Cotter,4.0x35; |
92041-1053 |
from US $2.33 |
||
|
92055
|
92055
92055-004 0 RING,11MM"0" ring,11mm; |
92055-004 |
from US $3.17 |
||
|
92057
|
92057
92057-4010 DR CHAIN,EK428SH 100LDr chain,ek428sh 100l; |
92057-4010 |
US $368.26 |
||
|
92075
|
92075
92075-4034 DAMPER |
92075-4034 |
US $17.75 |
||
|
92081
|
92081
92081-1550 SPRING,BRAKE SHOESpring,brake shoe; |
92081-1550 |
from US $6.34 |
||
|
92081A
|
92081A
92081-1766 SPRING,BRAKE SHOESpring,brake shoe; |
92081-1766 |
from US $5.39 |
||
|
92093
|
92093
92093-4008 SEAL |
92093-4008 |
US $13.14 |
||
