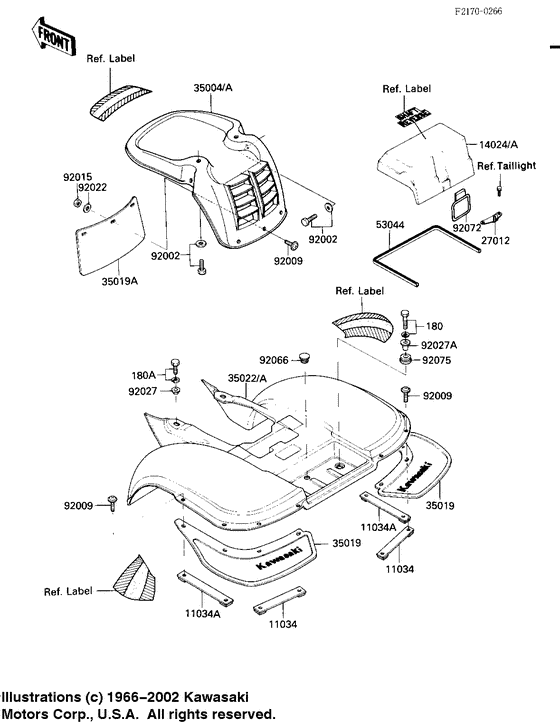

Fenders Diagram Kawasaki KLT 160
- Model code
- KLT160-A1
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
180
|
180
180C0622
BOLT-UPSET-WS
|
180C0622 |
— | ||
|
180A
|
180A
180D0614
BOLT-UPSET-WS
|
180D0614 |
— | ||
| replacement | |||||
|
180A
|
180A
180AA0614 BOLT-UPSET-WS |
180AA0614 |
from US $1.09 |
||
|
11034
|
11034
11034-4062 BRACKET,FLAPBracket,flap; |
11034-4062 |
US $7.65 |
||
|
11034A
|
11034A
11034-4063 BRACKET,FLAPBracket,flap; |
11034-4063 |
US $8.03 |
||
|
14024
|
14024
14025-1921-6D COVER,SEAT,EBONYCover,seat,ebony; |
14025-1921-6D |
US $37.15 |
||
|
14024A
|
14024A
14025-1921-8S COVER,SEAT,REDCover,seat,red; |
14025-1921-8S |
US $37.15 |
||
|
27012
|
27012
27012-1319 HOOK,TAIL LAMPHook,tail lamp; |
27012-1319 |
US $8.28 |
||
|
35004
|
35004
35004-1160-6D
FENDER-FR,EBONY
Fender-fr,ebony; |
35004-1160-6D |
— | ||
|
35004A
|
35004A
35004-1160-8S
FENDER-FR,W.RED
Fender-fr,w.red; |
35004-1160-8S |
— | ||
|
35019
|
35019
35019-4005
FLAP,RR FENDER
Flap,rr fender; |
35019-4005 |
— | ||
|
35019A
|
35019A
35019-4008
FLAP,FR FENDER
Flap,fr fender; |
35019-4008 |
— | ||
|
35022
|
35022
35022-4004-6D
FENDER-RR,BLACK
Fender-rr,black; |
35022-4004-6D |
— | ||
|
35022A
|
35022A
35022-4004-8S
FENDER-RR,RED
Fender-rr,red; |
35022-4004-8S |
— | ||
|
53044
|
53044
53044-1129 TRIM,SEAT COVERTrim,seat cover; |
53044-1129 |
US $28.87 |
||
|
92002
|
92002
92001-1944
BOLT,W/SP,6X18
Bolt,6x18; |
92001-1944 |
— | ||
| replacement | |||||
|
92002
|
92002
92001-1764
BOLT,W/SP,6X18
Bolt,6x18; |
92001-1764 |
— | ||
|
92009
|
92009
92009-1287
Screw,6x14
Screw,6x14; |
92009-1287 |
— | ||
| replacement | |||||
|
92009
|
92009
92172-0401 SCREW,6X14Screw,6x14; |
92172-0401 |
from US $1.11 |
||
|
92015
|
92015
92015-1410 NUT,6MMNut,6mm; |
92015-1410 |
from US $2.33 |
||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
92027
|
92027
92027-122 COLLAR |
92027-122 |
from US $5.07 |
||
|
92027A
|
92027A
92027-1767 COLLAR |
92027-1767 |
from US $3.33 |
||
|
92066
|
92066
92074-038 RUBBER PLUGRubber plug; |
92074-038 |
from US $3.89 |
||
|
92072
|
92072
92072-4008
BAND
|
92072-4008 |
— | ||
|
92075
|
92075
92075-112 DAMPER RUBBERDamper rubber; |
92075-112 |
from US $2.85 |
||
