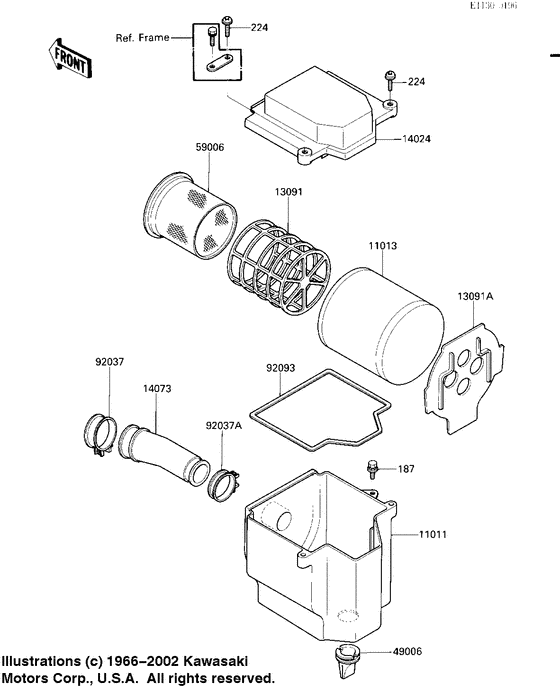

Air cleaner Diagram Kawasaki KLT 185
- Model code
- KLT185-A1
- Year
- 1986
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
187
|
187
187B0616
BOLT-UPSET-WSP
|
187B0616 |
— | ||
| replacement | |||||
|
187
|
187
187AA0616 BOLT-UPSET-WSP |
187AA0616 |
from US $1.70 |
||
|
224
|
224
224B0620
SCREW-PAN-WP-CROS,6X2
|
224B0620 |
— | ||
| replacement | |||||
|
224
|
224
224AA0620 SCREW-PAN-WP-CROS,6X2 |
224AA0620 |
from US $0.92 |
||
|
11011
|
11011
11011-1215
CASE-AIR FILTER
|
11011-1215 |
— | ||
|
11013
|
11013
11013-1130 Element-air filter |
11013-1130 |
from US $56.13 |
||
|
13091
|
13091
13091-1121
HOLDER,ELEMENT
Holder,element; |
13091-1121 |
— | ||
|
13091A
|
13091A
13091-1125
HOLDER,ELEMENT
Holder,element; |
13091-1125 |
— | ||
|
14024
|
14024
14024-1141
COVER,AIR FILTER
Cover,air filter; |
14024-1141 |
— | ||
|
14073
|
14073
14073-1169
DUCT,AIR FILTER
Duct,air filter; |
14073-1169 |
— | ||
|
49006
|
49006
49006-1065
BOOT
|
49006-1065 |
— | ||
|
59006
|
59006
59006-1051
ARRESTER-FLAME
|
59006-1051 |
— | ||
|
92037
|
92037
92037-061 CLAMP-INLET PIPE |
92037-061 |
from US $8.09 |
||
|
92037A
|
92037A
92037-177
CLAMP,MUFFLER
Clamp,muffler; |
92037-177 |
— | ||
|
92093
|
92093
92093-1203
SEAL,AIR FILTER CASE
Seal,air filter case; |
92093-1203 |
— | ||
