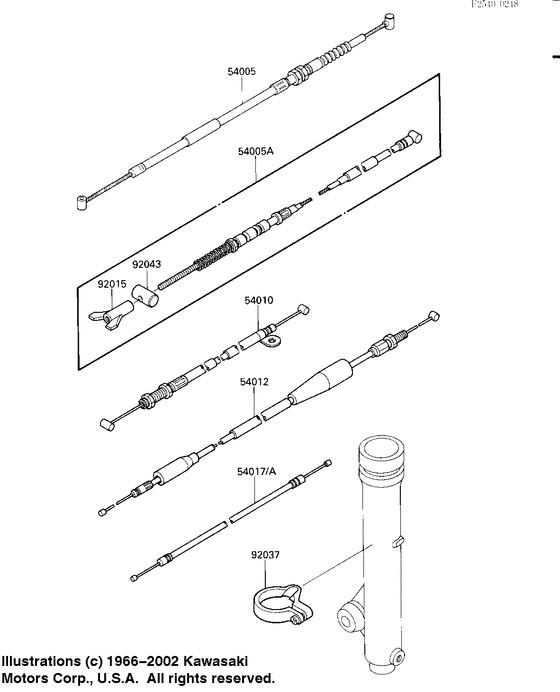

Cables Diagram Kawasaki KLT 185
- Model code
- KLT185-A1
- Year
- 1986
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54005
|
54005
54005-1107
CABLE-BRAKE,FR
Cable brake,fr; |
54005-1107 |
— | ||
|
54005A
|
54005A
54005-1119
CABLE-BRAKE
|
54005-1119 |
— | ||
|
54010
|
54010
54010-1055
CABLE,REVERSE
Cable,reverse; |
54010-1055 |
— | ||
|
54012
|
54012
54012-1266
CABLE-THROTTLE
|
54012-1266 |
— | ||
|
54017
|
54017
54017-1067
CABLE-STARTER
|
54017-1067 |
— | ||
|
92015
|
92015
92015-1497
NUT,WING,6MM
Nut,wing,6mm; |
92015-1497 |
— | ||
|
92037
|
92037
92037-1548
CLAMP,CABLE
Clamp,cable; |
92037-1548 |
— | ||
|
92043
|
92043
92043-1280
PIN,12X20
Pin,12x20; |
92043-1280 |
— |
