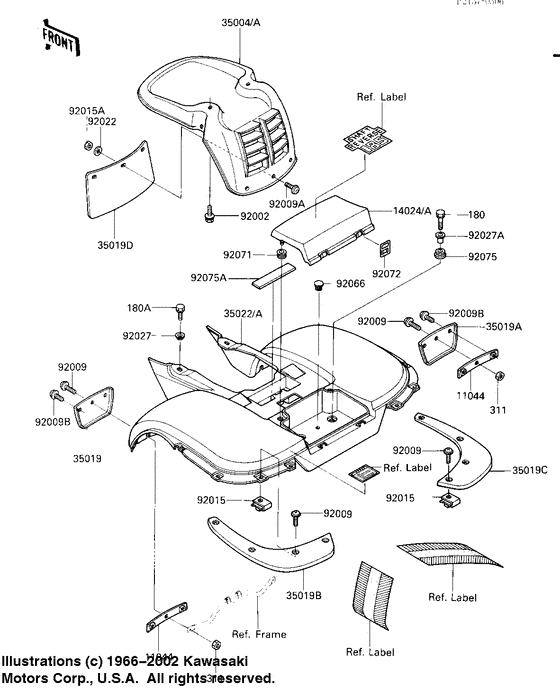

Fenders Diagram Kawasaki KLT 185
- Model code
- KLT185-A1
- Year
- 1986
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
180
|
180
180C0622
BOLT-UPSET-WS
|
180C0622 |
— | ||
|
180A
|
180A
180D0614
BOLT-UPSET-WS
|
180D0614 |
— | ||
| replacement | |||||
|
180A
|
180A
180AA0614 BOLT-UPSET-WS |
180AA0614 |
from US $1.09 |
||
|
311
|
311
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
311
|
311
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
11044
|
11044
11044-1385
BRACKET,FLAP
Bracket,flap; |
11044-1385 |
— | ||
|
14024
|
14024
14024-1103-6D
COVER,REAR FENDER
Cover,rear fender; |
14024-1103-6D |
— | ||
|
14024A
|
14024A
14024-1103-6L
COVER,REAR FENDER RED
Cover,rear fender red; |
14024-1103-6L |
— | ||
|
35004
|
35004
35004-1160-6D
FENDER-FR,EBONY
Fender-fr,ebony; |
35004-1160-6D |
— | ||
|
35004A
|
35004A
35004-1160-6L
FENDER-FRONT,F.RED
Fender-front,f.red; |
35004-1160-6L |
— | ||
|
35019
|
35019
35019-1154
FLAP,FRONT,LH
Flap,front,lh; |
35019-1154 |
— | ||
|
35019A
|
35019A
35019-1155
FLAP,FRONT,RH
Flap,front,rh; |
35019-1155 |
— | ||
|
35019B
|
35019B
35019-1156
FLAP,REAR,LH
Flap,rear,lh; |
35019-1156 |
— | ||
|
35019C
|
35019C
35019-1157
FLAP,REAR,RH
Flap,rear,rh; |
35019-1157 |
— | ||
|
35019D
|
35019D
35019-1212 FLAP,REAR FENDERFlap,rear fender; |
35019-1212 |
from US $21.84 |
||
|
35022
|
35022
35022-1215-6D
FENDER-COMP-REAR
|
35022-1215-6D |
— | ||
|
35022A
|
35022A
35022-1215-6L
FENDER-COMP-REAR RED
|
35022-1215-6L |
— | ||
|
92002
|
92002
92001-1944
BOLT,W/SP,6X18
Bolt,6x18; |
92001-1944 |
— | ||
| replacement | |||||
|
92002
|
92002
92001-1764
BOLT,W/SP,6X18
Bolt,6x18; |
92001-1764 |
— | ||
|
92009
|
92009
92009-1663
SCREW,6X18
|
92009-1663 |
— | ||
| replacement | |||||
|
92009
|
92009
92009-3805 SCREW,6X18 |
92009-3805 |
from US $2.69 |
||
|
92009A
|
92009A
92009-1287
Screw,6x14
Screw,6x14; |
92009-1287 |
— | ||
| replacement | |||||
|
92009A
|
92009A
92172-0401 SCREW,6X14Screw,6x14; |
92172-0401 |
from US $1.11 |
||
|
92009B
|
92009B
92009-1288
SCREW
Screw,6x14; |
92009-1288 |
— | ||
| replacements | |||||
|
92009B
|
92009B
92009-1662 SCREWScrew,6x14; |
92009-1662 |
from US $2.53 |
||
|
92009B
|
92009B
92172-0004 SCREW,6X14Screw,6x14; |
92172-0004 |
from US $1.27 |
||
|
92015
|
92015
92015-1248 NUTNut,casette deck; |
92015-1248 |
from US $6.06 |
||
|
92015A
|
92015A
92015-1410 NUT,6MMNut,6mm; |
92015-1410 |
from US $2.33 |
||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
92027
|
92027
92027-122 COLLAR |
92027-122 |
from US $5.07 |
||
|
92027A
|
92027A
92027-1767 COLLAR |
92027-1767 |
from US $3.33 |
||
|
92066
|
92066
92074-038 RUBBER PLUGRubber plug; |
92074-038 |
from US $3.89 |
||
|
92071
|
92071
92071-056 GROMMET |
92071-056 |
from US $3.17 |
||
|
92072
|
92072
92072-1182 BAND |
92072-1182 |
US $5.90 |
||
|
92075
|
92075
92075-112 DAMPER RUBBERDamper rubber; |
92075-112 |
from US $2.85 |
||
|
92075A
|
92075A
92075-1799
DAMPER,TOOL
Damper,tool; |
92075-1799 |
— | ||
