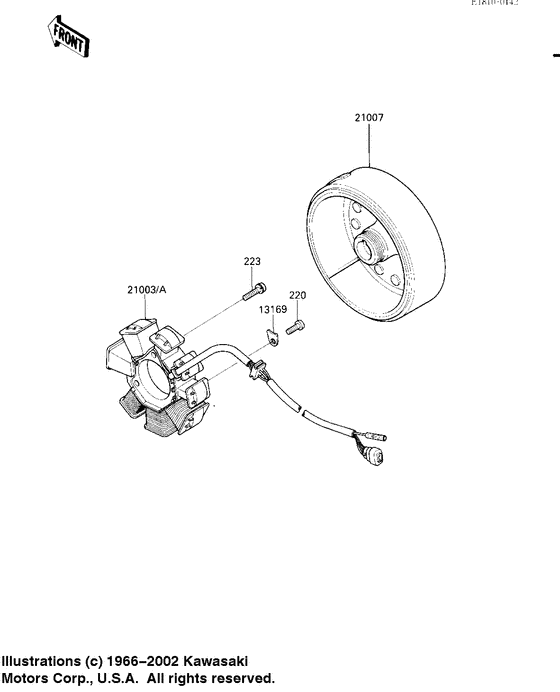

Generator Diagram Kawasaki KLT 185
- Model code
- KLT185-A1
- Year
- 1986
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0612 Screw-pan head,6x12Screw pan head 6x12; |
220B0612 |
US $1.11 |
||
| replacements | |||||
|
220
|
220
220AA0612 SCREW-PAN-CROSS,6X12Screw pan head 6x12; |
220AA0612 |
from US $0.91 |
||
|
220
|
220
214B0612
Screw-pan+-
Screw pan head 6x12; |
214B0612 |
— | ||
|
223
|
223
223B0530 SCREW-PAN-WS-CROS |
223B0530 |
from US $1.43 |
||
| replacement | |||||
|
223
|
223
223AA0530 SCREW-PAN-WS-CROS |
223AA0530 |
from US $1.24 |
||
|
13169
|
13169
13169-1788 PLATE,HARNESSPlate,harness; |
13169-1788 |
from US $3.43 |
||
|
21003
|
21003
21003-1136 STATOR |
21003-1136 |
US $579.44 |
||
|
21007
|
21007
21007-1138
ROTOR
|
21007-1138 |
— | ||
