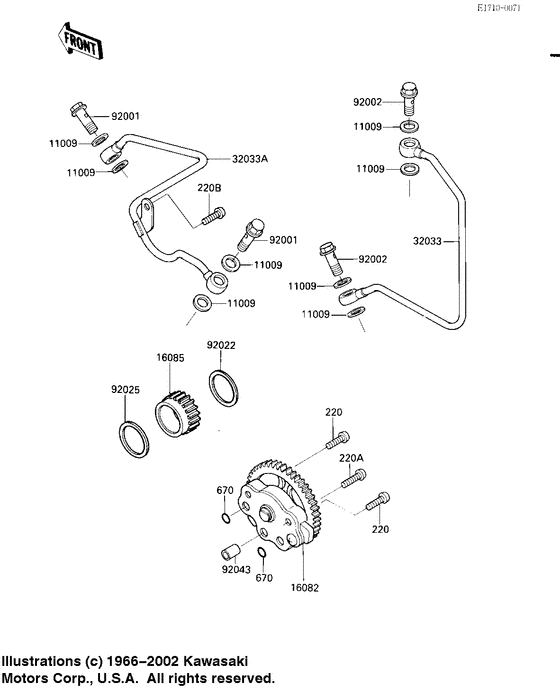

Oil pump Diagram Kawasaki KLT 185
- Model code
- KLT185-A1
- Year
- 1986
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0620 SCREW PAN HEAD 6X20Screw pan head 6x20; |
220B0620 |
US $1.27 |
||
| replacement | |||||
|
220
|
220
220AA0620 SCREW-PAN HEAD,6X20Screw pan head 6x20; |
220AA0620 |
from US $0.95 |
||
|
220A
|
220A
220B0630
SCREW-PAN HEAD,6X30
Screw pan head 6x30; |
220B0630 |
— | ||
| replacement | |||||
|
220A
|
220A
220AA0630 SCREW-PAN HEAD,6X30Screw pan head 6x30; |
220AA0630 |
from US $1.25 |
||
|
220B
|
220B
220X0612
SCREW-PAN-CROS
|
220X0612 |
— | ||
| replacement | |||||
|
220B
|
220B
220AD0612 SCREW-PAN-CROS |
220AD0612 |
from US $0.95 |
||
|
670
|
670
670B1510 ORING 10MM"o"ring 10mm; |
670B1510 |
from US $2.53 |
||
|
11009
|
11009
11009-1344 GASKET,OIL PIPE,8.2X1Gasket,oil pipe,8.2x1; |
11009-1344 |
from US $3.33 |
||
|
16082
|
16082
16082-1055 PUMP-ASSY-OIL |
16082-1055 |
US $141.08 |
||
|
16085
|
16085
16085-1133 GEAR,OIL PUMP,22TGear,oil pump,22t; |
16085-1133 |
US $32.20 |
||
|
32033
|
32033
32033-1221 PIPE,OILPipe,oil; |
32033-1221 |
US $52.33 |
||
|
32033A
|
32033A
32033-1222 PIPE-OILPipe-oil; |
32033-1222 |
US $38.70 |
||
|
92001
|
92001
92002-1871 BOLT,BANJO,8X20Bolt,banjo,8x22; |
92002-1871 |
US $4.64 |
||
| replacement | |||||
|
92001
|
92001
92150-1556 BOLT,BANJO,8X20Bolt,banjo,8x22; |
92150-1556 |
from US $5.23 |
||
|
92002
|
92002
92150-1557 BOLT,BANJO,8X20Bolt,banjo,8x20; |
92150-1557 |
from US $6.06 |
||
|
92022
|
92022
92022-1767 WASHER |
92022-1767 |
US $2.32 |
||
|
92025
|
92025
92025-1129 SHIM,25.3X36X0.9Shim,25.3x36x0.9; |
92025-1129 |
US $9.98 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14Pin,dowel,6.2x8x14; |
92043-1263 |
from US $0.75 |
||
