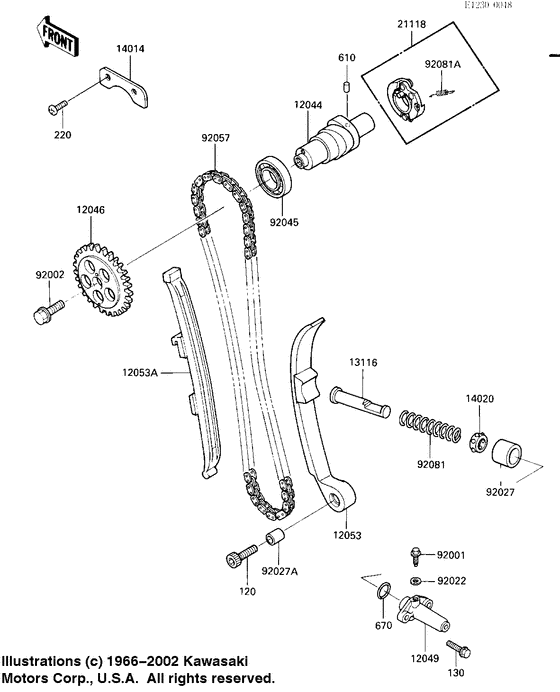

Camshaft/chain/tensioner Diagram Kawasaki KLT 185
- Model code
- KLT185-A2
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0622
BOLT-SOCKET,6X22
Bolt,socket,6x22; |
120P0622 |
— | ||
| replacement | |||||
|
120
|
120
120CA0622 BOLT-SOCKET,6X22Bolt,socket,6x22; |
120CA0622 |
from US $0.90 |
||
|
130
|
130
130G0625
BOLT-FLANGED,6X25
Bolt,flanged,6x25; |
130G0625 |
— | ||
| replacement | |||||
|
130
|
130
130BA0625 BOLT-FLANGED,6X25Bolt,flanged,6x25; |
130BA0625 |
from US $0.79 |
||
|
220
|
220
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
220
|
220
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
610
|
610
610A0408 PIN DOWEL 4X8Pin dowel 4x8; |
610A0408 |
from US $1.07 |
||
|
670
|
670
670B2021 O-RING,21MM"0" ring,21mm; |
670B2021 |
from US $3.54 |
||
|
12044
|
12044
12044-1148 CAMSHAFT-VALVE |
12044-1148 |
US $181.76 |
||
|
12046
|
12046
12046-1059 SPROCKET,CAM CHAINSprocket,cam chain; |
12046-1059 |
from US $31.88 |
||
|
12049
|
12049
12049-1055 TENSIONER,CAM CHAINTensioner,cam chain; |
12049-1055 |
from US $31.82 |
||
|
12053
|
12053
12053-1120
GUIDE-CHAIN,RR
Guide-chain,rr; |
12053-1120 |
— | ||
|
12053A
|
12053A
12053-1121 GUIDE-CHAIN,FRGuide-chain,fr; |
12053-1121 |
US $66.76 |
||
|
13116
|
13116
13116-1019 ROD,PUSH,CAM CHAINRod,push,cam chain; |
13116-1019 |
from US $10.51 |
||
|
14014
|
14014
14014-1054 PLATE-POSITION |
14014-1054 |
from US $3.43 |
||
|
14020
|
14020
14020-1054 RETAINER,TENSIONERRetainer,tensioner; |
14020-1054 |
from US $15.36 |
||
|
21118
|
21118
21118-1059 DECOMPRESSOR |
21118-1059 |
US $125.96 |
||
|
92001
|
92001
92001-1155 BOLT,TENSIONER ADJUSTBelt,tensioner adjust; |
92001-1155 |
from US $3.48 |
||
|
92002
|
92002
92001-1859 BOLT,10X23Bolt,10x23; |
92001-1859 |
from US $6.34 |
||
|
92022
|
92022
92022-077 WASHER,6.1X12X1Washer oil pump banjo; |
92022-077 |
from US $2.53 |
||
|
92027
|
92027
92027-1273 COLLAR,TENSIONERCollar,tensioner; |
92027-1273 |
from US $18.86 |
||
|
92027A
|
92027A
92027-1721 COLLAR,6X8X10Collar,6x8x10; |
92027-1721 |
US $2.66 |
||
| replacement | |||||
|
92027A
|
92027A
92143-1253 COLLAR,6X8X10.2Collar,6x8x10; |
92143-1253 |
from US $3.27 |
||
|
92045
|
92045
92045-1056 BEARING-BALL |
92045-1056 |
from US $24.82 |
||
|
92057
|
92057
92057-1165
CHAIN,CAM,79RH2010,10
Chain,cam,79rh2010,10; |
92057-1165 |
— | ||
|
92081
|
92081
92081-1105 SPRING,TENSIONERSpring,tensioner; |
92081-1105 |
from US $3.02 |
||
|
92081A
|
92081A
92081-1674 SPRING,DECOMPRESSORSpring,decompressor; |
92081-1674 |
from US $3.57 |
||
