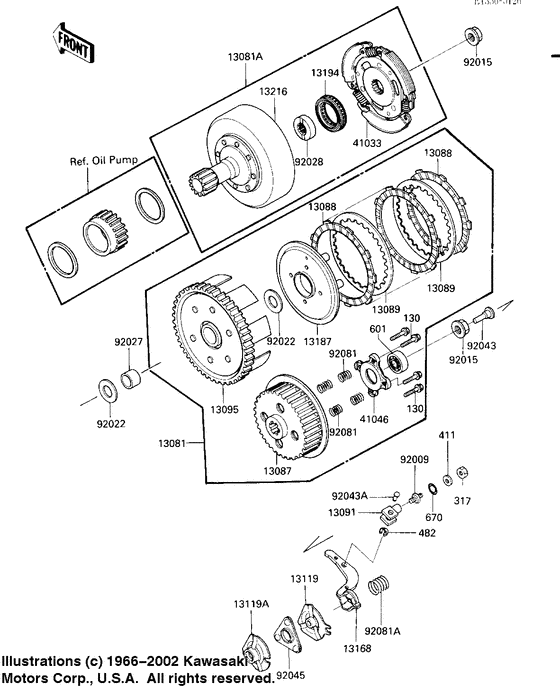

Clutch Diagram Kawasaki KLT 185
- Model code
- KLT185-A2
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130P0620 BOLT-FLANGED,6X20Bolt-flanged,6x20; |
130P0620 |
from US $1.19 |
||
| replacement | |||||
|
130
|
130
130CA0620 BOLT-FLANGED,6X20Bolt-flanged,6x20; |
130CA0620 |
from US $1.11 |
||
|
317
|
317
317B0800 NUT-HEX-SMALLNut,8m/m; |
317B0800 |
from US $0.94 |
||
| replacement | |||||
|
317
|
317
317AA0800 NUT-HEX-SMALLNut,8m/m; |
317AA0800 |
from US $0.94 |
||
|
411
|
411
411B0800
WASHER PLAIN 8MM
Washer plain 8mm; |
411B0800 |
— | ||
| replacement | |||||
|
411
|
411
411AA0800 WASHER-PLAINWasher plain 8mm; |
411AA0800 |
from US $0.72 |
||
|
482
|
482
482J6000 CIRCLIP-TYPE-E,6MMCirclip 6mm; |
482J6000 |
from US $1.05 |
||
|
601
|
601
601B6201 BEARING-BALL,#6201C3Bearing ball #6201; |
601B6201 |
from US $9.82 |
||
|
670
|
670
670B1508 O RING,8MM"o" ring,8mm; |
670B1508 |
from US $1.63 |
||
|
13081
|
13081
13081-1205
CLUTCH-ASSY
|
13081-1205 |
— | ||
|
13081A
|
13081A
13081-1209 CLUTCH ASSYClutch-assy,fr,engine; |
13081-1209 |
US $469.49 |
||
| replacement | |||||
|
13081A
|
13081A
13081-1470 CLUTCH ASSYClutch-assy,fr,engine; |
13081-1470 |
US $469.49 |
||
|
13087
|
13087
13087-1054 Hub-clutch |
13087-1054 |
US $74.43 |
||
|
13088
|
13088
13088-1016 PLATE-FRICTION |
13088-1016 |
from US $14.26 |
||
|
13089
|
13089
13089-1012 PLATE-CLUTCH |
13089-1012 |
from US $9.03 |
||
|
13091
|
13091
13091-1341 HOLDER,CLUTCH RELEASEHolder,clutch release; |
13091-1341 |
from US $30.33 |
||
|
13095
|
13095
13095-1134 HOUSING-COMP-CLUTCH |
13095-1134 |
US $350.33 |
||
|
13119
|
13119
13119-1060 CAM-RELEASE |
13119-1060 |
US $34.04 |
||
| replacement | |||||
|
13119
|
13119
13119-1074 CAM-RELEASE |
13119-1074 |
from US $34.04 |
||
|
13119A
|
13119A
13119-1054 CAM-RELEASE |
13119-1054 |
US $31.61 |
||
|
13168
|
13168
13168-1223 LEVER,CLUTCH RELEASELever,clutch release; |
13168-1223 |
US $29.20 |
||
|
13187
|
13187
13187-1051 PLATE-CLUTCH OPERATINPlate-clutch operatin; |
13187-1051 |
US $32.02 |
||
|
13194
|
13194
13194-1055 CLUTCH-ONEWAY |
13194-1055 |
from US $80.71 |
||
|
13216
|
13216
13216-1055 GEAR-COMP,CLUTCHGear-comp,clutch; |
13216-1055 |
US $212.45 |
||
|
41033
|
41033
41033-1567 HUB-ASSY CLUTCHHub-assy,clutch; |
41033-1567 |
US $276.97 |
||
| replacement | |||||
|
41033
|
41033
41036-1073 HUB-ASSY CLUTCHHub-assy,clutch; |
41036-1073 |
US $276.97 |
||
|
41046
|
41046
41046-1055 HOUSING-BEARING |
41046-1055 |
US $38.02 |
||
|
92009
|
92009
92009-1303 SCREW,CLUTCH RELEASEScrew,clutch release; |
92009-1303 |
from US $7.16 |
||
|
92015
|
92015
92015-1465 NUT |
92015-1465 |
from US $11.40 |
||
|
92022
|
92022
92022-168 WASHER-CLUTCH THRUSTWasher-clutch thrust; |
92022-168 |
from US $6.02 |
||
|
92027
|
92027
92027-1798 COLLAR,20X25X21Collar,20x25x21; |
92027-1798 |
from US $16.79 |
||
|
92028
|
92028
92028-1292 BUSHING,CLUTCHBushing,clutch; |
92028-1292 |
US $51.14 |
||
|
92043
|
92043
92043-1229
PIN,CLUTCH
Pin,clutch; |
92043-1229 |
— | ||
|
92043A
|
92043A
92043-1230 PIN,CLUTCH RELEASEPin,clutch release; |
92043-1230 |
from US $7.16 |
||
|
92045
|
92045
14020-1093 RETAINER,CLUTCH RELEARetainer,clutch relea; |
14020-1093 |
from US $13.38 |
||
|
92081
|
92081
92081-1680 SPRING,CLUTCHSpring,clutch; |
92081-1680 |
US $6.55 |
||
|
92081A
|
92081A
92081-1681 SPRING,SHOCKABSORBER,Spring,shockabsorber,; |
92081-1681 |
from US $4.05 |
||
