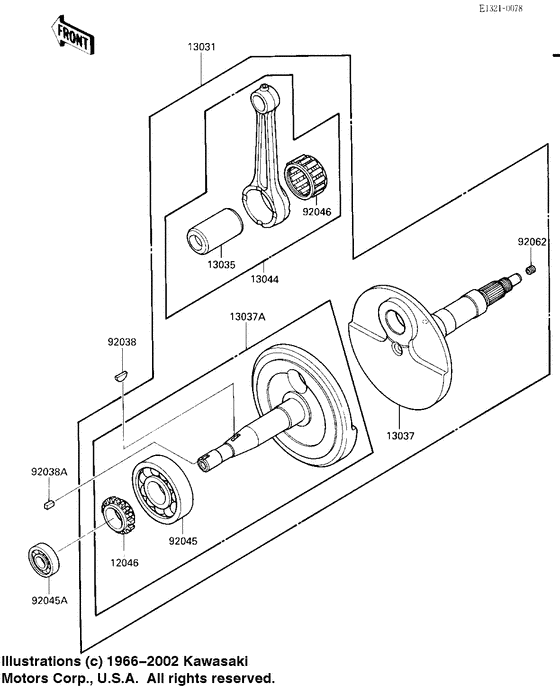

Crankshaft Diagram Kawasaki KLT 185
- Model code
- KLT185-A2
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12046
|
12046
12046-1058 SPROCKET,CAM CHAIN,19Sprocket,cam chain,19; |
12046-1058 |
US $35.93 |
||
| replacement | |||||
|
12046
|
12046
12046-1152 SPROCKET,CAM CHAIN,19Sprocket,cam chain,19; |
12046-1152 |
from US $32.82 |
||
|
13031
|
13031
13031-1216 Crankshaft-comp |
13031-1216 |
US $455.40 |
||
|
13035
|
13035
13035-1063 PIN-CRANK |
13035-1063 |
from US $43.08 |
||
|
13037
|
13037
13037-1259 CRANKSHAFT,RHCrankshaft,rh; |
13037-1259 |
US $295.83 |
||
|
13037A
|
13037A
13037-5044 CRANKSHAFT,LHCrankshaft,lh; |
13037-5044 |
US $316.04 |
||
|
13044
|
13044
13044-5054 SET-CONNECTING ROD |
13044-5054 |
US $213.07 |
||
|
92038
|
92038
92038-001 WOODRUFF KEYWoodruff key; |
92038-001 |
from US $3.73 |
||
|
92038A
|
92038A
92038-1051 KEY,SUNKKey,sunk; |
92038-1051 |
from US $7.29 |
||
|
92045
|
92045
92045-1120 BEARING-BALL,6305JR2CBearing-ball,6305jr2c; |
92045-1120 |
from US $23.34 |
||
|
92045A
|
92045A
92045-1131 BEARING-BALL,#6903C3Bearing-ball,#6903c3; |
92045-1131 |
from US $17.27 |
||
|
92046
|
92046
92046-1126 BEARING-NEEDLE |
92046-1126 |
from US $29.39 |
||
|
92062
|
92062
92062-1053 NOZZLE |
92062-1053 |
from US $3.73 |
||
