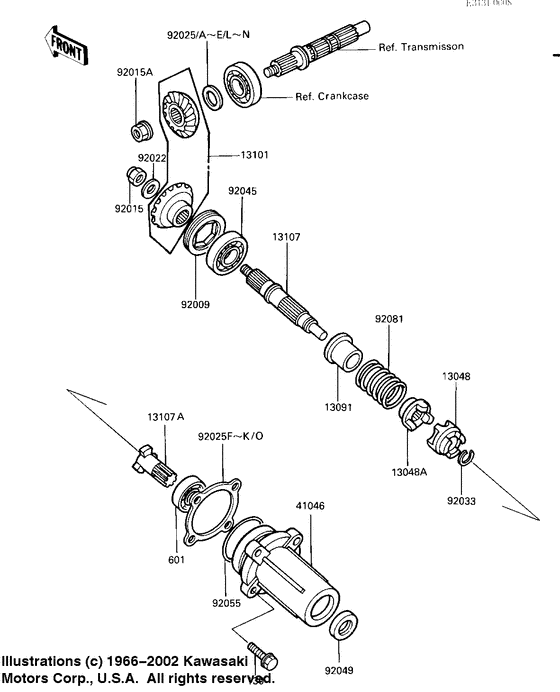

Front bevel gears Diagram Kawasaki KLT 185
- Model code
- KLT185-A2
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130P0830 BOLT-FLANGEDBolt-flanged,8x30; |
130P0830 |
from US $1.74 |
||
| replacement | |||||
|
130
|
130
130CA0830 BOLT-FLANGEDBolt-flanged,8x30; |
130CA0830 |
from US $1.27 |
||
|
601
|
601
601B6004 BEARING BALL #6004Bearing ball #6004; |
601B6004 |
from US $8.93 |
||
|
13048
|
13048
13048-1053 CAM-DAMPER |
13048-1053 |
US $44.32 |
||
|
13048A
|
13048A
13048-1054 CAM-DAMPER |
13048-1054 |
US $44.32 |
||
|
13091
|
13091
13091-1278 HOLDER |
13091-1278 |
US $12.47 |
||
|
13101
|
13101
13101-5047 GEAR-ASSY,FRONT BEVELGear-assy,front bevel; |
13101-5047 |
US $418.70 |
||
|
13107
|
13107
13107-1109 SHAFT,BEVEL GEAR,FRShaft,bevel gear,fr; |
13107-1109 |
US $132.59 |
||
|
13107A
|
13107A
13107-1110 SHAFT,BEVEL GEAR,RRShaft,bevel gear,rr; |
13107-1110 |
US $87.57 |
||
|
41046
|
41046
41046-1051 HOUSING-BEARING |
41046-1051 |
US $121.10 |
||
|
92009
|
92009
92009-1290 SCREW |
92009-1290 |
from US $15.09 |
||
|
92015
|
92015
92015-1182 NUT,12MMNut,12mm; |
92015-1182 |
from US $4.44 |
||
|
92015A
|
92015A
92015-1341 NUT,FLANGED,14MMNut,flanged,14mm; |
92015-1341 |
from US $12.12 |
||
|
92022
|
92022
92022-1611 WASHER |
92022-1611 |
US $3.60 |
||
|
92025
|
92025
92025-1533 SHIM,20.3X28X1.3Shim,20.3x28x1.3; |
92025-1533 |
from US $3.73 |
||
|
92025A
|
92025A
92025-1534 SHIM,20.3X28X0.7Shim,20.3x28x0.7; |
92025-1534 |
from US $2.95 |
||
|
92025B
|
92025B
92025-1535 SHIM,20.3X28X0.8Shim,20.3x28x0.8; |
92025-1535 |
US $5.17 |
||
| replacement | |||||
|
92025B
|
92025B
92180-0288 SHIM,20.3X28X0.8Shim,20.3x28x0.8; |
92180-0288 |
from US $2.95 |
||
|
92025C
|
92025C
92025-1536 SHIM,20.3X28X0.9Shim,20.3x28x0.9; |
92025-1536 |
US $7.69 |
||
| replacement | |||||
|
92025C
|
92025C
92180-0289 SHIM,20.3X28X0.9Shim,20.3x28x0.9; |
92180-0289 |
from US $4.67 |
||
|
92025D
|
92025D
92025-1537 SHIM,20.3X28X1.0Shim,20.3x28x1.0; |
92025-1537 |
US $5.17 |
||
| replacement | |||||
|
92025D
|
92025D
92180-0290 SHIM,20.3X28X1.0Shim,20.3x28x1.0; |
92180-0290 |
from US $2.95 |
||
|
92025E
|
92025E
92025-1538 SHIM,20.3X28X1.2Shim,20.3x28x1.2; |
92025-1538 |
US $3.98 |
||
| replacement | |||||
|
92025E
|
92025E
92180-0291 SHIM,20.3X28X1.2Shim,20.3x28x1.2; |
92180-0291 |
from US $2.95 |
||
|
92025F
|
92025F
92025-1539 SHIM,T=0.1Shim,t=0.1; |
92025-1539 |
US $4.25 |
||
|
92025G
|
92025G
92025-1540 SHIM,T=0.7Shim,t=0.7; |
92025-1540 |
US $6.30 |
||
|
92025H
|
92025H
92025-1541 SHIM,T=0.8Shim,t=0.8; |
92025-1541 |
US $6.30 |
||
|
92025I
|
92025I
92025-1542 SHIM,T=0.9Shim,t=0.9; |
92025-1542 |
US $6.30 |
||
|
92025J
|
92025J
92025-1543 SHIM,T=1.0Shim,t=1.0; |
92025-1543 |
US $6.48 |
||
|
92025K
|
92025K
92025-1544 SHIM,T=1.2Shim,t=1.2; |
92025-1544 |
US $6.30 |
||
|
92025L
|
92025L
92025-1573 SHIM,20.3X28X0.15Shim,20.3x28x0.15; |
92025-1573 |
from US $3.33 |
||
|
92025M
|
92025M
92025-1574 SHIM,20.3X28X0.20Shim,20.3x28x0.20; |
92025-1574 |
from US $3.33 |
||
|
92025N
|
92025N
92025-1575 SHIM,20.3X28X1.1Shim,20.3x28x1.1; |
92025-1575 |
from US $2.95 |
||
|
92025O
|
92025O
92025-1576 SHIM,T=0.15Shim,t=0.15; |
92025-1576 |
US $6.30 |
||
|
92033
|
92033
92033-1060 RING,SNAPRing,snap; |
92033-1060 |
from US $2.69 |
||
|
92045
|
92045
92045-1142 BEARING-BALL,TMB304CCBearing-ball,tmb304cc; |
92045-1142 |
from US $32.04 |
||
|
92049
|
92049
92049-1169 SEAL-OIL |
92049-1169 |
US $6.82 |
||
|
92055
|
92055
92055-1038 0 RING,I.D=57.6MM"0" ring,i.d=57.6mm; |
92055-1038 |
from US $4.44 |
||
|
92081
|
92081
92081-1647 SPRING |
92081-1647 |
US $11 |
||
