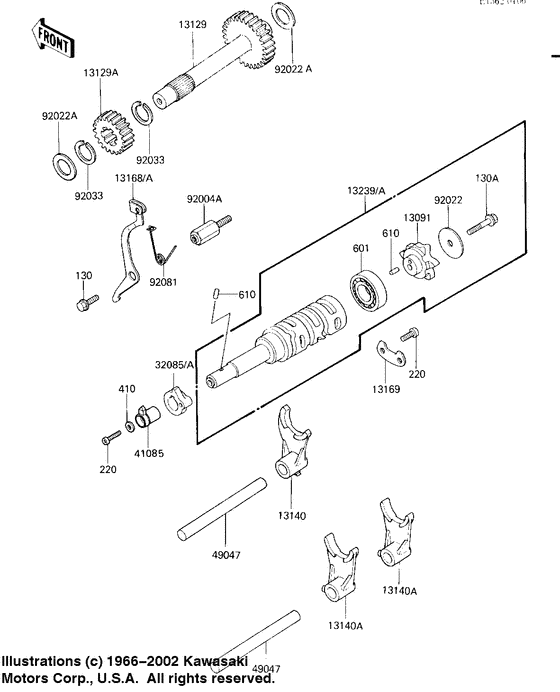

Gear change drum & forks Diagram Kawasaki KLT 185
- Model code
- KLT185-A2
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0612
BOLT-FLANGED,6X12
Bolt,flanged,6x12; |
130G0612 |
— | ||
| replacement | |||||
|
130
|
130
130BA0612 BOLT-FLANGED,6X12Bolt,flanged,6x12; |
130BA0612 |
from US $0.79 |
||
|
130A
|
130A
130H0635
BOLT,FLANGED,6X35
Bolt,flanged,6x35; |
130H0635 |
— | ||
| replacement | |||||
|
130A
|
130A
130BA0635 BOLT,FLANGED,6X35Bolt,flanged,6x35; |
130BA0635 |
from US $1.11 |
||
|
220
|
220
220B0525
SCREW-PAN-CROS,5X25
Screw-pan-cros,5x25; |
220B0525 |
— | ||
| replacement | |||||
|
220
|
220
220AA0525 SCREW-PAN-CROS,5X25Screw-pan-cros,5x25; |
220AA0525 |
from US $1.25 |
||
|
220A
|
220A
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
220A
|
220A
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
410
|
410
410B0500
W-PLAIN-S
Washer plain 5mm; |
410B0500 |
— | ||
| replacement | |||||
|
410
|
410
410AA0500 W-PLAIN-SWasher plain 5mm; |
410AA0500 |
from US $0.78 |
||
|
601
|
601
601B6004 BEARING BALL #6004Bearing ball #6004; |
601B6004 |
from US $8.93 |
||
|
610
|
610
610A0406 PIN-DOWEL,4X6Pin-dowel,4x6; |
610A0406 |
from US $0.79 |
||
|
13091
|
13091
13091-1434 HOLDER |
13091-1434 |
US $39.22 |
||
|
13129
|
13129
13129-1549 GEAR,REVERSEGear,reverse; |
13129-1549 |
US $137.74 |
||
|
13129A
|
13129A
13129-1550 GEAR,REVERSE,21TGear,reverse,21t; |
13129-1550 |
US $38.81 |
||
|
13140
|
13140
13140-1106 FORK-SHIFT |
13140-1106 |
US $86.47 |
||
|
13140A
|
13140A
13140-1137 FORK-SHIFT |
13140-1137 |
US $72.36 |
||
|
13168A
|
13168A
13168-1320 LEVER,REVERSELever,reverse; |
13168-1320 |
US $9.83 |
||
|
13169
|
13169
13169-1749 PLATE |
13169-1749 |
US $2.32 |
||
|
13239A
|
13239A
13239-1140 DRUM-ASSY-CHANGE |
13239-1140 |
US $111.40 |
||
|
32085A
|
32085A
32085-1232 STOPPER |
32085-1232 |
US $16.92 |
||
|
41085
|
41085
41085-1055 INDICATOR,CHAGE DRUMIndicator,chage drum; |
41085-1055 |
US $4.16 |
||
|
49047
|
49047
49047-1073 ROD-SHIFT |
49047-1073 |
from US $15.71 |
||
|
92004
|
92004
92004-1138 STUD |
92004-1138 |
US $11.83 |
||
|
92022
|
92022
92022-1500 WASHER,6.2X38X1.2Washer,6.2x38x1.2; |
92022-1500 |
from US $6.54 |
||
|
92022A
|
92022A
92022-279 WASHER,THRUST,15MMWasher,thrust,15mm; |
92022-279 |
from US $6.38 |
||
|
92033
|
92033
92033-029 CIRCLIP,18MMCirclip,18mm; |
92033-029 |
from US $6.34 |
||
|
92081
|
92081
92081-1966 SPRING |
92081-1966 |
US $3.15 |
||
