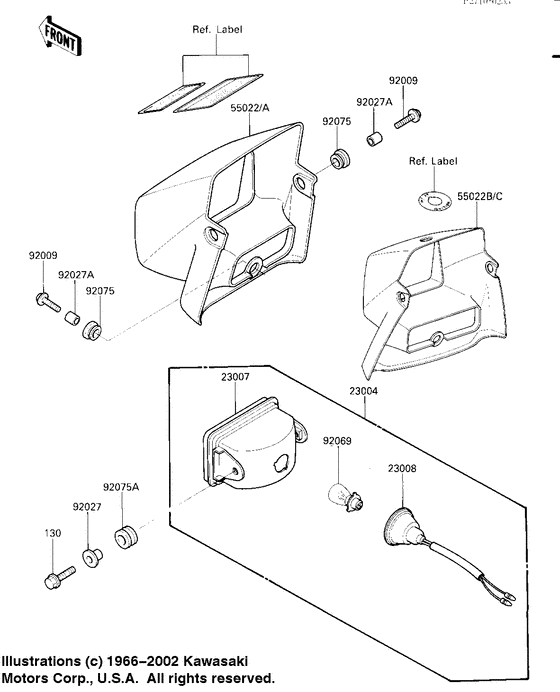

Headlight Diagram Kawasaki KLT 185
- Model code
- KLT185-A2
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0825
BOLT-FLANGED,8X25
Bolt,flanged,8x25; |
130B0825 |
— | ||
| replacement | |||||
|
130
|
130
130CA0825 BOLT-FLANGED,8X25Bolt,flanged,8x25; |
130CA0825 |
from US $0.94 |
||
|
23004
|
23004
23004-1191 LAMP-HEAD |
23004-1191 |
US $138.53 |
||
|
23007
|
23007
23007-1137
Lens-comp,head lamp
Lens-comp,head lamp; |
23007-1137 |
— | ||
|
23008
|
23008
23008-4004
SOCKET H.L.
Socket h.l.; |
23008-4004 |
— | ||
|
55022B
|
55022B
55022-1057-6D
COVER,HEAD LAMP,BLACK
Cover,head lamp,black; |
55022-1057-6D |
— | ||
|
55022C
|
55022C
55022-1057-6L COVER,HEAD LAMP F REDCover,head lamp f red; |
55022-1057-6L |
US $35.41 |
||
|
92009
|
92009
92009-1664 SCREW |
92009-1664 |
from US $3.17 |
||
|
92027
|
92027
92027-1134 COLLAR,FUEL TANK FITTCollar,fuel tank fitt; |
92027-1134 |
from US $8.15 |
||
|
92027A
|
92027A
92027-1210 COLLAR,6.8X10X11.5LCollar,6.8x10x11.5l; |
92027-1210 |
from US $6.81 |
||
|
92069
|
92069
92069-1061 BULB,12V 45/45WBulb,12v 45/45w; |
92069-1061 |
from US $8.55 |
||
|
92075
|
92075
92075-1057 DAMPER |
92075-1057 |
from US $3.33 |
||
|
92075A
|
92075A
92160-1007 DAMPER |
92160-1007 |
from US $4.09 |
||
