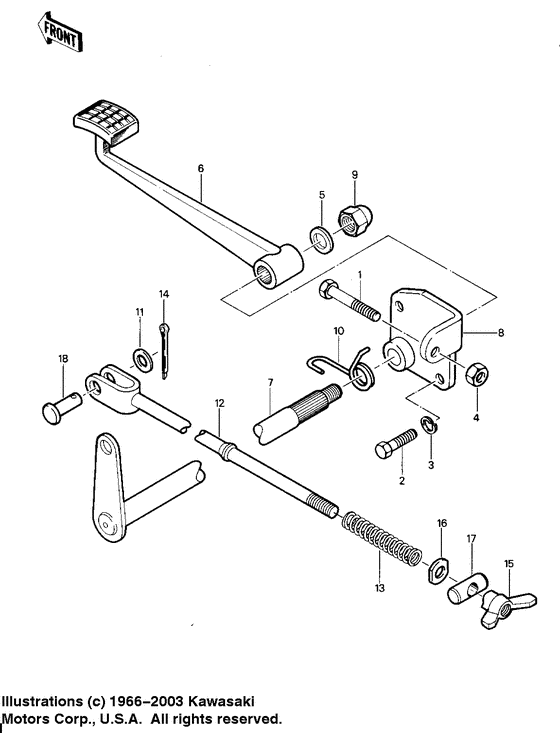

Brake pedal ('81-'82 klt200-a1/a2/a3) Diagram Kawasaki KLT 200
- Model code
- KLT200-A1
- Engine Capacity
- 200
- Year
- 1981
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
112G0625
BOLT-UPSET,6X25
|
112G0625 |
— | ||
| replacement | |||||
|
1
|
1
112BA0625 BOLT-UPSET,6X25 |
112BA0625 |
from US $1.07 |
||
|
2
|
2
112B0614
BOLT-UPSET
Bolt-upset 6x14; |
112B0614 |
— | ||
| replacements | |||||
|
2
|
2
112AA0614 BOLT-UPSETBolt-upset 6x14; |
112AA0614 |
from US $0.82 |
||
|
2
|
2
112BA0614 BOLT-UPSETBolt-upset 6x14; |
112BA0614 |
from US $1.43 |
||
|
3
|
3
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
3
|
3
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
4
|
4
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
4
|
4
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
5
|
5
411B1000 WASHER-PLAIN,10MMWasher plain 10mm; |
411B1000 |
from US $1.26 |
||
| replacement | |||||
|
5
|
5
411AA1000 WASHER-PLAIN,10MMWasher plain 10mm; |
411AA1000 |
from US $0.72 |
||
|
6
|
6
43001-4006 LEVER-BRAKE,RRLever-brake,rr; |
43001-4006 |
US $76.77 |
||
|
7
|
7
43004-4001
SHAFT-BRAKE
|
43004-4001 |
— | ||
|
8
|
8
43034-4001
HOLDER-BRAKE
|
43034-4001 |
— | ||
|
9
|
9
92020-003 NUT SHOCK ABSORBERNut shock absorber; |
92020-003 |
from US $3.80 |
||
|
10
|
10
92081-1337
SPRING,BRAKE PEDAL
Spring,brake pedal; |
92081-1337 |
— | ||
|
11
|
11
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
11
|
11
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
12
|
12
43011-4005
ROD-BRAKE
|
43011-4005 |
— | ||
|
13
|
13
43012001 SPRING,BRAKE RODSpring,brake rod; |
43012001 |
from US $3.33 |
||
|
14
|
14
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
14
|
14
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; |
550AA2015 |
from US $0.63 |
||
|
15
|
15
92015-4004 NUT,WING,6M/MNut,wing,6m/m; |
92015-4004 |
from US $4.28 |
||
|
16
|
16
92022-4003 WASHER, BRAKE RODWasher, brake rod; |
92022-4003 |
US $0.38 |
||
|
17
|
17
92043-065 PIN-BRAKE RODPin-brake rod; |
92043-065 |
from US $3.33 |
||
|
18
|
18
92043-064
PIN-BRAKE ROD FITTING
Pin-brake rod fitting; |
92043-064 |
— | ||
| replacement | |||||
|
18
|
18
92043-125 PINPin-brake rod fitting; |
92043-125 |
from US $3.96 |
||
