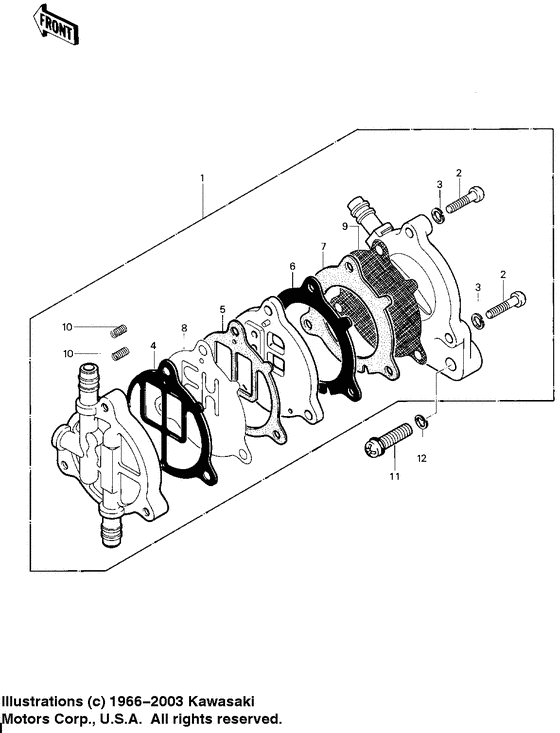

Fuel Pump Diagram Kawasaki KLT 200
- Model code
- KLT200-A1
- Engine Capacity
- 200
- Year
- 1981
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49040-1002
Pump-fuel
|
49040-1002 |
— | ||
|
2
|
2
220B0520
SCREW PAN HEAD 5X20
Screw pan head 5x20; |
220B0520 |
— | ||
| replacement | |||||
|
2
|
2
220AA0520 SCREW-PAN-CROSScrew pan head 5x20; |
220AA0520 |
from US $0.78 |
||
|
3
|
3
461F0500
WASHER-SPRING
Washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
3
|
3
461DA0500 WASHER-SPRINGWasher spring 5mm; |
461DA0500 |
from US $0.48 |
||
|
4
|
4
11009-1333 GASKET,CHECK VALVE,OUGasket,check valve; |
11009-1333 |
US $14.24 |
||
| replacement | |||||
|
4
|
4
11060-1367 GASKET,CHECK VALVE,OUGasket,check valve; |
11060-1367 |
US $14.24 |
||
|
5
|
5
11009-1334 GASKET,CHECK VALVEGasket,check valve; |
11009-1334 |
US $14.69 |
||
|
6
|
6
11009-1335 GASKET,FUEL PUMP,CNTGasket,fuel pump,cnt; |
11009-1335 |
US $19.19 |
||
| replacement | |||||
|
6
|
6
11060-1368 GASKET,FUEL PUMP,CNTGasket,fuel pump,cnt; |
11060-1368 |
US $19.19 |
||
|
7
|
7
11009-1336 GASKET,DIAPHRAGMGasket,diaphragm; |
11009-1336 |
US $12.01 |
||
|
8
|
8
16087-1002
VALVE-CHECK,FUEL PUMP
Valve-check,fuel pump; |
16087-1002 |
— | ||
|
9
|
9
43028-1036 DIAPHRAGM,FUEL PUMPDiaphragm,fuel pump; |
43028-1036 |
US $34.51 |
||
|
10
|
10
92081-1551
SPRING,FUEL PUMP
Spring,fuel pump; |
92081-1551 |
— | ||
|
11
|
11
220B0620 SCREW PAN HEAD 6X20Screw pan head 6x20; |
220B0620 |
US $1.27 |
||
| replacement | |||||
|
11
|
11
220AA0620 SCREW-PAN HEAD,6X20Screw pan head 6x20; |
220AA0620 |
from US $0.95 |
||
|
12
|
12
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
12
|
12
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
