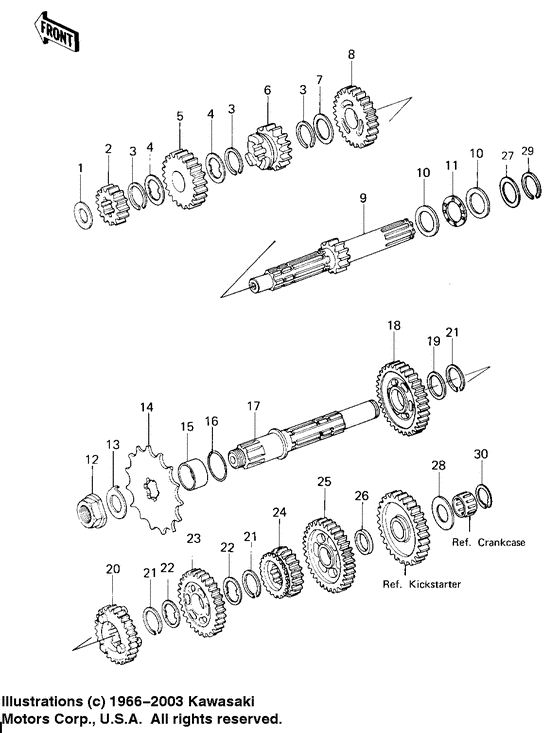

Transmission ('81-'82 klt200-a1/a2/a3) Diagram Kawasaki KLT 200
- Model code
- KLT200-A1
- Engine Capacity
- 200
- Year
- 1981
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
92022-279 WASHER,THRUST,15MMWasher,thrust,15mm; |
92022-279 |
from US $6.38 |
||
|
2
|
2
13129-1022 2ND GEAR,DRIVE SHAFT2nd gear,drive shaft; |
13129-1022 |
from US $56.40 |
||
|
3
|
3
92033-025 CIRCLIP,25MMCirclip,25mm; |
92033-025 |
from US $3.73 |
||
|
4
|
4
92024-039 WASHER-LOCKWasher-lock; |
92024-039 |
from US $3.48 |
||
|
5
|
5
13134-026 4TH GEAR,DRIVE SHAFT4th gear,drive shaft; |
13134-026 |
from US $53.65 |
||
|
6
|
6
13129-1284 GEAR,INPUT,3RD,20TGear,input,3rd,20t; -e/no. 052013, e/no. 052014- |
13129-1284 |
from US $115.86 |
||
|
7
|
7
92022-198 WASHER-PLAINWasher-plain; |
92022-198 |
from US $3.17 |
||
|
8
|
8
13136-057 TOP GEAR,DRIVE SHAFTTop gear,drive shaft; |
13136-057 |
US $52.09 |
||
|
9
|
9
13127-053 SHAFT,DRIVEShaft,drive; |
13127-053 |
US $154.35 |
||
|
10
|
10
92022-314 WASHER,PLAINWasher,plain; |
92022-314 |
from US $3.89 |
||
|
11
|
11
92046-052 BRG,NEEDLE,AXK1104Brg,needle,axk1104; |
92046-052 |
from US $13.59 |
||
|
12
|
12
92015-1013 NUT,LOCK,16M/MNut,lock,16m/m; |
92015-1013 |
from US $17.11 |
||
|
13
|
13
92022-1017
WASHER,LOCK
Washer,lock; |
92022-1017 |
— | ||
|
14
|
14
13144-1038 SPROCKET-OUTPUT,13TSprocket-output,13t; |
13144-1038 |
US $41.90 |
||
|
15
|
15
92027-287 COLLAR,ENGINE SPROCKTCollar,engine sprockt; |
92027-287 |
US $10.19 |
||
|
16
|
16
92055-022 0 RING"0" ring; |
92055-022 |
from US $3.48 |
||
|
17
|
17
13128-1007 SHAFT,OUTPUTShaft,output; |
13128-1007 |
from US $118.51 |
||
|
18
|
18
13131044 2ND GEAR,OUTPUT 26T2nd gear,output 26t; |
13131044 |
from US $90.81 |
||
|
19
|
19
92022-198 WASHER-PLAINWasher-plain; |
92022-198 |
from US $3.17 |
||
|
20
|
20
13129-1285 GEAR,OUTPUT 4TH,21TGear,output 4th,21t; -e/no. 052013, e/no. 052014- |
13129-1285 |
from US $93.50 |
||
|
21
|
21
92033-025 CIRCLIP,25MMCirclip,25mm; |
92033-025 |
from US $3.73 |
||
|
22
|
22
92024-039 WASHER-LOCKWasher-lock; |
92024-039 |
from US $3.48 |
||
|
23
|
23
13133044 3RD GEAR,OUTPUT SHAFT3rd gear,output shaft; |
13133044 |
from US $84.52 |
||
|
24
|
24
13137-037 TOP GEAR,OUTPUT SHAFTTop gear,output shaft; |
13137-037 |
US $62.71 |
||
|
25
|
25
13129058 LOW GEAR,OUTPUT SHAFTLow gear,output shaft; |
13129058 |
from US $93.50 |
||
|
26
|
26
92026-114 SPACER |
92026-114 |
US $3.98 |
||
|
27
|
27
92022-112 WASHER THRUSTWasher thrust; |
92022-112 |
from US $5.54 |
||
|
28
|
28
92022-270 WASHER,PLAINWasher,plain; |
92022-270 |
from US $6.65 |
||
|
29
|
29
92033-029 CIRCLIP,18MMCirclip,18mm; |
92033-029 |
from US $6.34 |
||
|
30
|
30
92033-032 CIRCLIP,16MMCirclip,16mm; |
92033-032 |
from US $3.01 |
