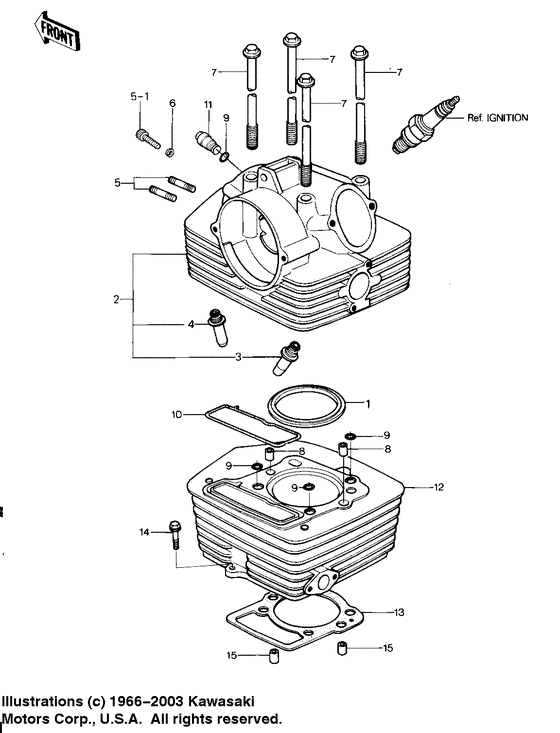

Cylinder head/cylinder Diagram Kawasaki KLT 200
- Model code
- KLT200-A2
- Engine Capacity
- 200
- Year
- 1981
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11004-1004
GASKET-HEAD,CYLINDER
Gasket,cylinder head; |
11004-1004 |
— | ||
| replacement | |||||
|
1
|
1
11004-1257 GASKET-HEAD,CYLINDERGasket,cylinder head; |
11004-1257 |
from US $31.10 |
||
|
2
|
2
11002-5023
CYLINDER HEAD
|
11002-5023 |
— | ||
|
3
|
3
12013-003
GUIDE,INLET VALVE
Guide,inlet valve; |
12013-003 |
— | ||
|
4
|
4
49002-1010
GUIDE,EXHAUST VALVE
Guide,exhaust valve; |
49002-1010 |
— | ||
|
6
|
6
410B0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; Use for 11002-5022/5023 |
410B0800 |
US $0.79 |
||
| replacement | |||||
|
6
|
6
410AA0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; Use for 11002-5022/5023 |
410AA0800 |
from US $0.63 |
||
|
7
|
7
92003-220 BOLT,8X233Bolt,8x233; |
92003-220 |
from US $9.17 |
||
|
8
|
8
92043-1037 PIN,DOWEL,10X8.2X14Pin,dowel,10x8.2x14; |
92043-1037 |
from US $0.97 |
||
|
9
|
9
92055-1149 RING-O,10MMRing-o,10mm; |
92055-1149 |
from US $3.80 |
||
|
10
|
10
92055-105
O-RING
|
92055-105 |
— | ||
|
11
|
11
92066-060
PLUG,TACHOMETER GEAR
Plug,tachometer gear; |
92066-060 |
— | ||
|
12
|
12
11006-1011
CYLINDER-ENGINE
|
11006-1011 |
— | ||
|
13
|
13
11009-043
GASKET,CYLINDER BASE
Gasket,cylinder base; |
11009-043 |
— | ||
| replacement | |||||
|
13
|
13
11060-1366 GASKET,CYLINDER BASEGasket,cylinder base; |
11060-1366 |
from US $7.93 |
||
|
14
|
14
92003-202 BOLT |
92003-202 |
from US $3.27 |
||
|
15
|
15
92043-1037 PIN,DOWEL,10X8.2X14Pin,dowel,10x8.2x14; |
92043-1037 |
from US $0.97 |
||
