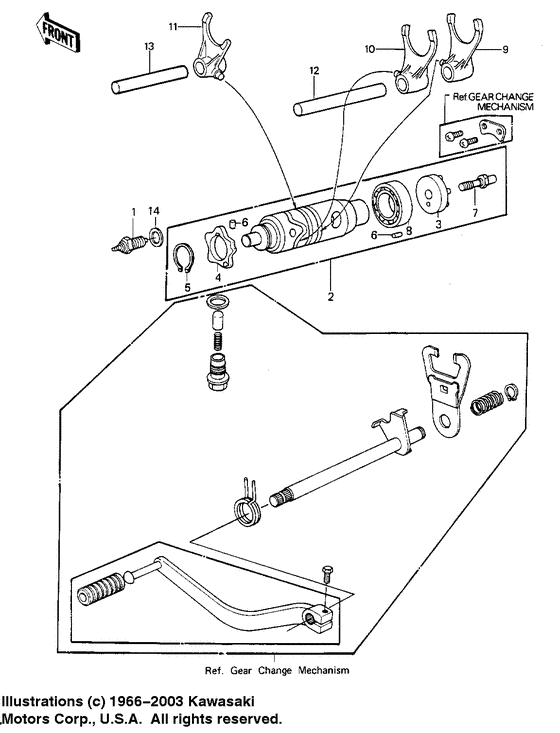

Gear change drum & forks ('81-'82 klt200-a1/a2/a3) Diagram Kawasaki KLT 200
- Model code
- KLT200-A2
- Engine Capacity
- 200
- Year
- 1981
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13151-1007 Switch-Comp,NeutralSwitch,neutral; |
13151-1007 |
US $9.29 |
||
| replacement | |||||
|
1
|
1
13151-1080 Switch-Comp,NeutralSwitch,neutral; |
13151-1080 |
from US $10.73 |
||
|
2
|
2
13239-1036 DRUM ASSY,GEAR SHIFTDrum assy,gear shift; |
13239-1036 |
US $240.44 |
||
|
3
|
3
13142-019 PLATE,GEAR CHANGEPlate,gear change; |
13142-019 |
US $17.84 |
||
|
4
|
4
13145-1002 DISK,SHIFT DRUMDisk,shift drum; |
13145-1002 |
US $21.46 |
||
|
5
|
5
480J2400 CIRCLIP 24MMCirclip 24mm; |
480J2400 |
from US $1.27 |
||
|
6
|
6
610A0406 PIN-DOWEL,4X6Pin-dowel,4x6; |
610A0406 |
from US $0.79 |
||
|
7
|
7
92001-166 BOLT |
92001-166 |
US $2.70 |
||
|
8
|
8
92045-036 BEARING,BALL,#6905Bearing,ball,#6905; |
92045-036 |
from US $21.38 |
||
|
9
|
9
13140-073 SHIFT FORK,LOWShift fork,low; |
13140-073 |
US $88.09 |
||
|
10
|
10
13140-074 SHIFT FORK,2ND&3RDShift fork,2nd&3rd; |
13140-074 |
US $76.66 |
||
|
11
|
11
13140-075 SHIFT FORK,4TH&TOPShift fork,4th⊤ |
13140-075 |
US $68.47 |
||
|
12
|
12
49047-1003 ROD,SHIFT,LONGRod,shift 93.7m/m; |
49047-1003 |
from US $16.16 |
||
| replacement | |||||
|
12
|
12
13209-016 ROD,SHIFT,LONGRod,shift 93.7m/m; |
13209-016 |
from US $14.46 |
||
|
13
|
13
49047-1002 ROD,SHIFT,SHORTRod,shift 71.7m/m; |
49047-1002 |
from US $25.88 |
||
| replacement | |||||
|
13
|
13
13209-017 ROD,SHIFT,SHORTRod,shift 71.7m/m; |
13209-017 |
from US $24.42 |
||
|
14
|
14
92065-058 GASKETGasket check valve; |
92065-058 |
from US $3.37 |
||
