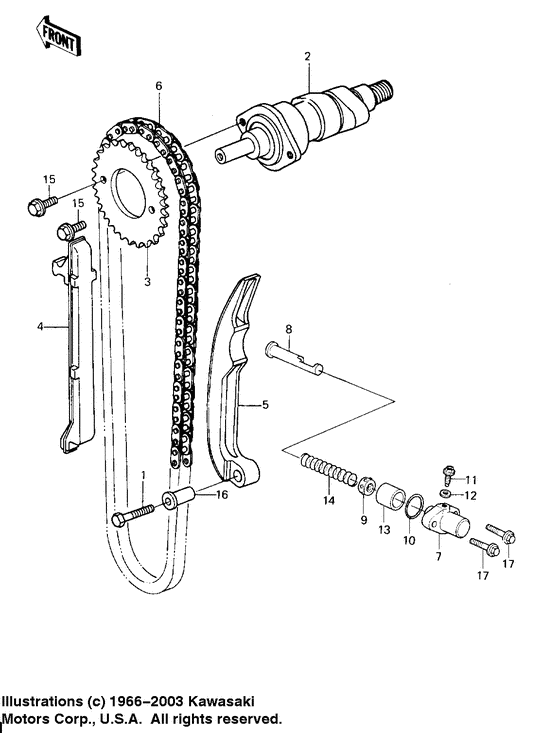

Camshaft/chain/tensioner ('81-'82 klt200-a1/a2/a3) Diagram Kawasaki KLT 200
- Model code
- KLT200-A3
- Engine Capacity
- 200
- Year
- 1982
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
112G0630
BOLT-UPSET
|
112G0630 |
— | ||
| replacement | |||||
|
1
|
1
112BA0630 BOLT-UPSET |
112BA0630 |
from US $0.86 |
||
|
2
|
2
12044-1040
SHAFT,CAM
Shaft,cam; |
12044-1040 |
— | ||
|
3
|
3
12046-1007
SPROCKET,CAM SHAFT
Sprocket,cam shaft; |
12046-1007 |
— | ||
|
4
|
4
12053-023 SLIPER,CAM CHAINSliper,cam chain; |
12053-023 |
from US $20.53 |
||
|
5
|
5
12053024 SLIPER,CAM CHAINSliper,cam chain; |
12053024 |
from US $36.72 |
||
|
6
|
6
21070013 CHAIN,CAMChain,cam; |
21070013 |
from US $107.15 |
||
|
7
|
7
12049-1008
TENSIONER,CAM CHAIN
Tensioner,cam chain; |
12049-1008 |
— | ||
|
8
|
8
13116-1019 ROD,PUSH,CAM CHAINRod,push,cam chain; |
13116-1019 |
from US $10.51 |
||
|
9
|
9
14020-1002 RETAINER |
14020-1002 |
US $15.21 |
||
|
10
|
10
670B2022 O RING,22MM"o" ring,22mm; |
670B2022 |
from US $2.85 |
||
|
11
|
11
92001-1155 BOLT,TENSIONER ADJUSTBelt,tensioner adjust; |
92001-1155 |
from US $3.48 |
||
|
12
|
12
92022-077 WASHER,6.1X12X1Washer oil pump banjo; |
92022-077 |
from US $2.53 |
||
|
13
|
13
92027-1273 COLLAR,TENSIONERCollar,tensioner; |
92027-1273 |
from US $18.86 |
||
|
14
|
14
92081-1105 SPRING,TENSIONERSpring,tensioner; |
92081-1105 |
from US $3.02 |
||
|
15
|
15
92003-208 BOLT,SPROCKET FITTINGBolt,sprocket fitting; |
92003-208 |
from US $2.69 |
||
|
16
|
16
92027-155 COLLAR |
92027-155 |
from US $4.32 |
||
|
17
|
17
92001-1352 BOLT,FLANGED,6X22Bolt,flanged,6x22; |
92001-1352 |
from US $2.69 |
||
