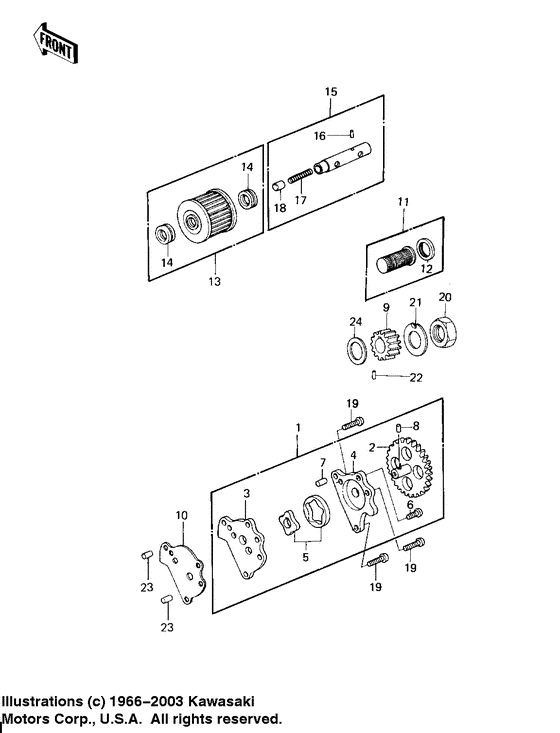

Oil pump/oil filter ('81-'82 klt200-a1/a2/a3) Diagram Kawasaki KLT 200
- Model code
- KLT200-A3
- Engine Capacity
- 200
- Year
- 1982
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16082-066 OIL PUMP ASSY-e/no. 046625, e/no. 046626 |
16082-066 |
US $267.95 |
||
|
2
|
2
16085-026 GEAR,OIL PUMPGear,oil pump; |
16085-026 |
US $25.76 |
||
|
3
|
3
16141-006
BODY,OIL PUMP
Body,oil pump; |
16141-006 |
— | ||
|
4
|
4
16142-006 COVER,OIL PUMPCover,oil pump; Use for 16082-066, use for 16082-1015 |
16142-006 |
US $20.90 |
||
|
5
|
5
16154-5001 ROTOR,OIL PUMPRotor,oil pump; Use for 16082-066, use for 16082-1015 |
16154-5001 |
US $21.58 |
||
|
6
|
6
220B0616
SCREW-PAN-CROS,6X16
Screw pan head 6x16; |
220B0616 |
— | ||
| replacement | |||||
|
6
|
6
220AA0616 SCREW-PAN-CROS,6X16Screw pan head 6x16; |
220AA0616 |
from US $0.95 |
||
|
7
|
7
551A0608 PIN,DOWEL,6X8Pin,dowel,6x8; |
551A0608 |
from US $2.38 |
||
|
8
|
8
92042-041 PIN,DOWELPin,dowel; |
92042-041 |
from US $3.96 |
||
|
9
|
9
16084-018 GEAR,OIL PUMPGear,oil pump; |
16084-018 |
US $11.14 |
||
|
10
|
10
11060-1115 GASKET,OIL PUMPGasket,oil pump; |
11060-1115 |
from US $3.27 |
||
|
11
|
11
16097-1001 STRAINER ASSY,OILStrainer assy,oil; |
16097-1001 |
from US $10.45 |
||
|
12
|
12
92071-100 GROMMET,OIL STRAINERGrommet,oil strainer; |
92071-100 |
from US $4.09 |
||
|
13
|
13
16099-004 FILTER,OILFilter,oil; |
16099-004 |
from US $9.64 |
||
|
14
|
14
92071-101 GROMMET,OIL FILTERGrommet,oil filter; |
92071-101 |
from US $3.33 |
||
|
15
|
15
16156002 PISTON-ASSY,VALVEBolt assy,oil filter; |
16156002 |
US $23.49 |
||
|
16
|
16
92043-123 SPRING PINSpring pin; |
92043-123 |
from US $3.01 |
||
|
17
|
17
92081-043 SPRING,PISTONSpring,piston; |
92081-043 |
from US $3.33 |
||
|
18
|
18
92136002 PISTONPiston; |
92136002 |
from US $3.01 |
||
|
19
|
19
220B0625
SCREW-PAN-CROSS,6X25
Screw pan head 6x25; |
220B0625 |
— | ||
| replacement | |||||
|
19
|
19
220AA0625 SCREW-PAN-CROSS,6X25Screw pan head 6x25; |
220AA0625 |
from US $0.95 |
||
|
20
|
20
315B1600 NUT,16MMNut 16mm; |
315B1600 |
from US $1.74 |
||
| replacement | |||||
|
20
|
20
315AA1600 NUT,16MMNut 16mm; |
315AA1600 |
from US $1.27 |
||
|
21
|
21
420B1611 WASHER,LOCK,16M/MWasher,lock,16m/m; |
420B1611 |
from US $3.33 |
||
| replacement | |||||
|
21
|
21
420AA1611 WASHER,LOCK,16M/MWasher,lock,16m/m; |
420AA1611 |
from US $2.53 |
||
|
22
|
22
551A0312 PIN DOWEL 3X12 |
551A0312 |
from US $0.45 |
||
|
23
|
23
551A0608 PIN,DOWEL,6X8Pin,dowel,6x8; |
551A0608 |
from US $2.38 |
||
|
24
|
24
92022-170 WASHER-THRUSTWasher-thrust; |
92022-170 |
from US $6.18 |
||
